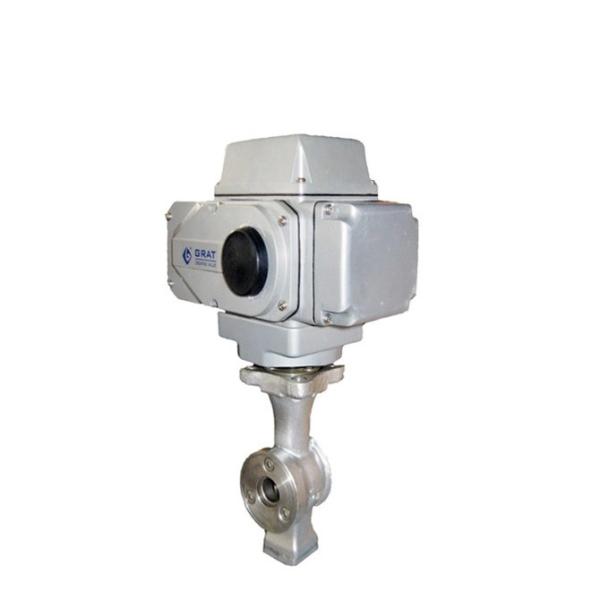

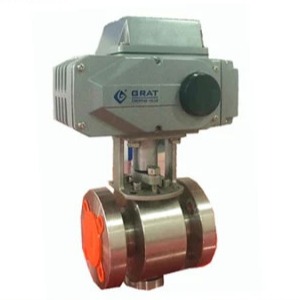

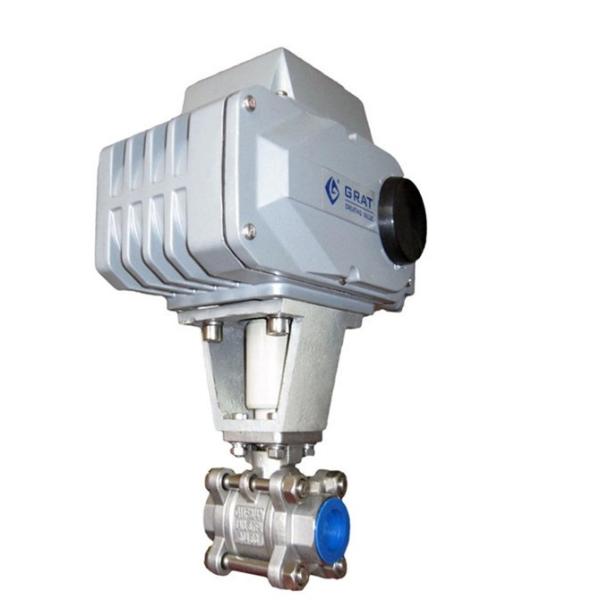

Miniature Electric Ball Valve
Miniature Electric Ball Valve
Miniature Electric Ball Valve
Miniature Electric Ball Valve
Miniature Electric Ball Valve
Miniature Electric Ball Valve
Miniature Electric Ball Valve
Miniature Electric Ball Valve
Miniature Electric Ball Valve
Miniature Electric Ball Valve
Specifications
Brand Name :
GRAT
Model Number :
EDN10/15/20/25/32
Certification :
CCC, ISO, CE
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
10000 Per Month
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Price :
USD $100.00/ Piece
Certifications :
CE/ISO/CNAS
Media :
Oil
Material :
Stainless Steel
Connection Form :
Flange
Driving Mode :
Electric
Nominal Pressure :
PN1.0-32.0MPa
Channel :
Straight Through Type
Type :
V Type Ball Valve
Temperature :
Normal Temperature
Application :
Industrial Usage, Water Industrial Usage, Water, Oil, Nitric Acid, Acetic Acid etc.
Operating Pressure :
Pn16
Dead Zone :
Less Than 0.2%
Body Material :
SUS304\SUS316
Applicable Medium :
Air-Conditioning System, Fire-Extinguishing System
Specification :
CE, TUV, ISO, customerized
Structure :
Flexible Ball Valve
Function :
Relief Valve
Standard :
DIN
Valve Size :
Dn10/Dn15/Dn20/Dn25/Dn32
Modulation Accuracy :
Less Than 0.3%
Action Mode :
Switch to Cut off
SUS304\SUS316 :
Casting Aluminum Alloy
HS Code :
8537109090
Description

Miniature Electric Ball Valve


Product Description:

Miniature Electric Ball Valve/Flange/Ball Valve

Description:

This EZ series miniature ball valve with small volume is applied in the technical occasion where the installation
size and the volume are restricted. The series valves are successfully used in many industrial fields such as
air conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instruments,
smoke sampling and so on.

Features:

* More than 100,000 operation life without fault, keep your system operating safely and reliably

* The valve with ultra-miniature volume weights 1.2Kg, whose height is less than 120mm, make it easy to be installed at any direction of the pipe.

* The valve owns a self-cleaning function, which can effectively guarantee the piping circulating.

* The simple channel, compared with the S channel structure of solenoid valve, has small flow resistance and no block.

* This valve has the self-lock function. (Self-keeping valve position).

* The valve with simple structure and reliable performance is widely instead of various solenoid valves with small diameter.

* With the output signal of fully open & fully shut.

Specification:

Valve size DN10/DN15/DN20/DN25
Power supply DC24V,AC110V,AC220V
Actuator torque/material 20Nm/Cast aluminum alloy
Temp. 0~120ºC
Ambient temp. -30ºC-60ºC
Body rating 0.1~6.4MPa
Purpose On-off
Action time 10-15s
Application condition air conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instruments, smoke sampling
End connection NPT,flange,weld,clamp
Seal type Soft seat
Body material SUS304,SUS316
Seal ring material EPDM,PTFE
Protection level IP67
Installation angle Install it in any angle. (Prefer to horizontal or inclined installation to extend the service life.)

Size

Miniature Electric Ball Valve

DN ΦD L Pipe thread H1 H2 W1 W2
10 10 60 3/8″ 152 38.8 128 79
15 15 75 1/2″ 152 38.8 128 79
20 20 80 3/4″ 159 45.4 128 79
25 25 90 1″ 169 55.8 128 79

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
