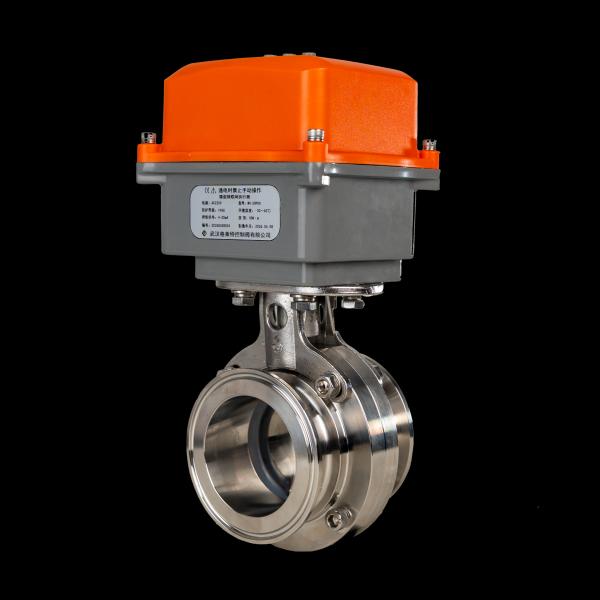

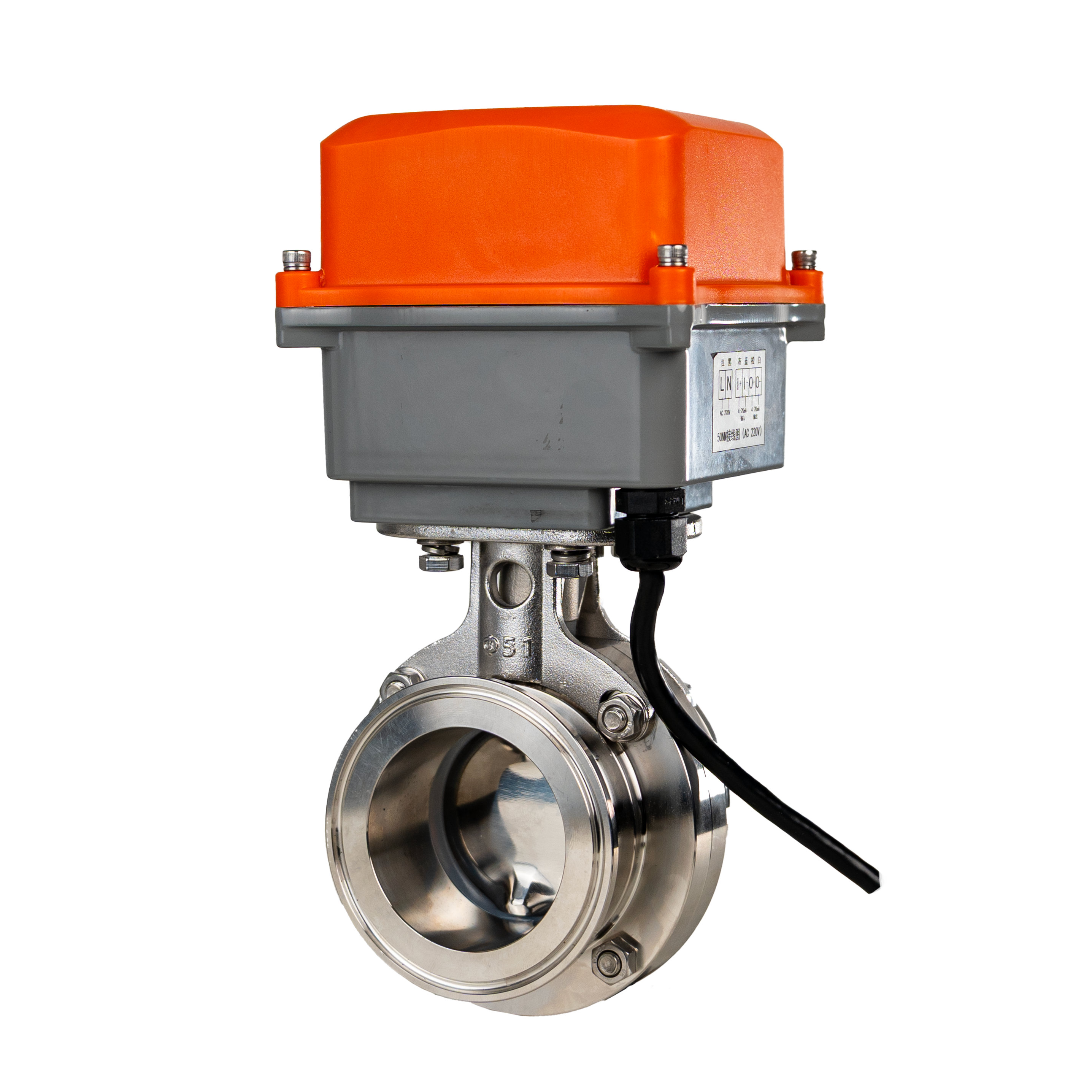

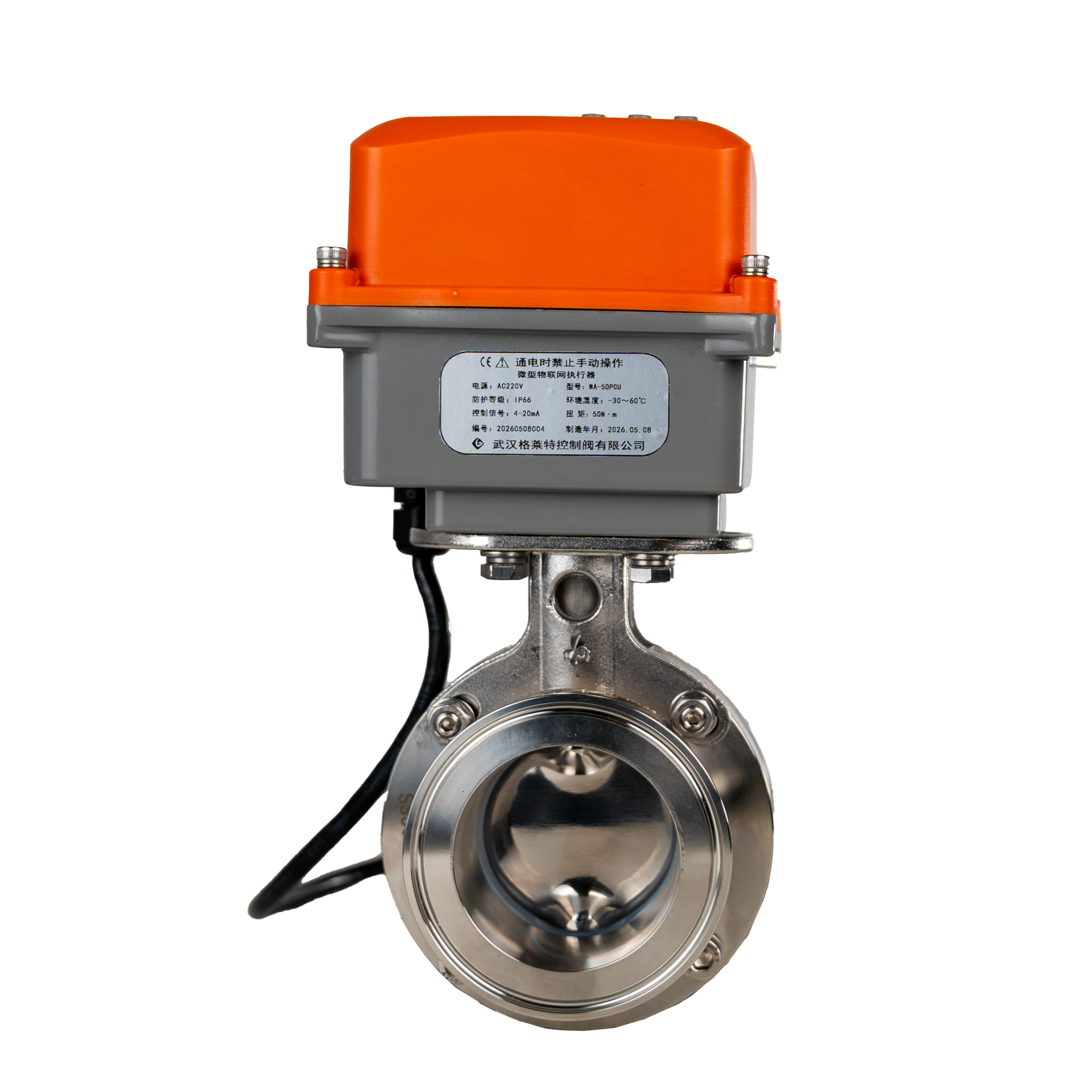

Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Specifications
Supply Ability :
1000
Valve Materal :
SS304/316
Media :
Water / Glycol
Duty Cycle :
100% ED (Continuous)
Model Number :
EB-50
Certification :
CE, RoHS, SIL
Driving Mode :
Electric
Price :
1
MOQ :
1
Modulation Accuracy :
Less Than 0.3%
Payment Terms :
T/T
Mounting Type :
Direct Mount / Flange Mount
Operating Temperature :
-20°C to +60°C
Place of Origin :
China
Media Temperature :
0-120℃
Hysteresis :
<0.5%
Brand Name :
GRAT
Description
Tri-Clamp Butterfly Valve with IoT Mini Actuator for CDU Liquid Cooling Smart Control
This IoT clamp ball valve is made of food-grade sanitary stainless steel. Adopting a tri-clamp quick-fit structure, it enables easy installation and disassembly with no dead corners. Equipped with an IoT communication module, it supports remote on-off control via mobile phones and cloud platforms, and real-time collection of pressure and valve opening/closing status data. It features excellent sealing performance, corrosion resistance and high pressure resistance. With wiring-free installation and low power consumption, it delivers long battery life. It is widely applicable to intelligent fluid control scenarios in water supply, chemical, food, pharmaceutical and agricultural irrigation pipeline systems.
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Key Features
  • IoT Intelligent Management & Control: Supports remote wireless monitoring, flow regulation, status feedback and fault alarm.
  • Tri-clamp Quick-install Design: No complex connection required, easy to assemble and disassemble; suitable for narrow computer room spaces and rapid deployment.
  • Gas-tight Zero Leakage: Excellent sealing performance prevents leakage of liquid cooling media, ensuring system safety and stability.
  • Low Power & Long-term Operation: Brushless motor features low power consumption and low noise, supporting 7×24-hour non-stop operation with long service life.
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
Main Parameters
Parameter Specification
Working Power Supply AC220V / DC24V
Nominal Diameter DN15~DN150
Medium Temperature -15~100℃
Working Pressure PN10
Control Mode Regulating / On-off Control
Connection Type Clamp Connection (ISO2852-1993)
Valve Body Material 304 Stainless Steel
Seat / Seal Material EPDM
Seal Type Soft Seal
Applicable Medium Food, Pharmaceutical, Chemical Industry, etc.
Protection Grade IP65
Design & Manufacturing Standard GB/T12237
Clamp Standard ISO2852-1993
Inspection & Test Standard GB/T26480-2011
Dimension Drawing
DN d K D L F H
DN15 9.5 25.4 12.7 74 9*9 37
DN20 17 50.5 22 100 9*9 41
DN25 22.2 50.5 25.4 120 9*9 46
DN32 28.6 50.5 32 130 9*9 49
DN40 34.9 50.5 38.1 140 9*9 54
DN50 47.6 64 51.5 165 11*11 67
DN65 59.5 77.5 63.5 190 11*11 86
DN80 72.2 91 76.2 215 14*14 98.5
DN100 85 106 89 225 14*14 110
DN125 100 119 108 260 17*17 137
DN150 125 145 133 290 22*22 165
Circuit Wiring Diagram
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
DC 24V
Tri-Clamp Butterfly Valve with IoT Mini Actuator for Smart Control and Corrosion Resistant Quick-install Design
AC 220V
