Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Specifications
Model Number :
WA-25
Delivery Time :
7 working days
Price :
1
Temperature Of Medium :
0-120℃
Place of Origin :
China
MOQ :
1
Connection :
Thread
Valve Structure :
2 Way
Payment Terms :
T/T
Certification :
ISO, CE, RoHS, SIL
Pressurerating :
PN16 to PN40
Brand Name :
GRAT
Supply Ability :
1000pcs/month
Medium :
Water, Oil, Gas
Material :
Stainless Steel 304/316
Valve Size :
Dn15-50
Description

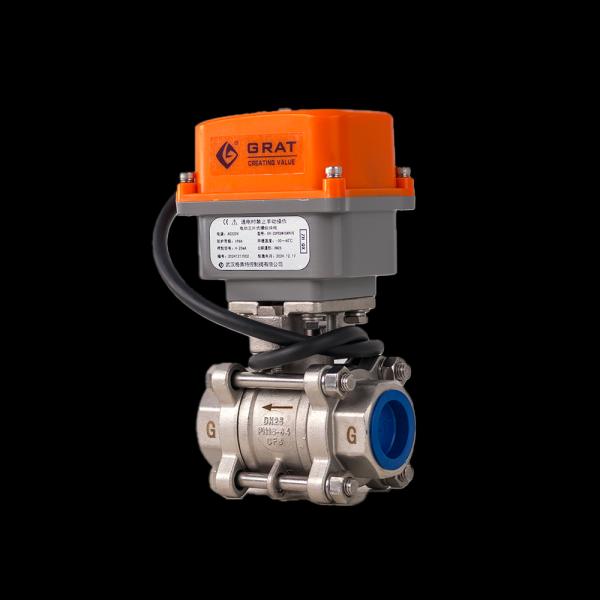

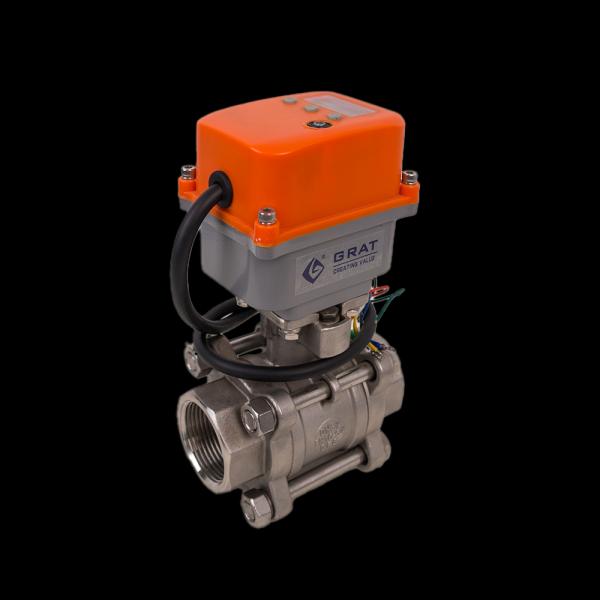

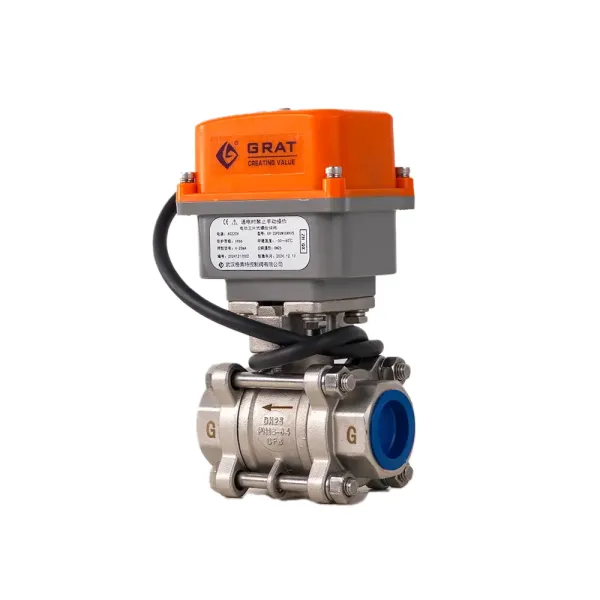

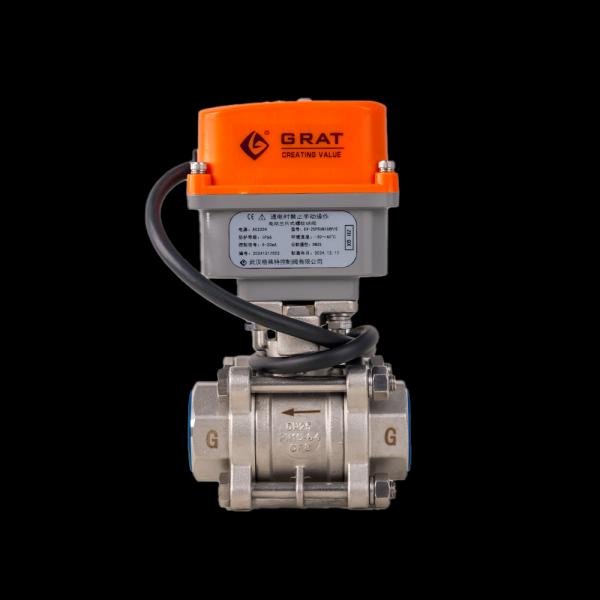

Miniature Electric 304/316 Stainless Steel Threaded Ball Valve
Automated On/Off and Flow Regulation in Chemical Fluids

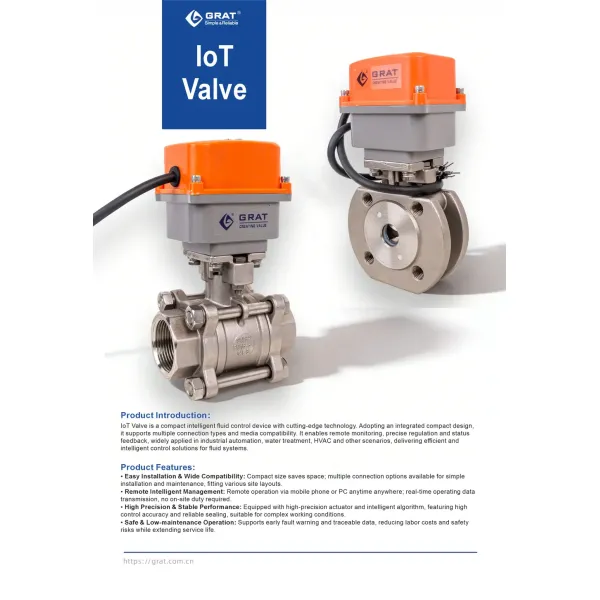

DN25 IoT Threaded Ball Valve
The electric threaded ball valve ensures rapid switching and reliable pipeline media shut-off. It is suitable for automation systems across various sectors including food, environmental, paper, chemical, and power industries.
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Product Overview
Engineered for high-pressure differentials and clog-prone environments, the electric threaded ball valve lock ensures rapid switching and reliable pipeline media shut-off. With superior operational performance and exceptional cost-efficiency, it significantly outperforms solenoid valve counterparts in demanding industrial applications.
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Key Features
  • Low power consumption and high efficiency: It only requires 10W of power, saving energy costs while maintaining efficient and stable operation.
  • Smooth speed regulation: Adopting PWM stepless speed regulation ensures stable actuator operation and provides more stable control.
  • High-performance motor: The built-in brushless motor with overload protection is stable, reliable and has a long service life.
  • Real-time parameter display: The OLED real-time displays status and parameter information in Chinese or English, providing real-time feedback and fault alarm information.
  • Precise control: The adjustable range is wide, from 30% to 100%, with control accuracy of 0.5%, precisely meeting control requirements of different applications.
  • Multiple feedback methods: Supports feedback methods of 4-20mA/0-10V/1-5V, ensuring accuracy of control.
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Main Parameters
Basic Parameters
Nominal Bore (DN) DN15～DN40
Operating Voltage AC220V, DC24V
Operating Temperature -30℃～220℃
Nominal Pressure PN1.0～1.6MPa
Flow Characteristic Quick opening
Physical Specifications
Connection Type Internal thread connection
Valve Body Materials WCB, SUS304 Stainless Steel, SUS316 Stainless Steel
Valve Core Materials SUS304 Stainless Steel, SUS316 Stainless Steel
Ball Valve Seal PTFE, PPL, etc.
Packing Material Graphite, PTFE
Actuator Seal Viton (FKM)
Actuator Material Cast aluminum alloy
Suitable Media
  • Neutral gases
  • Neutral liquids
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Standards Compliance
Design & Manufacturing GB12237-2007, API 6D
Product Inspection & Testing API 598

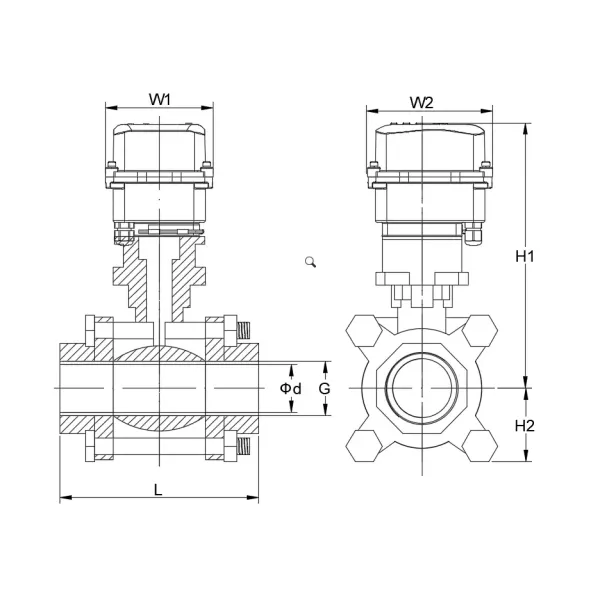

Installation Dimensions
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
Nominal Diameter (DN) L G Φd H2 H1 W1 W2
15 73 Thread Standard NPT, BSP, DIN, etc. 15 38 130 68.5 88.5
20 80 20 20 45 131.5 68.5 88.5
25 90 25 25 55 156 93 108
32 110 32 32 60 170 93 108
40 120 38 38 75 179 93 108
Circuit Wiring Diagram
DC 24V
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
AC 220V
Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids Miniature Electric 304/316 Stainless Steel Threaded Ball Valve for Automated On/Off and Flow Regulation in Chemical Fluids
