Specifications
Input Signal :
4-20mA, 0-10V, Modbus
Model Number :
EA-100-Ex
Standard Time :
30s to 45s
Place of Origin :
China
Control Mode :
On-off Type, Modulating Type
Price :
1
Brand Name :
GRAT
Supply Ability :
1000
Temperature :
-20℃~+60℃
Certification :
CE, RoHS, SIL
Delivery Time :
7 working days
Torquerange :
50 Nm to 5000 Nm
Explosion Proof :
Ex db ⅡC T6 Gb, Ex tb ⅢC T80℃ Db
MOQ :
1
Payment Terms :
T/T
IP Rating :
IP67
Insulation Resistance :
100 MΩ at 500 V DC
Description
Explosion Proof Electric Actuator - ATEX and IECEx Certified
Designed for hazardous and flammable locations with Ex db IIC T6 Gb & Ex tb IIIC T80℃ Db certifications
Product Overview
The explosion-proof actuator features specially designed casings, motors, and dedicated sealing components to prevent explosions caused by electric sparks or high temperatures. Certified with CNEx (Ex db ⅡC T6 Gb), it is widely used in hazardous areas including petrochemical plants, coal mines, and pharmaceutical facilities for controlling valves, pipelines, and equipment.
Explosion Proof Electric Actuator ATEX and IECEx Certified, Ex db IIC T6 Gb & Ex tb IIIC T80℃ Db for Hazardous and Flammable Locations
GRAT explosion proof electric actuator ensures maximum safety and effective protection against potential hazards. Engineered to withstand high temperatures, pressure, and flammable substances, it provides reliable performance in hazardous environments with Ex db ⅡC T6 Gb Ex tb IIIC T80°C Db certification.
Product Structure
The GRAT explosion-proof actuator features a robust aluminum alloy and stainless steel housing for maximum durability. Designed with an explosion-proof enclosure, it integrates a heavy-duty gear set, limit switch assembly, and potentiometer, providing reliable transmission and multiple feedback options for precise valve control.
Explosion Proof Electric Actuator ATEX and IECEx Certified, Ex db IIC T6 Gb & Ex tb IIIC T80℃ Db for Hazardous and Flammable Locations
Key Features
  • Power Supply: AC 24V/110V/220V/380V, DC 24V
  • High Efficiency: Low power consumption with high torque output
  • Torque Range: 50-600N*m, actuation time 20-45S
  • Ingress Protection: Dustproof and waterproof with IP67 rating
  • High Accuracy: Hysteresis <0.5%, Dead Zone <0.5%, Feedback Error <0.5%
  • Valve Adaptability: 0~90° rotation, compatible with ball valves and butterfly valves
  • Control Signals: 4-20mA, 0-10V, Modbus communication
  • Optional Functions: Dehumidification heater, passive contact switch, over-torque protection

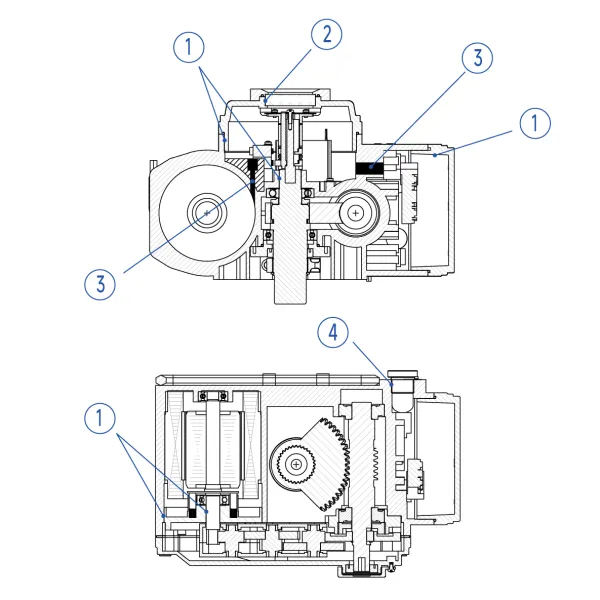

Explosion-proof Performance
Explosion Proof Electric Actuator ATEX and IECEx Certified, Ex db IIC T6 Gb & Ex tb IIIC T80℃ Db for Hazardous and Flammable Locations
Flameproof Joint
Width of flameproof joint: L ≥ 12.5mm
Gap of flameproof joint: i ≤ 0.15mm
Epoxy Resin Adhesive
Over 10mm epoxy resin bond length ensures strength and sealing performance
Encapsulation
Over 20mm epoxy resin potting in cable through-holes
Threaded Flameproof Joint
Length of Thread Engagement: ≥ 8mm
Number of Engaged Threads: ≥ 5
Explosion Proof Electric Actuator ATEX and IECEx Certified, Ex db IIC T6 Gb & Ex tb IIIC T80℃ Db for Hazardous and Flammable Locations
Technical Specifications
General Specifications
Power Type Electric
Material Aluminum Alloy, Stainless Steel
Certification CCC, ISO, CE
Torque Range 50Nm, 100Nm, 200Nm, 400Nm, 600Nm
Power Supply AC 24V/110V/220V/380V, DC 24V
Ingress Protection IP67
Control Mode On/off, Positioning, Throttling, Modulating
Input/Output 4-20mA, 0-10V, Modbus
Valve Connection ISO5211, DIN3337, VDI/VDE 3845, Flanged, Wafer
Model Representation
Explosion Proof Electric Actuator ATEX and IECEx Certified, Ex db IIC T6 Gb & Ex tb IIIC T80℃ Db for Hazardous and Flammable Locations
EA-600-Ex indicates an electric explosion-proof actuator with an output torque of 600 N*m.
Torque & Power Specifications
Model EA-50-Ex EA-100-Ex EA-200-Ex EA-400-Ex EA-600-Ex
Output Torque 50N*m 100N*m 200N*m 400N*m 600N*m
Ball Valve Adaptation DN15-40 DN50-65 DN65-80 DN80-100 DN150-200
Butterfly Valve Adaptation DN32-50 DN50-125 DN150-200 DN200-250 DN300
Action Time 20S 30S 30S 30S 45S
Rotation Angle 0~90°
Motor Power AC24V 10W 25W 0 0 0
Motor Power AC110V 10W 25W 40W 90W 90W
Motor Power AC220V 10W 25W 40W 90W 90W
Motor Power AC380V 6W 15W 30W 40W 40W
Motor Power DC24V 13W 25W 40W 70W 70W
Weight 4.5Kg 5.0Kg 9.0Kg 9.5Kg 10.0Kg
Additional Specifications
Insulation Resistance 100 MΩ at 500 V DC
Withstand Voltage 1,500 V AC for 1 minute
Protection Rating IP67
Explosion-proof Rating Ex db ⅡC T6 Gb
Installation Orientation 360° adjustable
Electrical Interface 2-M20x1.5 explosion-proof plugs
Control Circuit Type S/MS/PIU/SP/PCU/CPT/G/H
Optional Features Dehumidification heater, Passive contact switch, Over-torque protection, Field protection unit
Testing Standard JB/T8219-2016, GB/T 3836.1-2021, GB/T 3836.2-2021

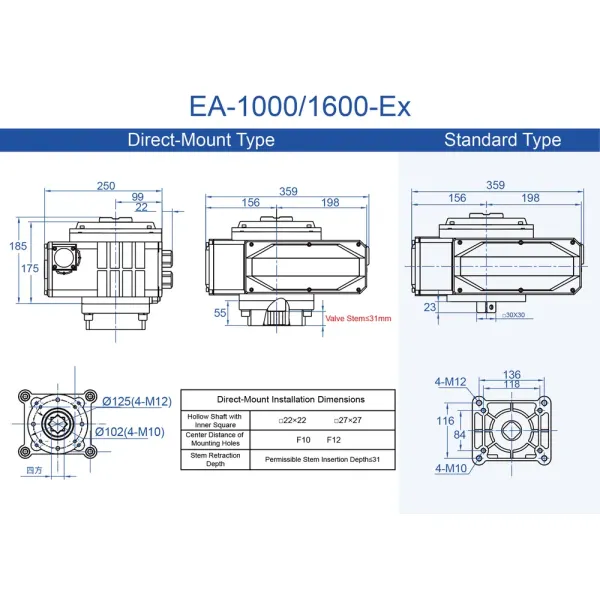

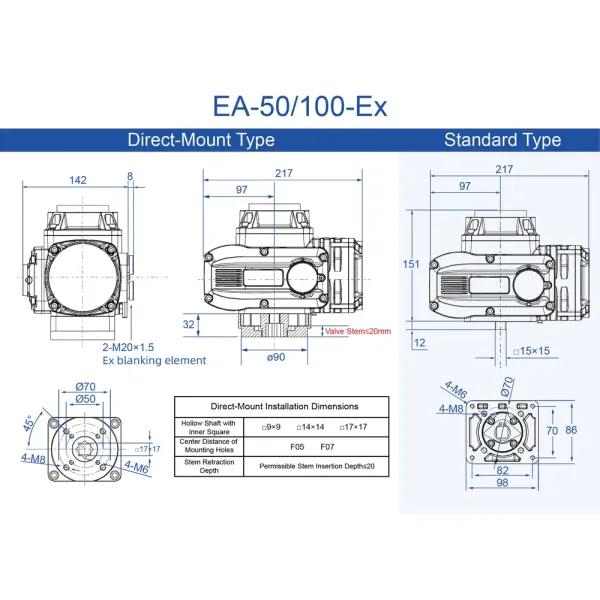

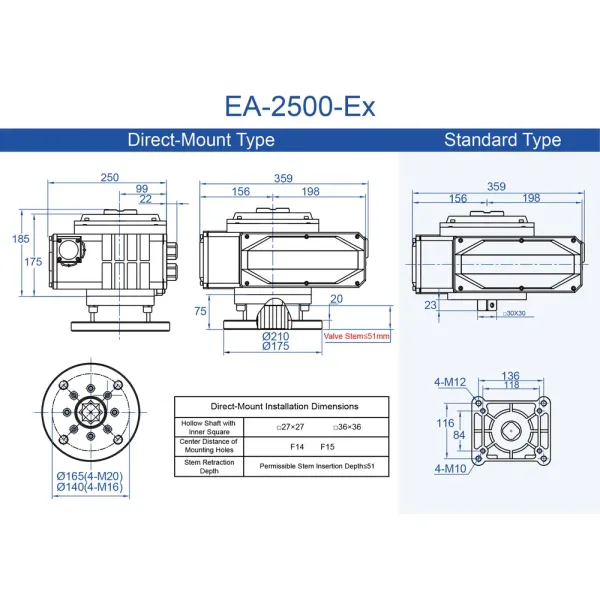

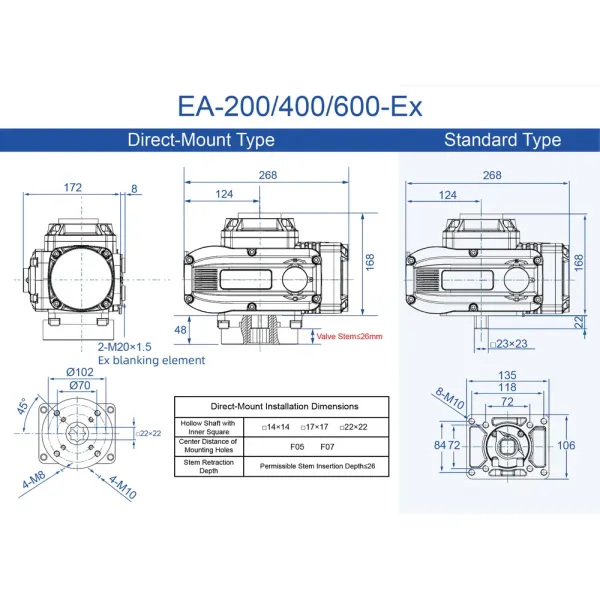

Dimension Drawings
Explosion Proof Electric Actuator ATEX and IECEx Certified, Ex db IIC T6 Gb & Ex tb IIIC T80℃ Db for Hazardous and Flammable Locations Explosion Proof Electric Actuator ATEX and IECEx Certified, Ex db IIC T6 Gb & Ex tb IIIC T80℃ Db for Hazardous and Flammable Locations Explosion Proof Electric Actuator ATEX and IECEx Certified, Ex db IIC T6 Gb & Ex tb IIIC T80℃ Db for Hazardous and Flammable Locations Explosion Proof Electric Actuator ATEX and IECEx Certified, Ex db IIC T6 Gb & Ex tb IIIC T80℃ Db for Hazardous and Flammable Locations Explosion Proof Electric Actuator ATEX and IECEx Certified, Ex db IIC T6 Gb & Ex tb IIIC T80℃ Db for Hazardous and Flammable Locations
