Specifications
Hysteresis :
<0.5%
Model Number :
EV-25
Duty Cycle :
100% ED (Continuous)
Price :
1
Media :
Water / Glycol
Certification :
CE, RoHS, SIL
Operating Temperature :
-20°C to +60°C
Place of Origin :
China
Modulation Accuracy :
Less Than 0.3%
Media Temperature :
0-120℃
MOQ :
1
Mounting Type :
Direct Mount / Flange Mount
Payment Terms :
T/T
Driving Mode :
Electric
Supply Ability :
1000
Valve Materal :
SS304/316
Brand Name :
GRAT
Description

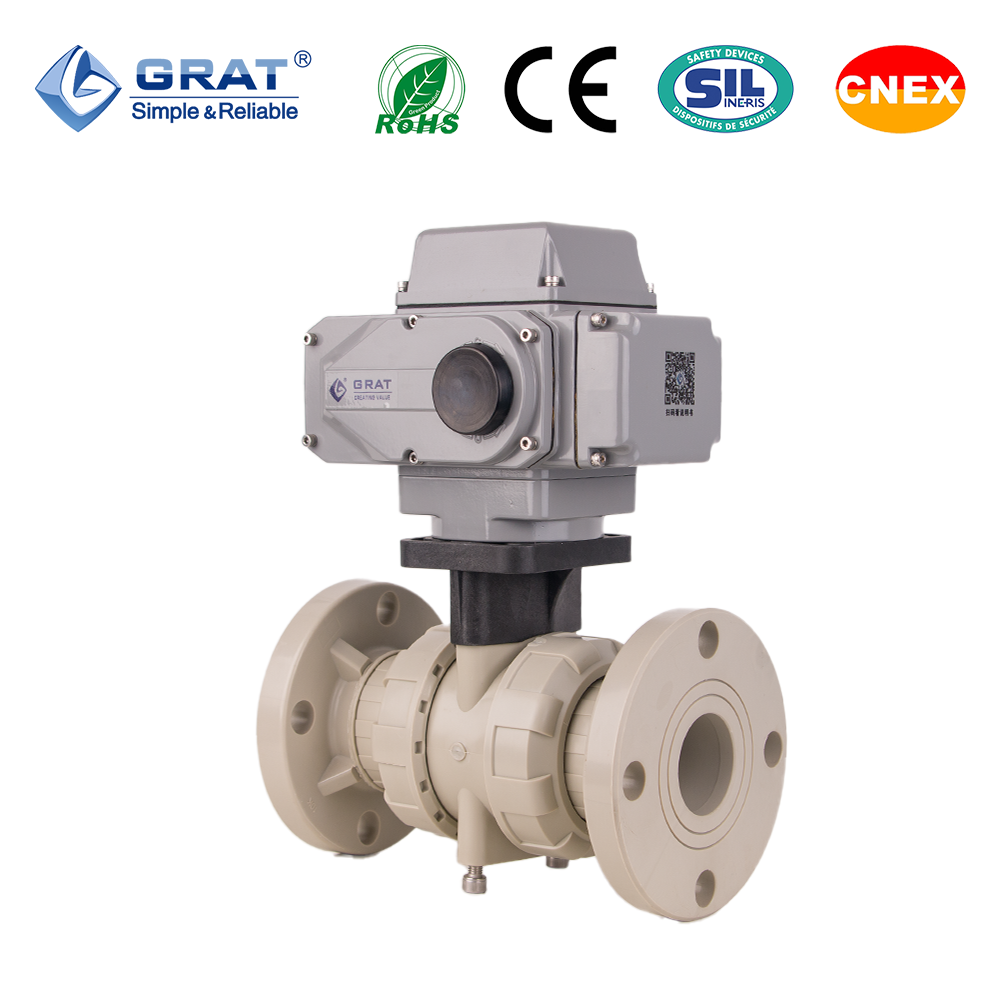

Plastic Flange Ball Valve with IP67 Motorized Actuator
Electric plastic anti-corrosion ball valves are engineered for industrial applications involving acid-base and chemical solution systems. These valves feature lightweight construction and exceptional corrosion resistance, making them ideal for pure water, drinking water, drainage, sewage, brine, and seawater pipelines.
Plastic Flange Ball Valve UPVC CPVC PVC with IP67 Motorized Actuator 4-20mA 0-10V for corrosive chemical liquor and lightweight pipeline
Product Overview
Manufactured from highly corrosion-resistant UPVC and CPVC materials, these electric ball valves withstand strong acids and alkalis without rust or scaling. The union connection design facilitates easy disassembly and maintenance, while the hygienic, non-toxic material meets national health standards. The smooth inner wall minimizes friction resistance and adhesion during fluid transport, and electric actuation enables precise remote control for water treatment, chemical processing, pharmaceutical production, and food and beverage applications.
Plastic Flange Ball Valve UPVC CPVC PVC with IP67 Motorized Actuator 4-20mA 0-10V for corrosive chemical liquor and lightweight pipeline
Key Features
  • Excellent corrosion resistance: UPVC/CPVC materials resist strong acids, alkalis, and salt spray corrosion
  • Lightweight & high strength: Valve body weighs only 1/5 of steel pipes and 1/6 of copper pipes
  • Hygienic & non-toxic: Meets national health standards for drinking water and food-grade applications
  • Low flow resistance: Smooth inner wall reduces friction and adhesion
  • Easy maintenance: Union connection design allows quick disassembly
  • Flexible electric control: Supports On-Off or Modulating control modes
  • Wide application range: Suitable for water, air, oil, and corrosive chemical liquids
Technical Specifications
Parameter Specification
Nominal Diameter (DN) DN15 ~ DN100
Operating Power Supply AC110V, AC220V, AC380V, DC24V
Medium Temperature -15°C ~ 60°C (non-freezing condition)
Ambient Temperature -30°C ~ 60°C
Nominal Pressure PN0.1 ~ 1.6MPa
Control Mode On-Off or Modulating Control
Connection Type Flange Connection, Double Union Connection
Sealing Type Soft Seal
Valve Body Material UPVC, CPVC
Ball Core Material UPVC, CPVC
Shaft Material UPVC
O-Ring Material EPDM
Ball Seal Ring Material PTFE
Protection Class IP67
Installation Method Mountable at any angle (horizontal or inclined installation recommended)
Design & Manufacturing Standard API 6D
Flange Standard ANSI B16.5, JIS B2239
Face-to-Face Standard GB/T 12221-2005
Inspection Standard API 598
Suitable Media
  • Water, Pure Water, Drinking Water
  • Air
  • Oil
  • Acids, Alkalis, Corrosive Chemical Liquids
  • Food-grade Fluids, Pharmaceutical Process Fluids
  • Industrial Waste Liquids, Seawater, Brine
Dimension Drawings
Below are the main installation dimensions for flange-type and double union-type electric plastic anti-corrosion ball valves.

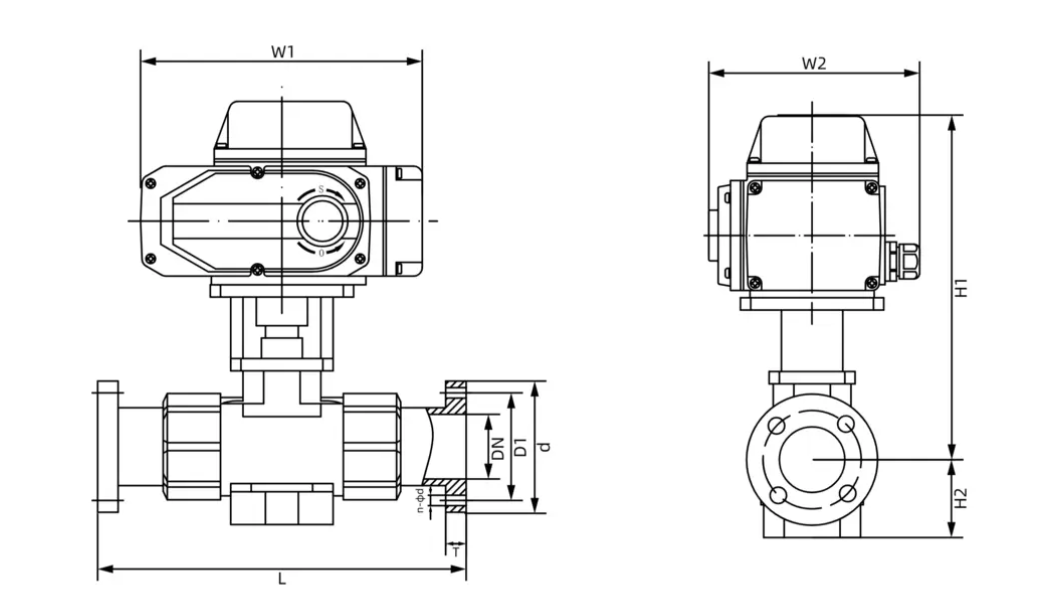

Installation Dimensions of Flanged Plastic Corrosion-Resistant Electric Ball Valve
Plastic Flange Ball Valve UPVC CPVC PVC with IP67 Motorized Actuator 4-20mA 0-10V for corrosive chemical liquor and lightweight pipeline

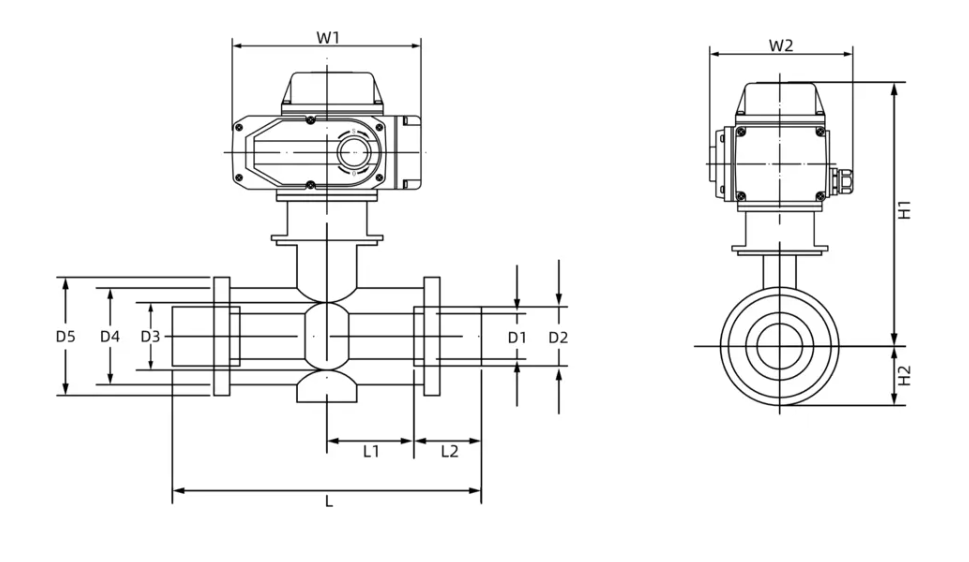

Installation Dimensions of Double Union Plastic Corrosion-Resistant Electric Ball Valve
Plastic Flange Ball Valve UPVC CPVC PVC with IP67 Motorized Actuator 4-20mA 0-10V for corrosive chemical liquor and lightweight pipeline
Contact Us for Dimensional Drawing and GRAT Electric Valve Selection Guide Now!
