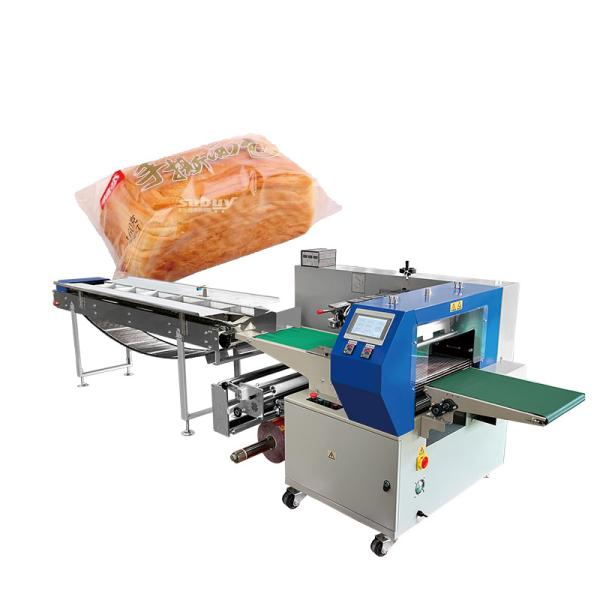

Automatic Pillow Bag Packing Machine 30-80 Packs/Min for Food Packaging
Automatic Pillow Bag Packing Machine 30-80 Packs/Min for Food Packaging
Automatic Pillow Bag Packing Machine 30-80 Packs/Min for Food Packaging
Automatic Pillow Bag Packing Machine 30-80 Packs/Min for Food Packaging
Automatic Pillow Bag Packing Machine 30-80 Packs/Min for Food Packaging
Automatic Pillow Bag Packing Machine 30-80 Packs/Min for Food Packaging
Automatic Pillow Bag Packing Machine 30-80 Packs/Min for Food Packaging
Automatic Pillow Bag Packing Machine 30-80 Packs/Min for Food Packaging
Automatic Pillow Bag Packing Machine 30-80 Packs/Min for Food Packaging
Automatic Pillow Bag Packing Machine 30-80 Packs/Min for Food Packaging
Specifications
Brand Name :
TOUPACK
Model Number :
Pillow Bag Packing Machinery
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
30 days
Packaging Details :
Wooden crate packaging
Product Name :
Pillow Bag Packing Machinery
function :
Wrapping, packaging
Packaging Efficiency :
Adjustable speed (30-80 packs/min), frequency conversion speed control, stable operation at high speed
Specification Adaptability :
Supports multiple packaging specifications (length 50-300mm, etc.), compatible with heat-sealable films like OPP/PE
Automatic Control :
PLC (Programmable Logic Controller) + touchscreen operation, automatic feeding, sealing and cutting, with fault alarm
Sealing Quality :
Dual-temperature zone heat sealing, strong and airtight seals, flat cutting surface
Material Compatibility :
Suitable for food/daily necessities/pharmaceuticals, etc.; 304 stainless steel used for material-contacting parts
Description
Automatic Vegetables/Fresh Fruit Pillow Bag Packing Machinery
1. Triple servo control enables instant bag length setting and cutting without idle adjustment, achieving precise results in one step to save time and film;
2. High-sensitivity photoelectric colour mark tracking with digital input for sealing position ensures greater accuracy;
3. Integrated temperature control module featuring independent PID regulation delivers precise temperature management, optimally suited for diverse packaging materials;
4. Touchscreen interface facilitates swift and convenient parameter configuration;
5. Self-diagnostic fault function with clear fault display;
6. Position-stop mechanism prevents blade adhesion and film wastage;
7. Simplified mechanical structure ensures reliable operation and straightforward maintenance.

Our high-performancee is designed for noodles, bread, and daily necessities. With fast speed, reliable sealing, and easy operation, it ensures product freshness while improving production efficiency. Versatile and cost-effective, it’s the ideal packaging solution for both food and non-food industries. #packaging solutions #packing machine manufacturer #pillow packing machine #pillow wrapping machine #packing machine manufacturer

Model
TY-600X
TY-800
Film width
Max 600mm
Max 800mm
Bag length
100-6000mm
100-6000mm
Bag width
90-220mm
120-300mm
Product height
10-120mm
10-110mm
Film roll diameter
Max 320mm
Max 320mm
Packaging speed
10-25 bag/min
10-80 bag/min
Power supply
220V, 50/60HZ, 3.0KW
220V, 50/60HZ, 4.1KW
Size
(L)3948X(W)1081X(H)1463mm
(L)4412X(W)1200X(H)1153mm
Weight
650kg
750kg
