Specifications
Brand Name :
LiuGong
Model Number :
862H
Certification :
CE, ISO9001, ISO14001, Special Equipment Manufacturing License / CE、ISO9001、ISO14001
Place of Origin :
China
MOQ :
1 unit (customizable according to user needs )
Price :
28,500 – 35,800 USD (Contact us for a detailed quote)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30-50 Units 30 days
Delivery Time :
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Packaging Details :
Nude packaging / Frame packaging (for sea transportation, to avoid damage during transportation
Description

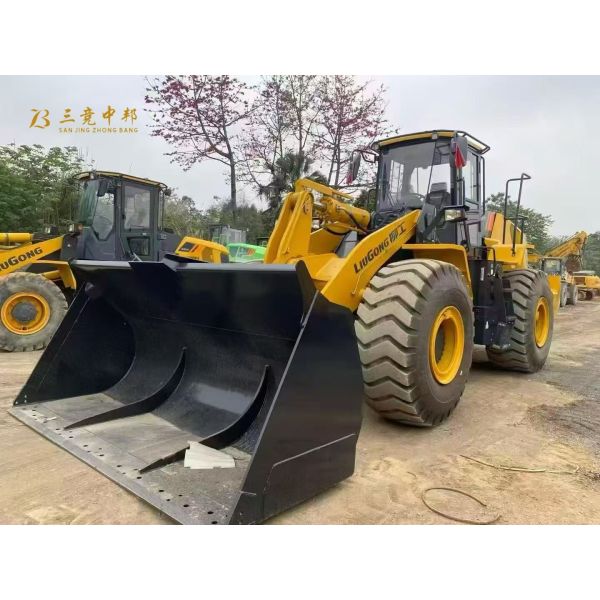

LIUGONG 856H 5.5Ton Wheel Loader Front End Loader Construction Machinery

1. Basic Performance


  • Model: LIUGONG 856H
  • Rated Load: 5,500 kg
  • Operating Weight: 17,500 kg
  • Standard Bucket Capacity: 3.0 m³
  • Bucket Range: 2.7 – 5.6 m³
  • Max. Breakout Force: 180 kN
  • Total Cycle Time (Lift+Dump+Lower): 9.7 s
  • Max. Travel Speed: 38 km/h
  • Max. Dump Clearance: 3,480 mm

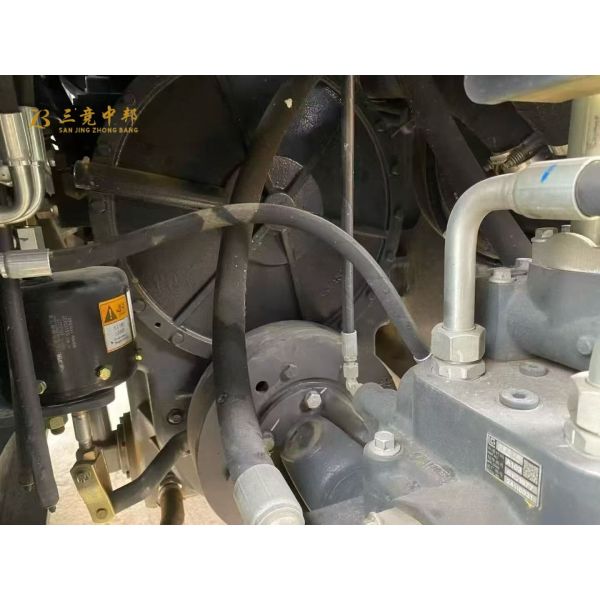

2. Engine ( Coms)


  • Engine Model: Coms QSL9.3
  • No. of Cylinders: 6-cylinder inline
  • Aspiration: Turbocharged & Air-to-Air Intercooled
  • Displacement: 9.3 L
  • Rated Power: 170 kW @ 2200 rpm
  • Emission: China IV / Optional Tier 3 / Stage IIIA

3. Transmission & Drivetrain


  • Transmission: Electro-hydraulic powershift
  • Speeds: Fwd 4 / Rev 3
  • Torque Converter: Single-stage, three-element
  • Service Brake: Wet disc brake, hydraulic
  • Parking Brake: Electro-hydraulic drum brake
  • Steering Angle: ±38°

4. Hydraulic System


  • System: Dual-pump confluence, priority steering
  • Working Pressure: 20.7 MPa
  • Control: Pilot control
  • Fuel Tank Capacity: 270 L
  • Hydraulic Tank Capacity: 180 L

5. Dimensions


  • Overall Length (bucket down): 8,565 mm
  • Overall Width (over tires): 2,970 mm
  • Cab Height: 3,500 mm
  • Wheel Base: 3,370 mm
  • Ground Clearance: 430 mm

6. Features


  • ROPS/FOPS safety cab

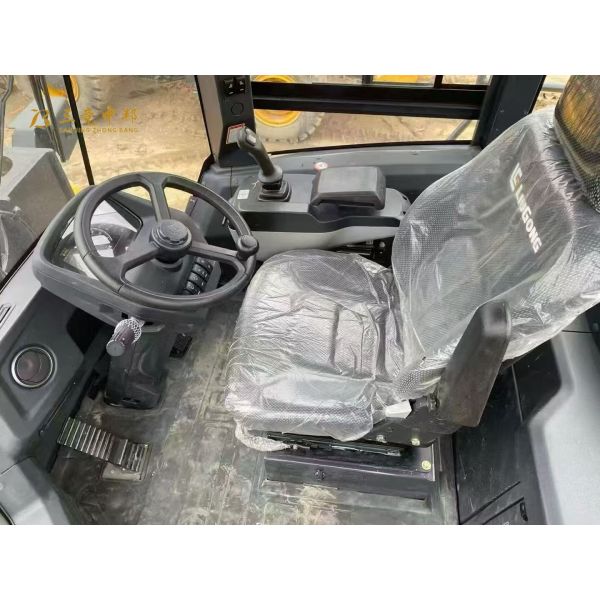

  • Air-conditioned, low-noise, pressurized cab
  • Reinforced frame & boom for heavy-duty
  • Easy maintenance layout
  • Multi attachments available: bucket, fork, grapple, snow blade
