SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
Specifications
Brand Name :
Shantui
Model Number :
SD22
Certification :
CE, ISO9001, ISO14001, Special Equipment Manufacturing License / CE、ISO9001、ISO14001
Place of Origin :
China
MOQ :
1 unit (customizable according to user needs )
Price :
14300~21430 USD(contact us for detailed quotation)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
50 Units 30 days
Delivery Time :
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Packaging Details :
Nude packaging / Frame packaging (for sea transportation, to avoid damage during transportation
Apply :
Inline water-cooled four-stroke overhead valve direct injturbocharged diesel engine
Blade Width :
3.0-6.0 meters
Tracktype :
Steel Tracks
Hs Code :
842122
Color :
yellow
Warranty :
2 Years
Part Number :
10y-15-07000
Function :
Fine Filtration
Hydraulic System :
Closed-center load sensing
Cabin :
Air-conditioned, ROPS/FOPS certified
Ground Clearance :
405mm
Moving Type :
Crawler Bulldozer
Description
SD22 Shantui Yellow Crawler Bulldozer for dry land
Basic Information
Product Name SD22 Crawler Bulldozer
Brand Shantui
Equipment Type Crawler Bulldozer
Product Status Used
Origin China
Core Performance Specifications
Operating Weight 16,860kg
Rated Power 147 kW (197 hp)
Engine Speed 2000 rpm
Maximum Blade Push Force 130 kN
Travel Speed (Forward/Reverse) 0-10 km/h
Climbing Ability 30%
Engine & Hydraulic System
Engine Model Inline water-cooled four-stroke overhead valve direct injturbocharged diesel engine


Cooling Method Water-cooled
Hydraulic System Type Full Hydraulic Load Sensing


Hydraulic Tank Capacity 190L

Dimensions & Capacities
Overall Length 5495 mm
Overall Width 3725 mm
Overall Height 3402 mm
Track Width 560 mm
Minimum Ground Clearance 405 mm
Fuel Tank Capacity 262 L
Additional Features
Travel Mechanism Mechanical/Hydraulic Transmission
Cab Enclosed Cab, ROPS Certified
Air Conditioning Heating & Cooling AC
Control Mode Hydraulic Pilot Control

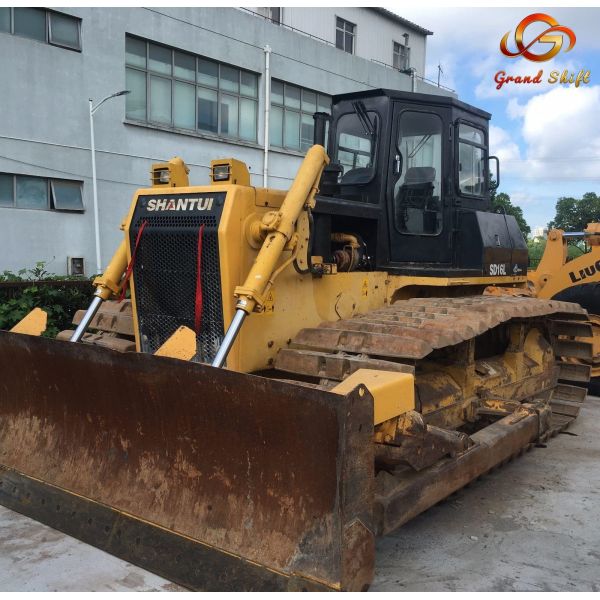

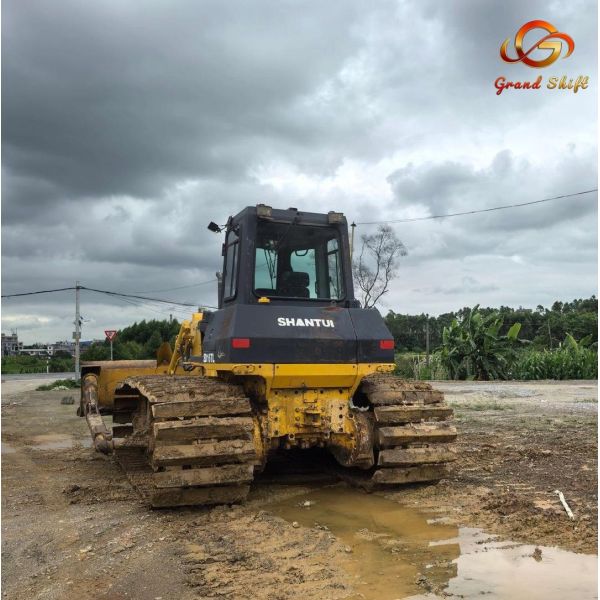

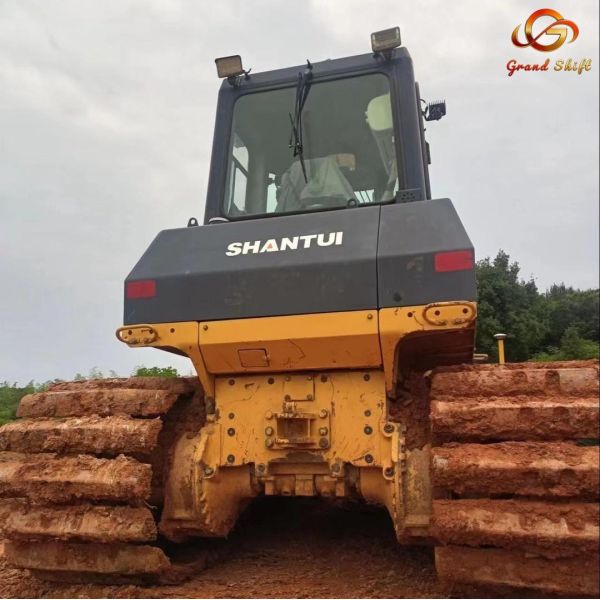

Product Images




SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin

SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin

SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin

  • Excavator Parts
    SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
    SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin

    Packaging & Shipping

    SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
    SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
SD22 Shantui Yellow Crawler Bulldozer for dry land and ROPS/FOPS Certified Cabin
