Specifications
Brand Name :
SANY
Model Number :
HBT9028CH
Certification :
CE
Place of Origin :
China
MOQ :
1 unit (customizable according to user needs )
Price :
26,000 – 32,000USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
50 Units 30 days
Delivery Time :
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Packaging Details :
Nude packaging / Frame packaging (for sea transportation, to avoid damage during transportation
MOQ :
1 piece
Origin :
China
Condition :
Used
Model :
HBT9028CH
Rated power :
2 × 180 kW（2200 rpm）
Engine :
Dual Diesel Engines
Hopper Capacity :
0.7 m³
Overall Weight :
11,910 kg
Dimensions :
7508 × 2272 2750 mm
Description
Product Specifications

  • SANY HBT9028CH Diesel Engine Trailer Pump:

    I. Basic Information

    - Model: HBT9028CH-5S (Diesel Version, S-Valve Ultra-Hh Pressure)
    - Overall Weight: 11,910 kg
    - Dimensions: 7508 × 2272 2750 mm (L×W×H)
    - Hopper Capacity: 0.7 m³
    - Loading Height: 1,420 mm

    II. Pumping Performance

    - Theoretical Output (Low Pressure/High Pressure): 95 / 70 m³/h
    - Maximum Theoretical Pumping Pressure (Low Pressure/High Pssure): 19 / 28 MPa
    - Delivery Cylinder: Φ200 × 2100 mm
    - Maximum Aggregate Size: 50 m (Gravel) / 40 mm (Crushed Stone)
    - Delivery Pipe Diameter: Φ150 / Φ125 mm
    - Applicable Sump: 100～230 mm

    III. Power System

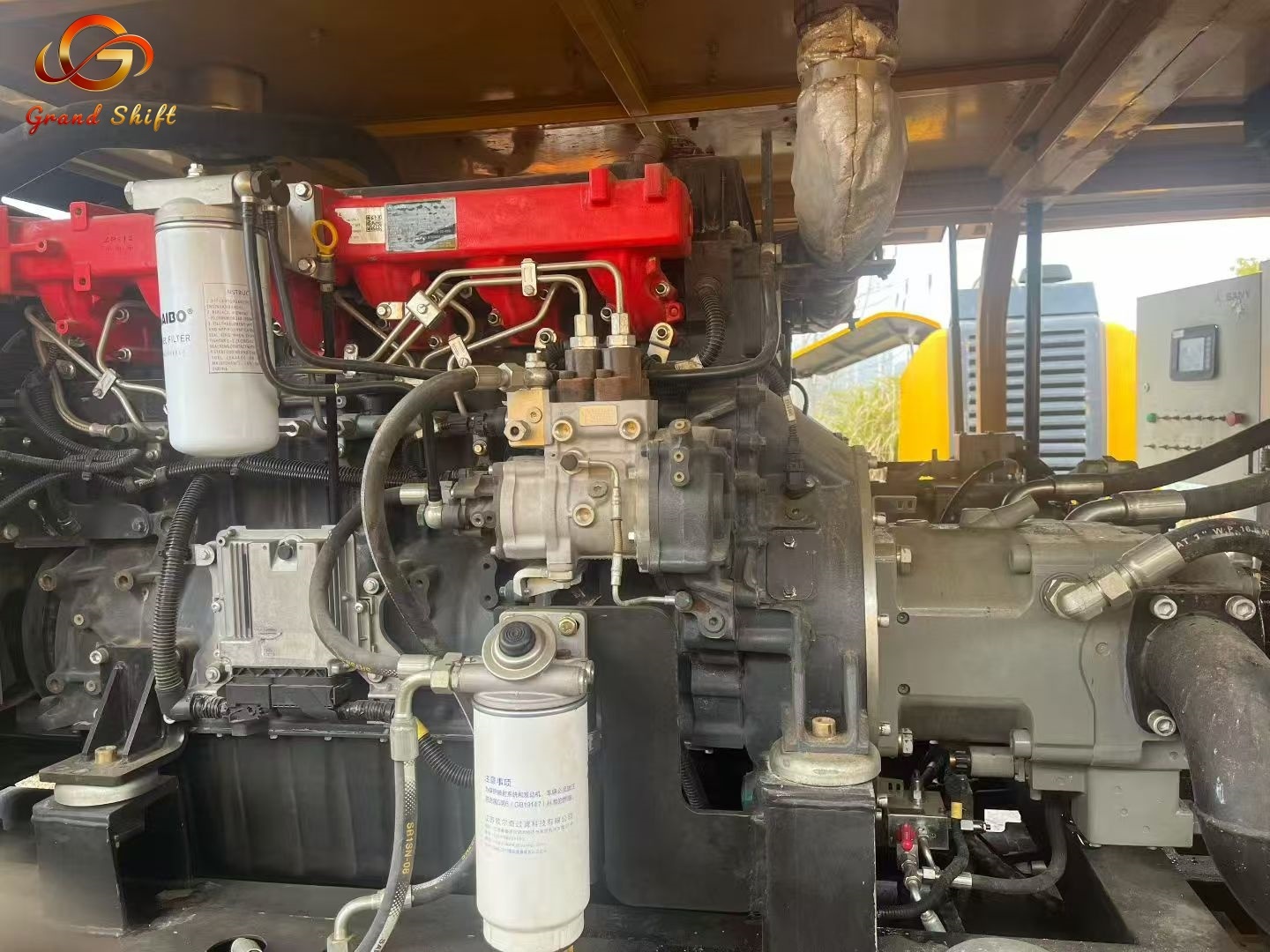

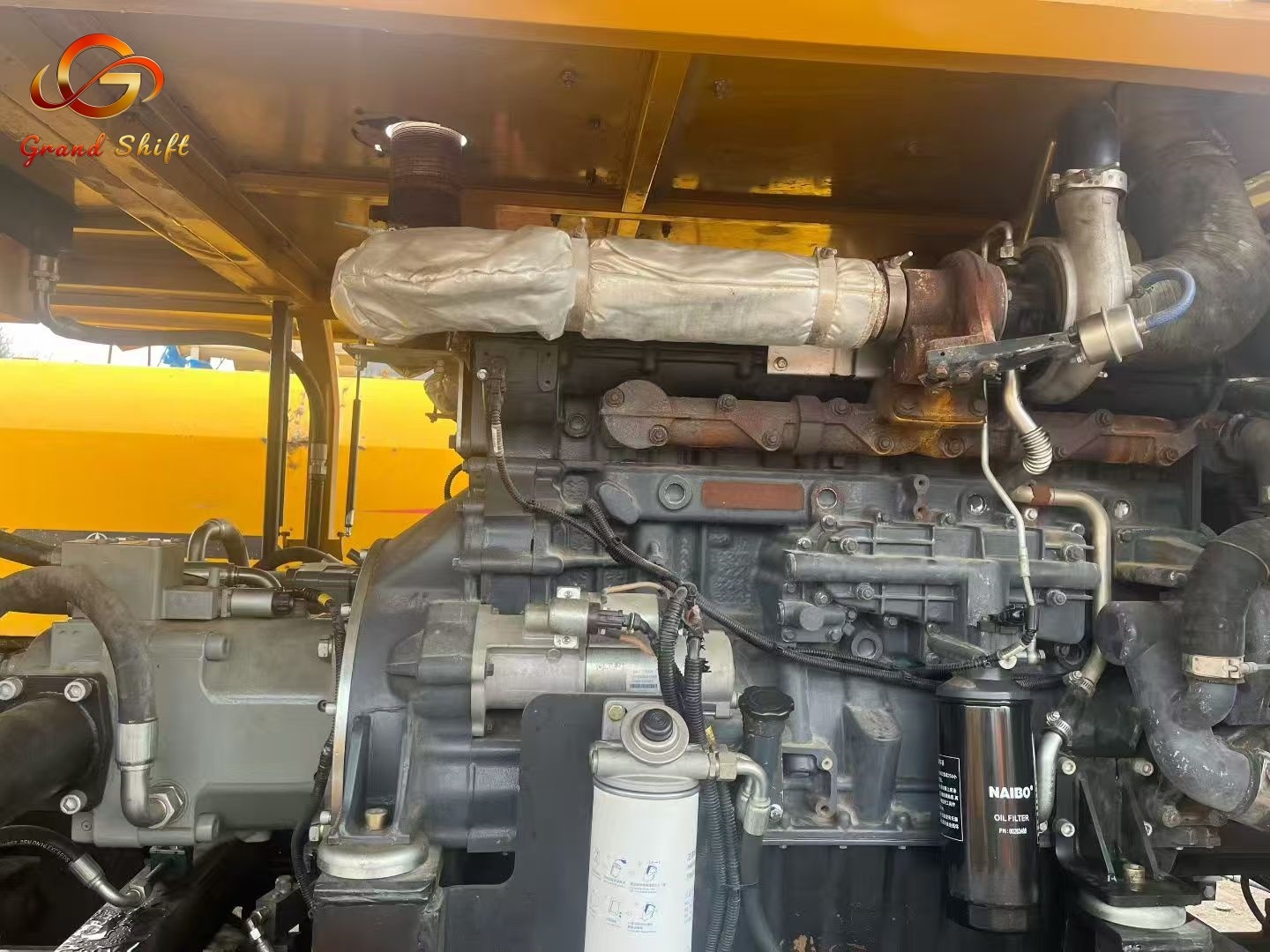

    - Engine: Dual Diesel Engines
    - Rated Power: 2 × 180 kW (2200 rpm)
    - buting Valve: S-Valve Switchover
    - Hydraulic System: Differential Pressure Sensing Switchover, High-Flow Main Valve, Automatic Piston Reraction

    IV. Core Technologies and Features

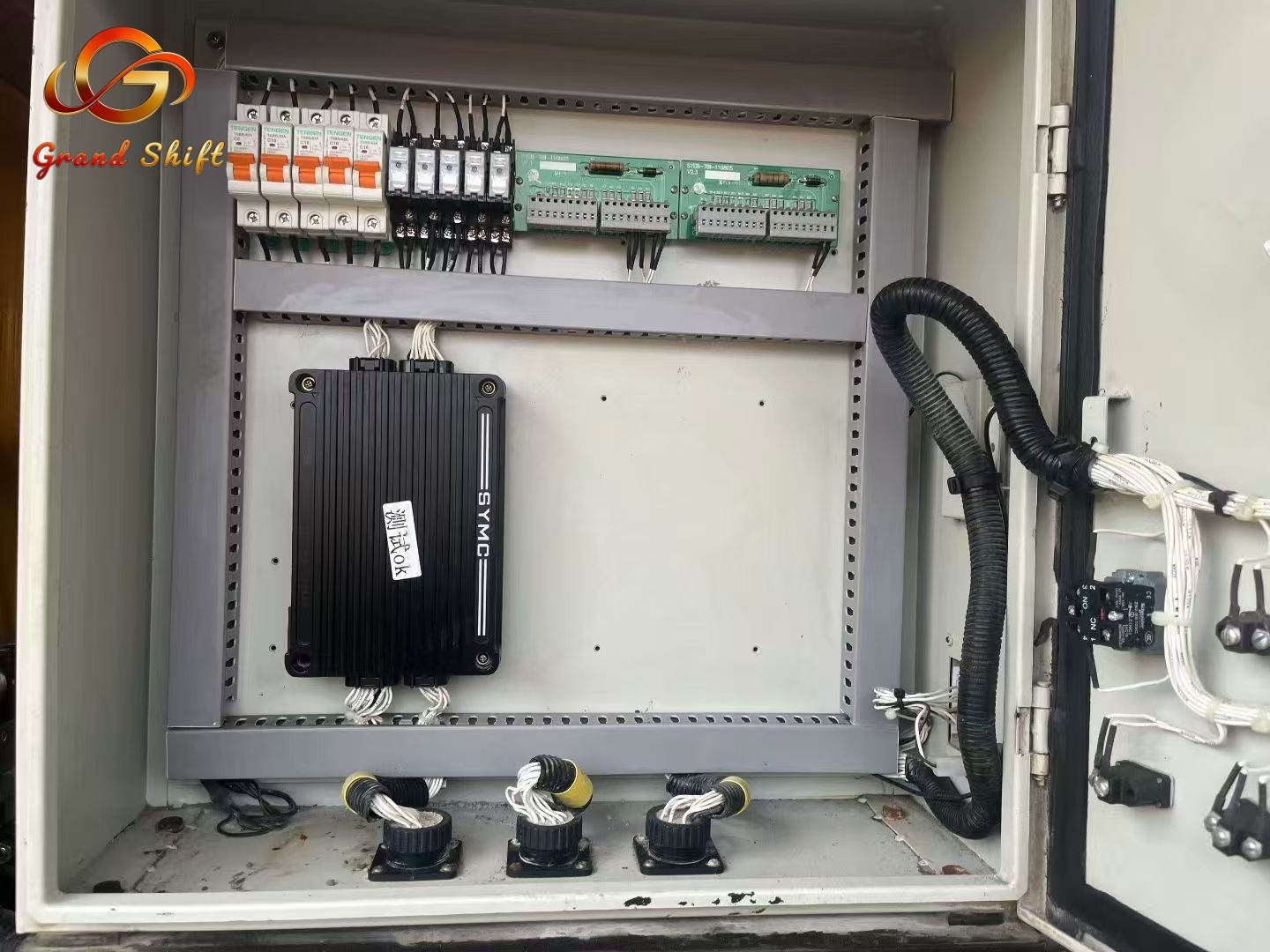

    - Intelligent Control: Fault Self-Diagnosis, Dedicated Motion Controller, Forced Pumping
    - Energy Saving Technology: Load Adaptive Power Control, aves about 25% Fuel
    - Wear Resistance Technology: 5th Generation Wear Parts (Eye Plate/Cutting Ring/Delivery Cylinder)
    - Mixing System: High Torque Motorced Feeding, High Suction Performance
