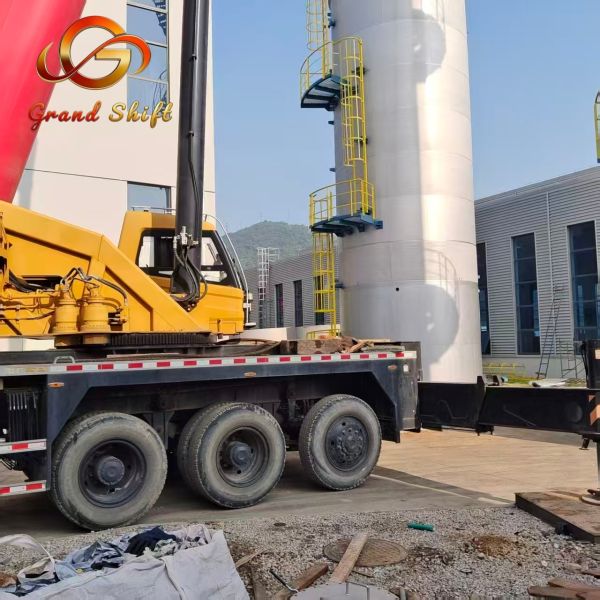

2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
Specifications
Brand Name :
SANY
Model Number :
STC1300C7
Certification :
CE, ISO9001, ISO14001, Special Equipment Manufacturing License / CE、ISO9001、ISO14001
Place of Origin :
China
MOQ :
1 unit (customizable according to user needs )
Price :
133000-175000USD
Supply Ability :
50 Units 30 days
Delivery Time :
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Packaging Details :
Nude packaging / Frame packaging (for sea transportation, to avoid damage during transportation
Description

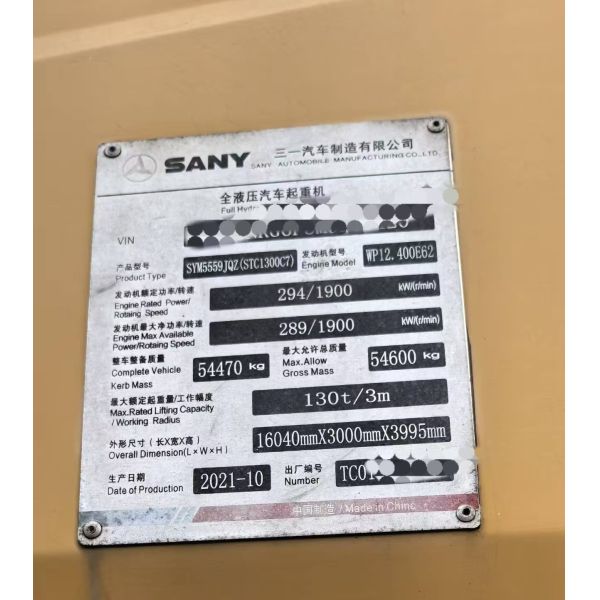

Basic Vehicle Information
Item English Parameter
Product Title Full Hydraulic Truck Crane
Manufacturer SANY Automobile Manufacturing Co., Ltd.
Country of Origin Made in China
VIN Vehicle Identification Number
Product Model SYM5559JQZ (STC1300C7)
Factory Serial Number TC01XXXXXX
Date of Production 2021-10
Vehicle Type Mobile Crane (Truck Mounted Crane)
Emission Standard National VI (Euro 6 Equivalent)
Chassis and Powertrain Parameters
Item English Parameter
Engine Model WP12.400E62 (coms optional)
Engine Rated Power / Rotating Speed 294 kW @ 1900 r/min
Engine Max Net Power / Rotating Speed 289 kW @ 1900 r/min
Displacement 11.596 L
Fuel Type Diesel
Drive Type 8×4
Steering Type Hydraulic Power Steering
Brake System Air Brake + ABS + ASR
Clutch Type Dry Single Plate Clutch
Transmission Type Manual Gearbox (12 Forward + 2 Reverse)
Max Travel Speed 80 km/h
Grade Ability 30%
Min Turning Radius 24 m
Approach Angle 16°
Departure Angle 14°
Crane Working Performance Parameters
Item English Parameter
Max Rated Lifting Capacity / Working Radius 130 t @ 3 m
Max Lifting Moment 4312 kN·m
Main Boom Length Range 13.7 m - 78 m
Jib Length Range 13 m - 36 m
Max Lifting Height (Main Boom) 78 m
Max Lifting Height (Main Boom + Jib) 114 m
Max Working Radius (Main Boom) 70 m
Max Working Radius (Main Boom + Jib) 90 m
Boom Telescoping Speed 0 - 120 m/min
Hoist Line Speed (Single Rope, No Load) 0 - 130 m/min
Hoist Line Speed (Single Rope, Full Load) 0 - 65 m/min
Slew Speed 0 - 2 r/min

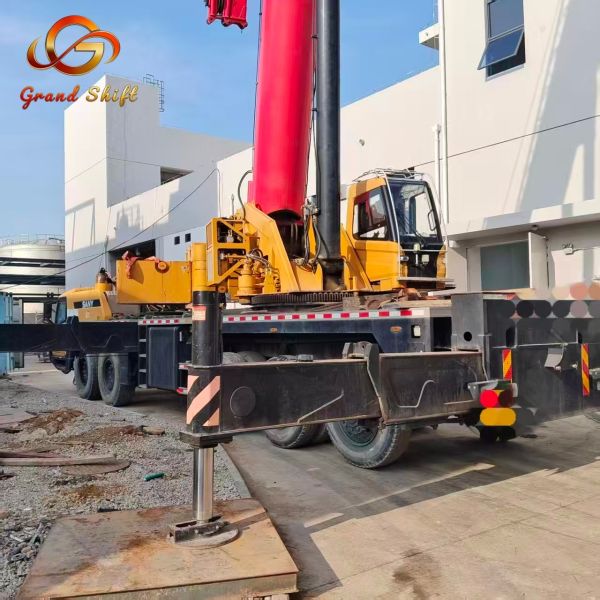

Outrigger Span (Full Extended) 8.7 m × 8.7 m
Outrigger Span (Half Extended) 5.8 m × 8.7 m
Max Wind Speed for Safe Operation 12 m/s (Level 6)
Vehicle Dimension and Mass Parameters
Item English Parameter
Overall Dimension (L×W×H) 16040 mm × 3000 mm × 3995 mm
Complete Vehicle Kerb Mass 54470 kg
Max Allowable Gross Mass 54600 kg
Front Axle Load (Kerb Mass) 13600 kg
Middle Axle Load (Kerb Mass) 20435 kg
Rear Axle Load (Kerb Mass) 20435 kg
Wheelbase 1650 mm + 4050 mm + 1350 mm + 1350 mm
Track Width (Front) 2280 mm
Track Width (Middle/Rear) 2280 mm
Tire Specification 445/95 R25
Ground Clearance (Min) 280 mm
Safety and Control System
Item English Parameter

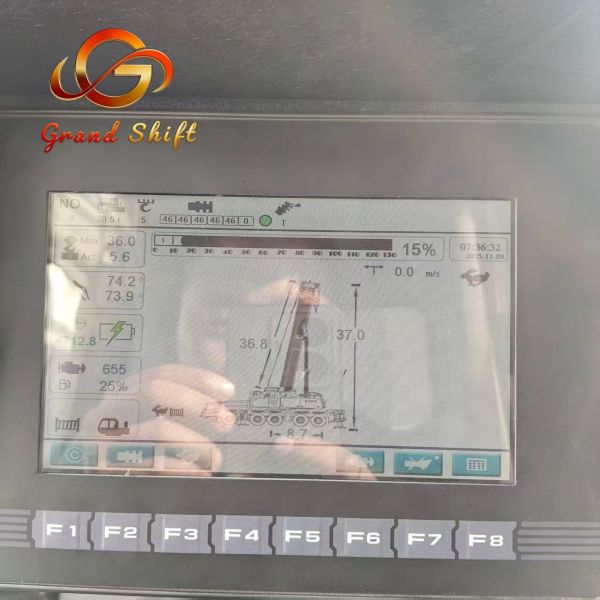

Load Moment Limiter (LML) Standard Configuration
Overhoist Limiter Standard Configuration
Overlower Limiter Standard Configuration
Slew Limiter Standard Configuration
Outrigger Interlock System Standard Configuration
Emergency Stop System Standard Configuration
Level Indicator Standard Configuration
Wind Speed Indicator Optional Configuration
Cab Air Conditioner Standard Configuration
Cab Heater Standard Configuration
Reverse Camera Standard Configuration
Central Lubrication System Optional Configuration
