Used SANY SYM5446THB 56m Boom Length Concrete Pump Truck with 180 m³/h Output on Vovo FM500 Chassis
Used SANY SYM5446THB 56m Boom Length Concrete Pump Truck with 180 m³/h Output on Vovo FM500 Chassis
Used SANY SYM5446THB 56m Boom Length Concrete Pump Truck with 180 m³/h Output on Vovo FM500 Chassis
Used SANY SYM5446THB 56m Boom Length Concrete Pump Truck with 180 m³/h Output on Vovo FM500 Chassis
Used SANY SYM5446THB 56m Boom Length Concrete Pump Truck with 180 m³/h Output on Vovo FM500 Chassis
Used SANY SYM5446THB 56m Boom Length Concrete Pump Truck with 180 m³/h Output on Vovo FM500 Chassis
Used SANY SYM5446THB 56m Boom Length Concrete Pump Truck with 180 m³/h Output on Vovo FM500 Chassis
Used SANY SYM5446THB 56m Boom Length Concrete Pump Truck with 180 m³/h Output on Vovo FM500 Chassis
Specifications
Place of Origin :
China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
50 Units 30 days
Model Number :
SYM5446THB
MOQ :
1 unit (customizable according to user needs )
Price :
57150-70000USD
Certification :
CE, ISO9001, ISO14001, Special Equipment Manufacturing License / CE、ISO9001、ISO14001
Brand Name :
Sany
Delivery Time :
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Packaging Details :
Nude packaging / Frame packaging (for sea transportation, to avoid damage during transportation
Description
1. Basic Information
Item Specification
Product Name Concrete Pump Truck
Model SYM5446THB (530C-8A / 560C-8B)
Brand SANY
Chassis Brand Vovo
Chassis Model FM500 84R B
Gross Vehicle Weight 44,000 kg
Wheelbase Multi-axle (8×4/10×4 configuration)
Emission Standard China V / Euro V
2. Dimension & Weight
Item Specification
Overall Length 13,860–14,610 mm
Overall Width 2,550 mm
Overall Height 4,000 mm
Curb Weight 43,870 kg
Tire Size 315/80 R22.5
3. Engine (Vovo Chassis)
Item Specification
Engine Model D13C500S EUV
Rated Power 368 kW (500 HP) @ 1,800 rpm
Displacement 12.777 L
Fuel Tank Capacity 410 L
Fuel Type Diesel
4. Pumping System (SANY C8 Series)
Item Specification
Max Concrete Output (Low Pressure) 180 m³/h
Max Concrete Output (High Pressure) 125 m³/h
Max Pumping Pressure (Low Pressure) 8.3 MPa
Max Pumping Pressure (High Pressure) 12 MPa
Delivery Cylinder Diameter 260 mm
Delivery Cylinder Stroke 2,100 mm
Hopper Capacity 600 L
S-Valve Type Wear-resistant alloy steel
5. Boom System
Item Specification
Boom Length 53 m / 56 m (6-section RZ fold)
Max Vertical Reach 53.1 m / 56.1 m
Max Horizontal Reach 48.2 m / 51.2 m
Boom Material High-strength steel
Outrigger Span (Front/Rear) 9.5 m / 9.8 m
6. Additional Notes
  • Condition: Used, well-maintained, ready for operation
  • Optional Parts: Spare wear parts, pipe kits, remote control system
  • Compliance: Full documentation available for import/export

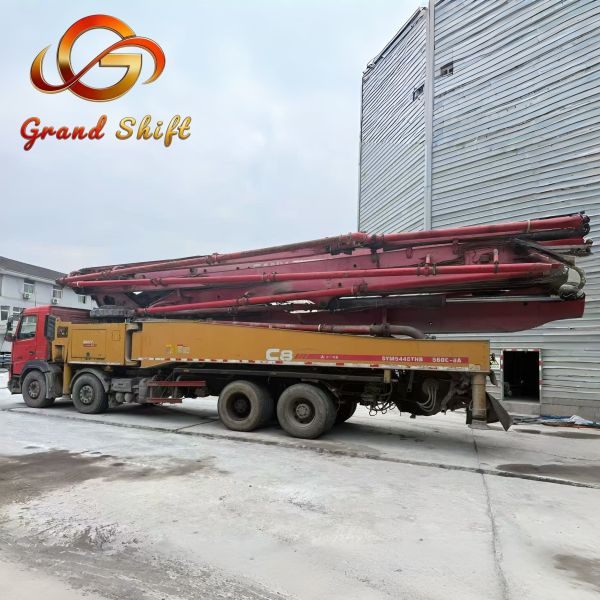

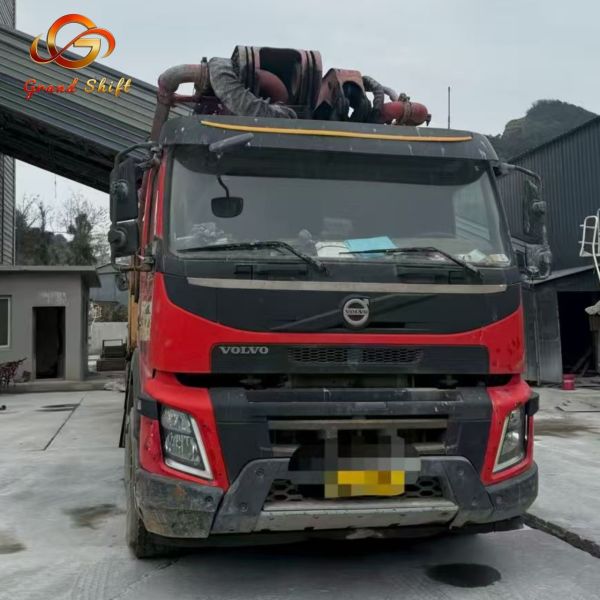

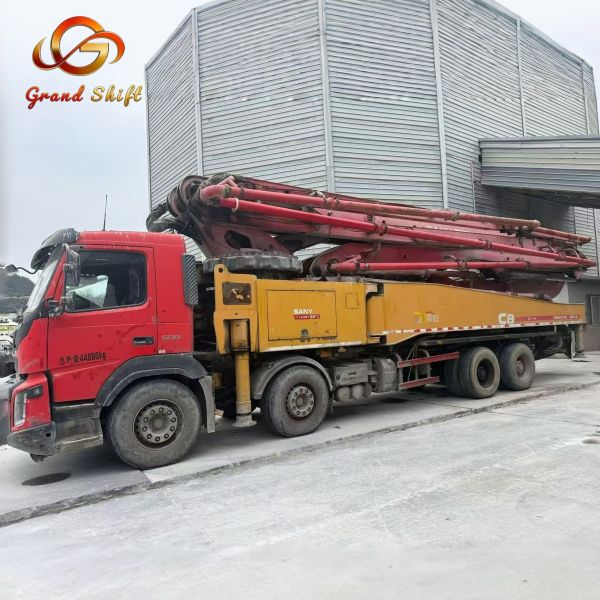

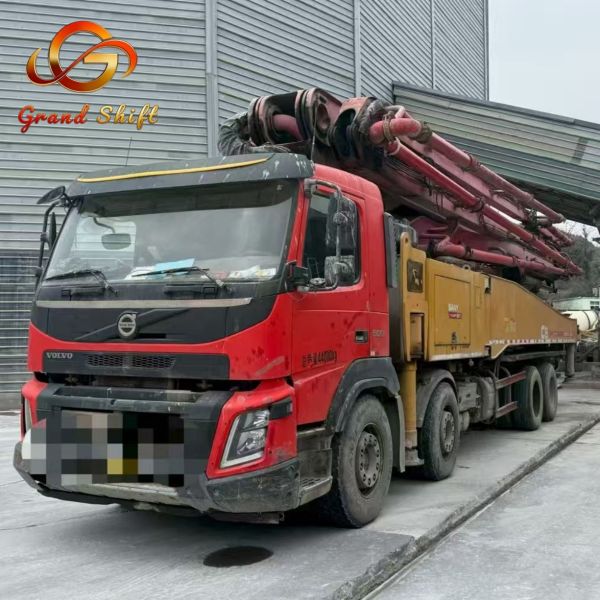

Photos
