Indirect heating raw rice dryer automatic SS rice dryer 60 tons capacity batch dryer
Indirect heating raw rice dryer automatic SS rice dryer 60 tons capacity batch dryer
Indirect heating raw rice dryer automatic SS rice dryer 60 tons capacity batch dryer
Indirect heating raw rice dryer automatic SS rice dryer 60 tons capacity batch dryer
Specifications
Brand Name :
PAM
Model Number :
PGD-30
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per month
Delivery Time :
5-8 working days if no customization parts
Packaging Details :
standard export wooden cases
Type :
batch type
Usage :
grain drying
Condition :
new
Body dimension :
2900*2260*12700mm
Air consumption :
10000-14000 m3/h
Power :
21.7kw
Description

Indirect heating raw rice dryer automatic SS rice dryer 60 tons capacity batch dryer

Why You Need Grain Dryer Machine?

  • Save grains on cloudy and rainy days,prevent them from mold and sprout
  • Save space and time for drying grains,it could running at 24 hours every day
  • Save labor cost,dryer could running automatically under one man’s operation
  • Save grain lost and contaminated rate,much better to drying by the sunshine
  • Save grains quality,bulk of fresh grains could be packed and harvest on time

What Can We Do With Dryer?

  • Low drying cost,together with biomass furnace,could save 70% cost compare with diesel and gas burner
  • Excellent low temperature dryer design,reduce crackled rate and avoid yellow ones
  • Fully modularized automatic production. Spare parts can be 100% replaceable. Our distributor teams network are the guarantee for after sales service.


How Did Dryer Works

  • Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
  • After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
  • When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
  • The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
  • Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
  • Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request

Indirect heating raw rice dryer automatic SS rice dryer 60 tons capacity batch dryer
Technical parameters

Model
Item

5HPX-155HPX-205HPX-305HPX-35
Loading capacity(kg)Paddy3,000~15,0003,000~20,0004,000~30,0005,000~35,000
Corn3,800~18,5003,800~24,6005,000~36,4006,000~42,000
Dimension L*W*H (mm)4321*2583*100004600*3263*105004600*3570*127005712*5000*12400
Net Weight3,0004,2005,5008,000
Heat SourceBiomass Furnace/Gas Burner/Diesel Burner
Power Consumption (kw)9.9510.621.719.7
Input Voltage3 Phase 220V/380V,50Hz
Husk FurnaceTypeIndirect
Ignition Manual
FunctionLoading50~60(approx)50~60(approx)60~70(approx)60~70(approx)
Discharge50~60(approx)50~60(approx)60~70(approx)60~70(approx)
Drying Rate0.5-1.2 %/h0.5-1.2 %/h0.6-1.4 %/h0.5-1.2 %/h
Standard DevicesOnline moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor
Safety DevicesOverload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch

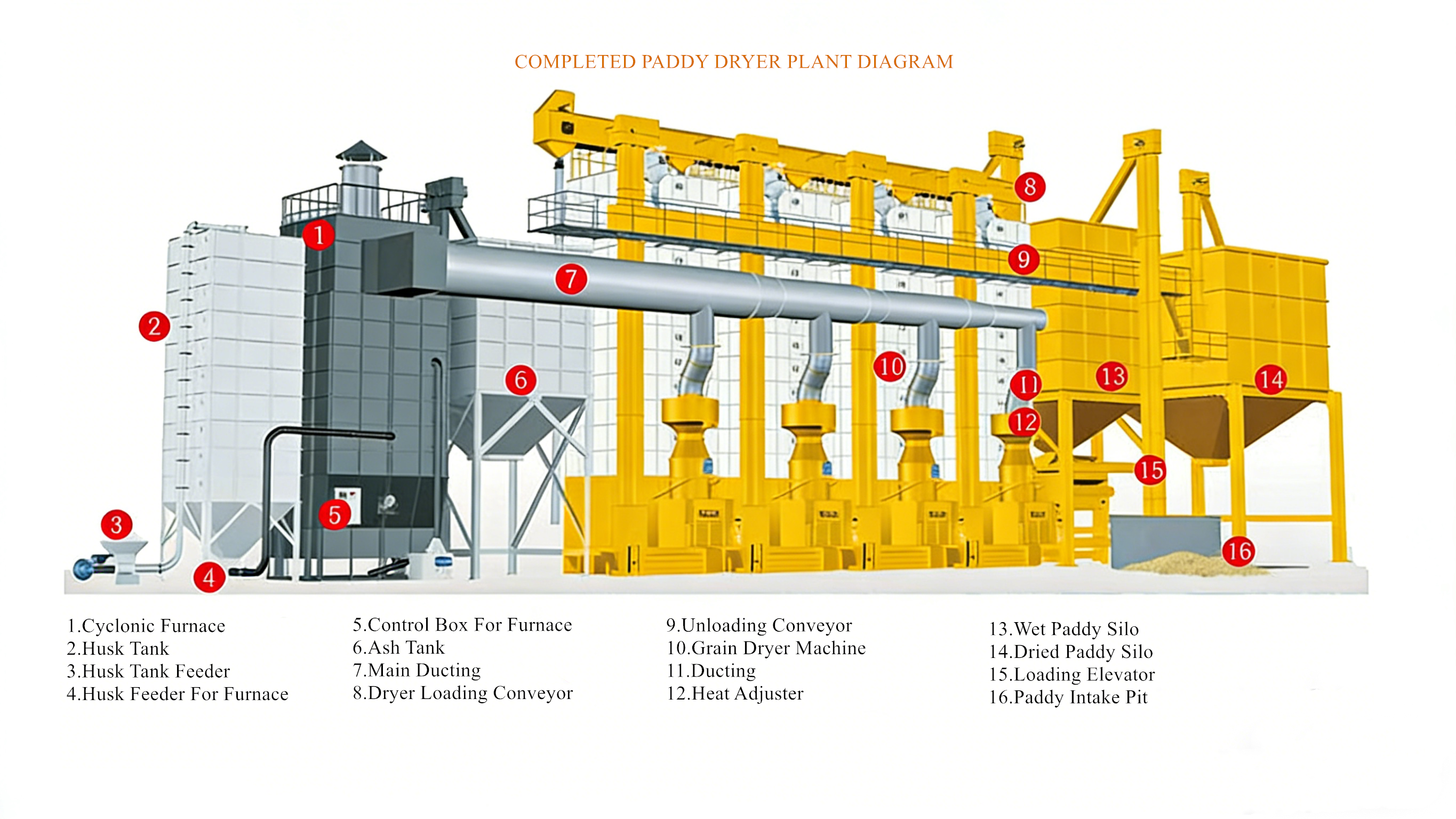

What's The Drying Plant Looks Like?

Indirect heating raw rice dryer automatic SS rice dryer 60 tons capacity batch dryer

What We Can Offer

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
