Specifications
Brand Name :
wangu
Model Number :
5HSN-100/200/300/500/800
Certification :
ISO9001
Place of Origin :
zhengzhou
MOQ :
1
Price :
Negotiation
Supply Ability :
100SETS
Delivery Time :
30-80days
Packaging Details :
stadard packing
Condition :
new
Warranty :
1 year
Capacity :
100-800 t/d
Model :
5HSN-100/200/300/500/800
Color :
Silver
Moisture reduction :
3~15%
Heating medium :
Hot Clean Air
Hot-air temperature :
45～80℃
Drying unevenness :
≤1.5%
Crush Ratio Increment :
≤0.5%
Crackle Ratio Increment :
≤3%
Heat consumption :
5000~7000
Description

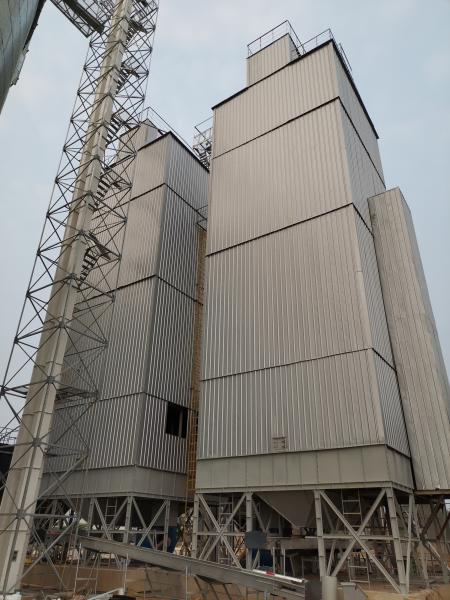

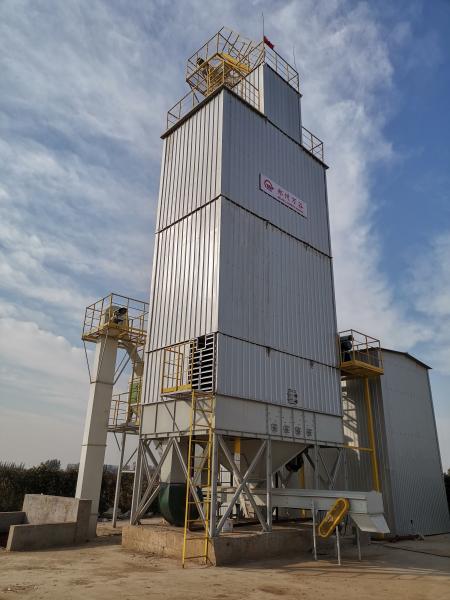

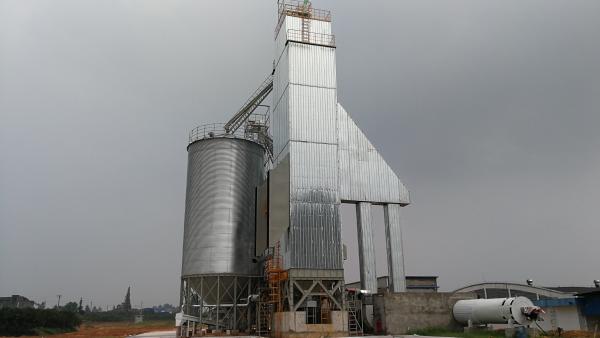

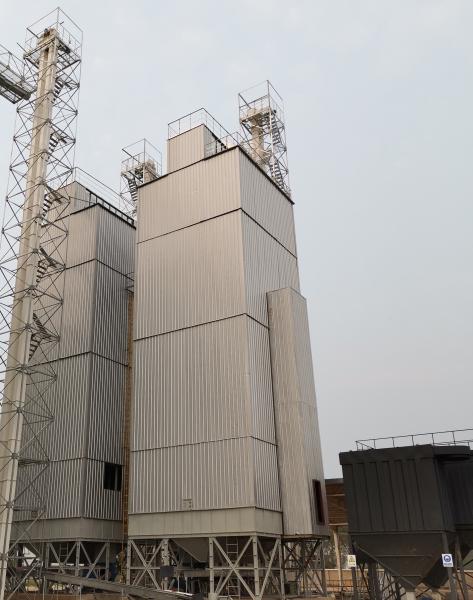

Mixed flow grain dryer

Product Introduction

The mixed flow grain dryer consists of drying sections, tempering sections and cooling sections,

and air ducts are arranged layer by layer in a staggered manner in the drying sections. This model adopts mixed flow process and uses clean hot air as the drying medium, suitable for drying paddy, wheat, soybeans, rapeseed, and so on.

Features

▶ Fully weather proof, can be installed and used in open air.

▶ Adopting low-temperature, thin-layer, mixed flow drying technology, the grain can get uniformly and gently heated, and the quality after drying is good.

▶ The core components are made of stamping high-strength steel, which has high strength and precision.

▶ Intelligent control system, precise control of drying process, easier operation.

Specification and Technical Parameters

Model 5HSN-100 5HSN-200 5HSN-300 5HSN-500 5HSN-800
Handling capacity (t/d) 100 200 300 500 800
Moisture reduction (%) 3~15
Heating medium Clean air
Hot-air temperature (℃) 45～80
Drying unevenness (%) ≤1.5
Crush Ratio Increment (%) ≤0.5
Crackle Ratio Increment(%) ≤3
Heat consumption (kJ/kg) 5000~7000
Dryer section(m×m) 2.5×3.5 3.0×6.0 4.0×6.0 7.0×6.0 7.0×7.5
