1×16 Fiber Optic Coupler 1×16 Polarization Maintaining Fiber Coupler / Fiber Optic Splitter
1×16 Fiber Optic Coupler 1×16 Polarization Maintaining Fiber Coupler / Fiber Optic Splitter
1×16 Fiber Optic Coupler 1×16 Polarization Maintaining Fiber Coupler / Fiber Optic Splitter
1×16 Fiber Optic Coupler 1×16 Polarization Maintaining Fiber Coupler / Fiber Optic Splitter
Specifications
Brand Name :
Gracyfiber
Model Number :
PMOS-16435PM0910-22(S5)
Certification :
ISO9001 , ROHS
Place of Origin :
Guangdong , China
MOQ :
1pieces
Price :
10~1000usd/pcs
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
120*80*18
Name :
Polarization Maintaining Fiber Coupler
Operating Wavelength :
420-456 nm
Excess Loss :
≤19 nm
Return Loss :
≥55 dB
Fiber Type :
Panda fiber
Insertion Loss :
≤8.2 dB
Extinction Ratio :
≥20 dB
Description
1×16 Fiber Coupler (1×16 Polarization-Maintaining Fiber Coupler / PLC Splitter) — Designed For EDFA, Fiber Lasers, Coherent Communication, And Fiber Sensors
Product Description

This 1*16 Fiber Coupler is a high-performance passive optical splitting device capable of uniformly distributing a single input optical signal across 16 output ports.

Key Features
Parameters Unit PM 1x16
Operating Wavelength nm 420-456
Typical Excess Loss nm ≤19
Polarization Extinction Ratio dB ≥12
Loss Uniformity dB ≤1.6
Return Loss dB ≥55
Power Handling W ≤0.3
Directivity dB ≥50
Operating Temperature ℃ -5~+65
Storage Temperature ℃ -40～+80
Port Type / 1x18
Fiber Type / Panda fiber
Fiber Length m 1.0±0.1m,others on request
Connector / FC/APC,others on request
Package Dimension 2mm/3mm
Loose Tube		 mm 120*80*18

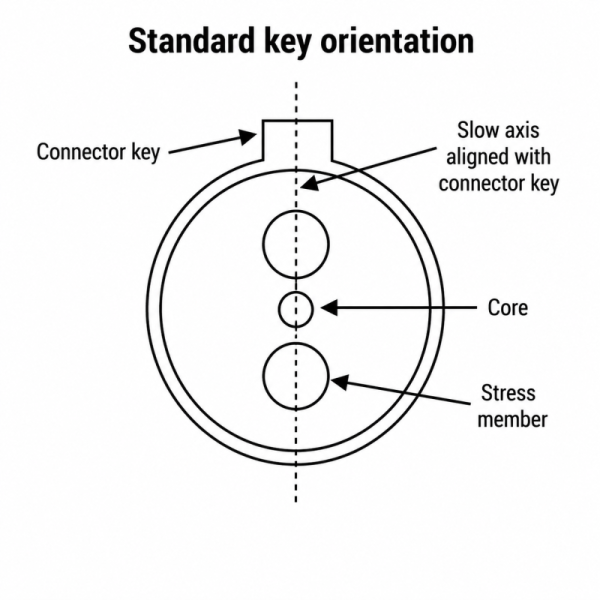

The default connector key is aligned to slow axis.

1×16 Fiber Optic Coupler 1×16 Polarization Maintaining Fiber Coupler / Fiber Optic Splitter

  • 1*16 Multi-channel uniform optical splitting structure
  • Utilizes PM (Polarization-Maintaining) Fiber technology
  • Based on PLC (Planar Lightwave Circuit) design
  • Typical Insertion Loss: ≤8.2 dB
  • Extinction Ratio: ≥20 dB
  • Return Loss: ≥50 dB
  • Directionality: ≥50 dB
  • Operating Wavelength Range: 420–456 nm
  • Maximum Input Optical Power: 300 mW
  • Operating Temperature: -5°C to +65°C
  • Storage Temperature: -40°C to +80°C

1×16 Fiber Optic Coupler 1×16 Polarization Maintaining Fiber Coupler / Fiber Optic Splitter

Applications
  • EDFA (Erbium-Doped Fiber Amplifiers)
  • Fiber Optic Instrumentation and Test Systems
  • Coherent Communication Systems
  • Fiber Optic Sensing Systems
  • Optical Power Monitoring Systems
  • Fiber Laser Systems


FAQ

Q1: What is the operating wavelength range of this product?

A: According to the specifications, the operating wavelength range of this 1×16 PM Fiber Coupler is 420–456nm, suitable for short-wavelength polarization-maintaining optical systems, optical test platforms, sensing systems, and special light source applications.


Q2: Does this product support customization?

A: Yes, it supports customization. Customers can customize the fiber length, connector type, packaging, and pigtail structure according to their actual system requirements.
