High Density Tap Module Optical Monitoring Splitter Modules 4CH 8CH For Data Centers
High Density Tap Module Optical Monitoring Splitter Modules 4CH 8CH For Data Centers
Specifications
Wavelength range :
1260-1650 nm (single-mode), 850±50 nm (multi-mode)
Port configuration :
4CH/8CH
Insertion loss :
1.3-15.7 dB (varies by tap ratio)
Return loss :
≥50 dB (single-mode), ≥25 dB (multi-mode)
Power handling :
300 mW (single-mode), 500 mW (multi-mode)
Dimensions :
109 × 118 × 35 mm
Place of Origin :
China
Brand Name :
Gracyfiber
Certification :
ISO CE RoSH
MOQ :
100pcs
Payment Terms :
T/T
Description

High-Density Tap Modules (Optical Monitoring Splitter Modules) — 4CH/8CH MPO/MTP® For Data Centers, Optical Monitoring, And High-Speed ​​Networks

1. Product Description

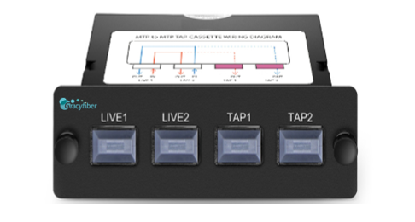

These High-Density Tap Modules are passive optical monitoring splitter modules designed for high-density fiber link monitoring and network visualization applications. Supporting both single-mode and multi-mode configurations, they are available with 4-channel and 8-channel port options. The single-mode version operates within a wavelength range of 1260–1650 nm, while the multi-mode version is optimized for 850±50 nm. These modules are ideally suited for in-line optical splitting and traffic analysis applications within data centers, parallel optical interconnects, backbone link monitoring, and high-speed transmission systems. Featuring MPO/MTP® interfaces and a compact form factor of 109 × 118 × 35 mm, the products are easily integrated into high-density cabling systems, monitoring platforms, and rack-mounted network environments.

2. Key Features
Parameter Unit Value
Fiber Type Single-mode Multi-mode
Wavelength nm 1260~1650 850±50
Port Configuration – 4CH 8CH 4CH 8CH
Insertion Loss
(Max)		 Tap Ratio 5% dB 14.8 15.1 15.3 15.7
95% dB 1.3 1.4 1.5 1.7
Tap Ratio 20% dB 8.70 8.85 8.80 8.95
80% dB 2.45 2.55 2.50 2.60
Tap Ratio 30% dB 6.9 7.2 6.8 7.1
70% dB 2.8 3.1 2.9 3.2
Tap Ratio 40% dB 5.6 5.8 5.5 5.8
60% dB 3.6 3.8 3.5 3.8
Tap Ratio 50% dB 4.7 4.8 4.6 4.8
50% dB 4.7 4.8 4.6 4.8
Return Loss dB ≥50 ≥25
Directivity dB ≥50 ≥25
Power Handing mW 300 500
Fiber Type – G67A1/ A2/ B3 or SMF-28 OM3/OM4/OM5
Fiber Coating um 250 µm / 900 µm loose tube
Conector – MPO/MTP®
Package Size mm 109*118*35
Operation Temperature °C -5~65
Storage Temperature °C -40~85
  • Supports both single-mode and multi-mode configurations
  • Offers 4-channel and 8-channel port options
  • Compatible with 1260–1650 nm single-mode and 850±50 nm multi-mode wavelength bands
  • Supports multiple tap ratios: 5/95, 20/80, 30/70, 40/60, and 50/50
  • Single-mode Return Loss and Directivity: ≥50 dB
  • Multi-mode Return Loss and Directivity: ≥25 dB
  • Utilizes high-density MPO/MTP® interfaces
  • Module dimensions: 109 × 118 × 35 mm
3. Applications
  • Data Center Optical Link Monitoring
  • High-Density Network Visualization Systems
  • Traffic Analysis and Security Auditing
  • Parallel Optical Interconnect Monitoring
  • Optical Communication Test Platforms
  • OEM Optical Monitoring Modules
