Specifications
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
MOQ :
1pieces
Payment Terms :
L/C, T/T
Name :
Multi-Function Integrated Optical Chip
Operating Wavelength :
1310±25 nm or 1550±25 nm
Insertion Loss :
≤3.5 dB
Max Input Power :
≤200 mW
Half-Wave Voltage :
≤4.0 V
Operating Temperature :
-45 ~ +70 °C
Fiber Diameter :
80/170 μm or 125/250 μm
Delivery Time :
5-8 work days
Supply Ability :
100,000 pieces per month
Description

LiNbO₃ Y-Branch MIOC (Lithium Niobate Y-Branch Multifunctional Integrated Optical Chip) For Fiber Optic Gyroscopes, Fiber Sensors, And Inertial Navigation

1. Product Description

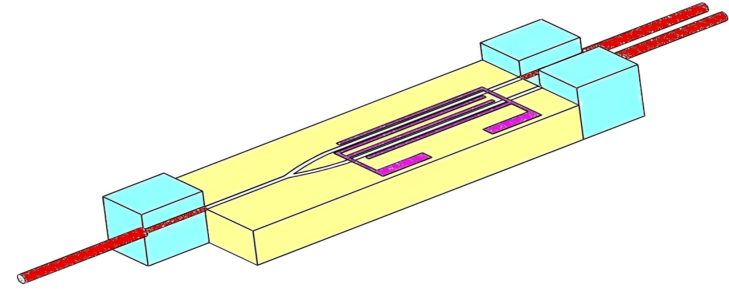

This LiNbO₃ Y-branch MIOC is a multi-functional integrated optical chip designed for use in fiber optic gyroscopes, fiber optic sensing, and inertial navigation systems.

LiNbO3 Y-Branch MIOC Lithium Niobate Y-Branch Multi-Function Integrated Optical ChipLiNbO3 Y-Branch MIOC Lithium Niobate Y-Branch Multi-Function Integrated Optical Chip

LiNbO3 Y-Branch MIOC Lithium Niobate Y-Branch Multi-Function Integrated Optical Chip

LiNbO3 Y-Branch MIOC Lithium Niobate Y-Branch Multi-Function Integrated Optical Chip

2. Key Features
Parameters Unit Value
Optical Operating Wavelength nm 1310±25 1550±25
Insertion Loss dB ≤3.5
Max Input Optical Power mW ≤200
Splitting Ratio – 48/52 ~ 52/48
Polarization Crosstalk dB ≤-30
Chip Polarization ER dB ≥60
Back Reflection dB ≤-50
Additional Intensity Modulation – ≤0.2%
Electrical Half-Wave Voltage (Vπ) V ≤4.0
Electrode Voltage Rating V ≤15
Electrode Structure – Push-Pull Modulation
Operating Frequency MHz 0~300

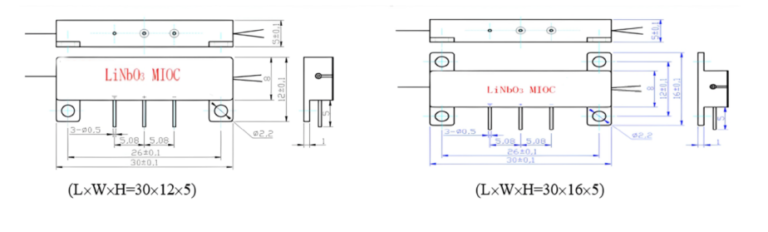

Mechanical Electrical Interface – 3 PIN
Fiber Type – PM or SM
Fiber Diameter μm 80/170 or 125/250
Environmental Operating Temperature °C -45 ~ +70
Storage Temperature °C -55 ~ +85


3. Applications
  • Fiber Optic Gyroscope (FOG)
  • Fiber Optic Current Sensor (FOCS)
  • Inertial Navigation System
  • Optical Fiber Sensor System
  • Precision Optical Instruments
