DWDM Multiplexer / OADM (Optical Add-Drop Multiplexer) Module — 2CH, 4CH, 8CH, 16CH, 32CH; 100GHz / 200GHz Spacing; With Monitor and 1310nm Port — For Optical Transmission Systems

Product Description

This DWDM Multiplexer OADM is a Dense Wavelength Division Multiplexing (DWDM) and Optical Add-Drop Multiplexing (OADM) module designed for high-capacity optical transmission networks.

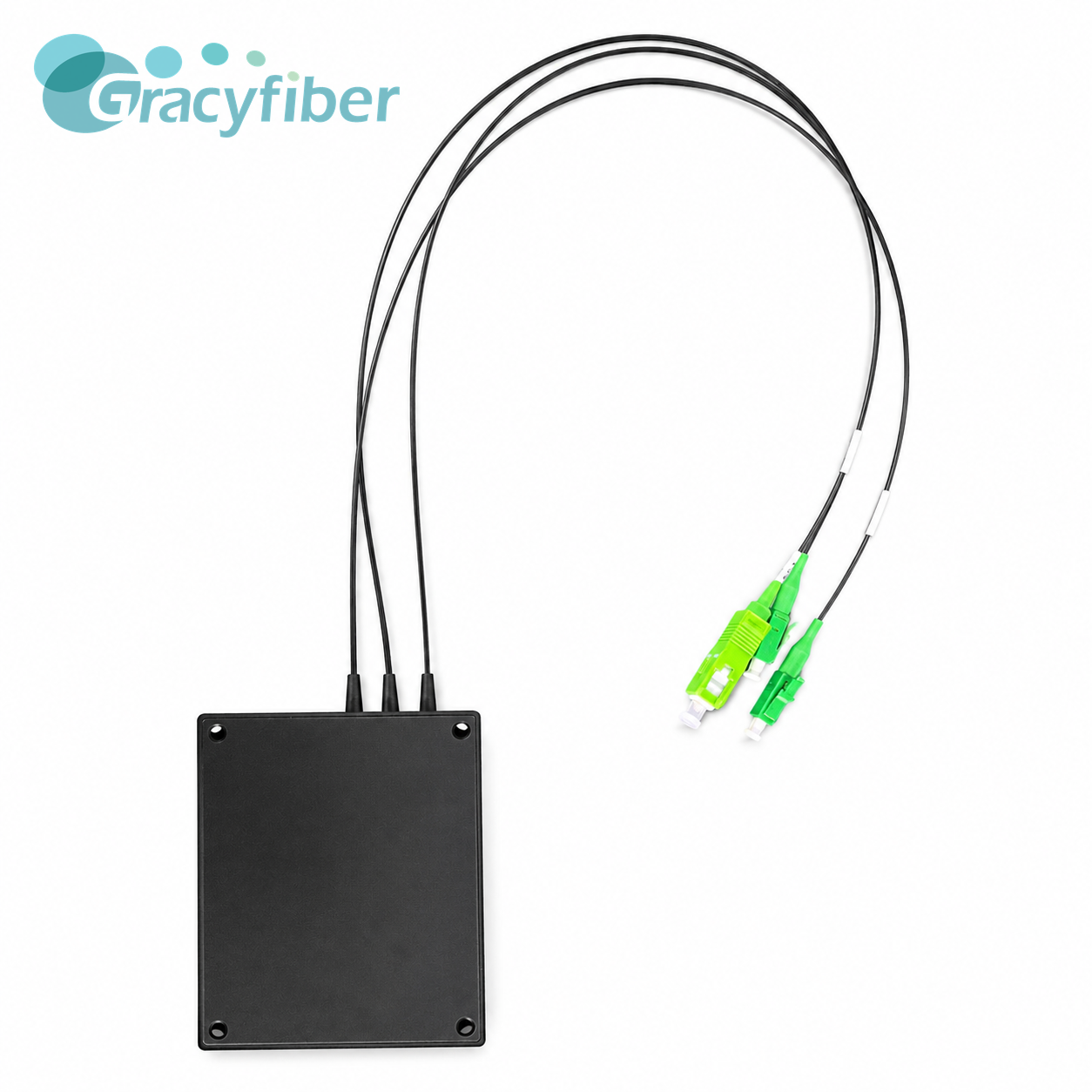

DWDM Multiplexer OADM Optical Add Drop Multiplexer Module 2CH 4CH 8CH 16CH 32CH

Key Features
Parameter Unit Value
Operating Wavelength nm 1525~1565
Special Port nm Monitor,1310 (1260~1360)
Center Wavelength nm ITU Grid(C11 ~C64) or Customized
Channel Spacing nm 100GHz (0.8nm), 200G(0.8nm)
Channel Passband Min nm ±0.11 (100GHz), ±0.25 (200GHz),
Channel - 2CH 4CH 8CH 16CH 32CH
Port Insertion Loss Max dB 1.3 1.8 2.8 4.5 4.8
Isolation Adjacent dB ≥30 ≥30 ≥30 ≥30 ≥30
Non-adjacent dB ≥40 ≥40 ≥40 ≥40 ≥40
1310 Port Max dB 1.0 1.0 1.0 1.0 1.0
Ripple Max dB 0.3 0.3 0.5 0.5 0.5
PDL Max dB 0.5
Return Loss Min dB 40
Directivity Min dB 50
Power Handing Max mW 300
Fiber Type - G67A1/ A2/ B3 or SMF-28
Fiber Coating um 250 µm / 900 µm loose tube
Fiber Length mm 1000

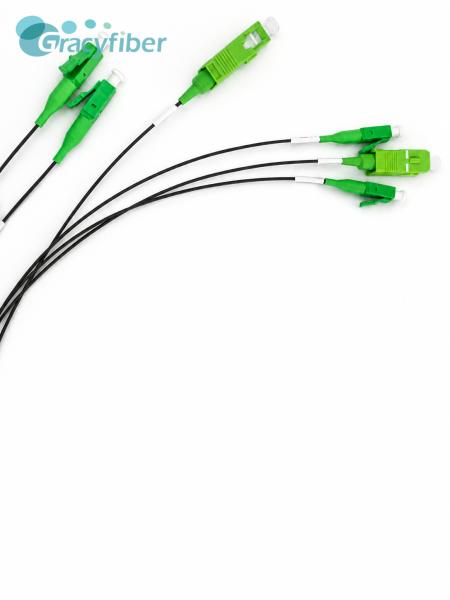

Connector - LC/UPC or Customized

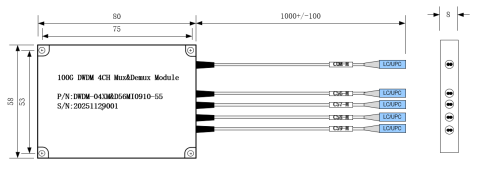

Dimensions (HxWxD) mm 80x58x8, 120x80x18, 155x129x29, 482x250x44
Operating Temperature °C -5~65
Storage Temperature °C -40~85


Applications
  • DWDM Optical Transmission Systems
  • OADM Optical Add/Drop Multiplexing Nodes
  • Metro and Backbone Network Deployment
  • Optical Line Monitoring and Maintenance
  • Data Center Optical Interconnects
  • WDM Multiplexing and Demultiplexing Equipment
  • Optical Communication Test Platforms
  • OEM Optical Communication Modules

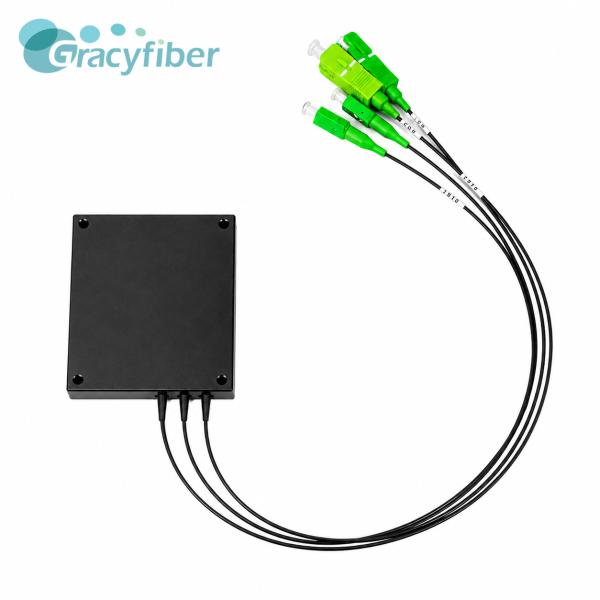

DWDM Multiplexer OADM Optical Add Drop Multiplexer Module 2CH 4CH 8CH 16CH 32CH


FAQ


1: What packaging and fiber optic configurations are available?

A: This module supports modular and rack-mount packaging, with dimensions including 80×58×8 mm, 120×80×18 mm, 155×129×29 mm, and 482×250×44 mm. Fiber optic options include G657A1/A2/B3 or SMF-28, with fiber coating options of 250 µm or 900 µm loose tube. The standard fiber length is 1000 mm.


2: Can I purchase samples for testing first? How are lead times and discounts confirmed for bulk orders?

A: Yes. This product has an MOQ of 1 piece, suitable for engineers to conduct sample verification, link budget testing, port function confirmation, and system compatibility assessment. The page shows a monthly supply capacity of 100,000 pieces; lead times and discounts for bulk orders will be assessed based on the number of channels, port configuration, packaging type, connectors, testing requirements, and purchase quantity. Tiered pricing and partial deliveries are supported.
