Specifications
Operating Wavelength :
1260~1380 nm
Channel Spacing :
200G
Number of Channels :
16
Pass Band :
λC±0.2 nm
Insertion Loss :
≤4.5 dB (CH1), ≤1.0 dB (Mux/Demux)
Operating Temperature :
0~+65 ℃
Description

16CH 200G O-Band PM DWDM Module for Broadband, PON and CATV Networks

1 Features
  • Low Insertion loss and High ER
  • High channel Isolation
  • Good channel-to-channel uniformity
  • High Reliability and Stability
  • Telcordia Compliant
  • RoHS Compliant
2 Applications
  • Broadband networks
  • PON Networks
  • CATV system
  • DWDM system
3 Specifications
Parameters Specification
Operating Wavelength (nm) 1260~1380
Channel spacing 200G
Number of Channel 16
Pass band (nm) λC±0.2
Ripple (dB) ＜0.5
Port

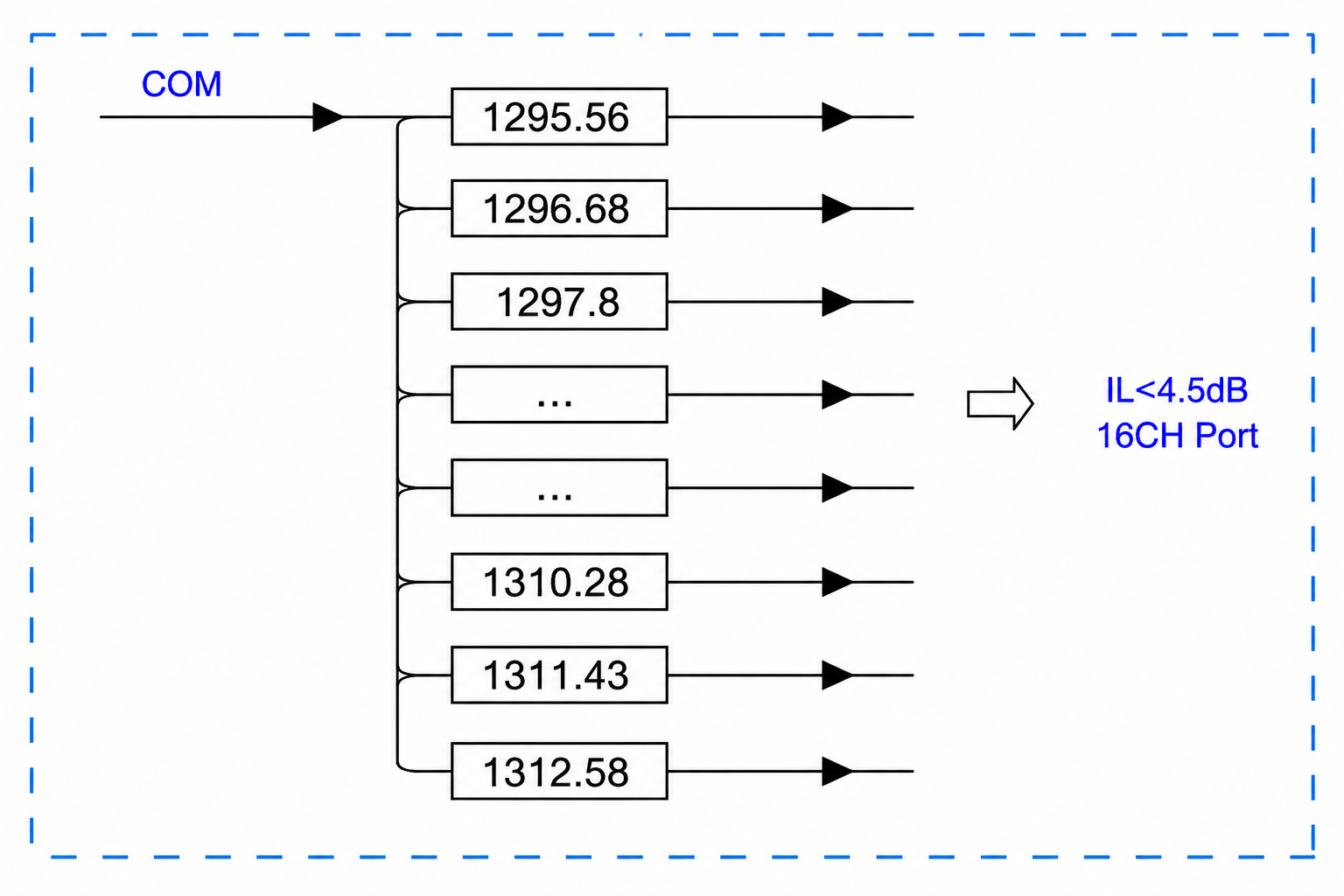

Insertion Loss		 Channel Mux Demux
CH1- 1295.56nm ≤4.5 ≤1.0
CH2- 1296.68nm ≤4.3 ≤1.3
CH3- 1297.80nm ≤4.1 ≤1.6
CH4- 1298.93nm ≤3.9 ≤1.9
CH5- 1300.05nm ≤3.7 ≤2.2
CH6- 1301.18nm ≤3.5 ≤2.5
CH7- 1302.31nm ≤3.3 ≤2.7
CH8- 1303.45nm ≤3.1 ≤2.9
CH9- 1304.58nm ≤2.9 ≤3.1
CH10- 1305.72nm ≤2.7 ≤3.3
CH11- 1306.85nm ≤2.5 ≤3.5
CH12- 1308.00nm ≤2.2 ≤3.7
CH13- 1309.14nm ≤1.9 ≤3.9
CH14- 1310.28nm ≤1.6 ≤4.1
CH15- 1311.43nm ≤1.3 ≤4.3
CH16- 1312.58nm ≤1.0 ≤4.5
Link loss (dB) < 5.5
Isolation (dB) Adjacent > 25
Non-adjacent > 35
ER (dB) > 16
RL (dB) >45
Directivity (dB) >50
Power (mw) <300
Fiber Type Corning PM -1310-U25D
Connector LC/UPC
Operating Temperature (℃) 0~+65

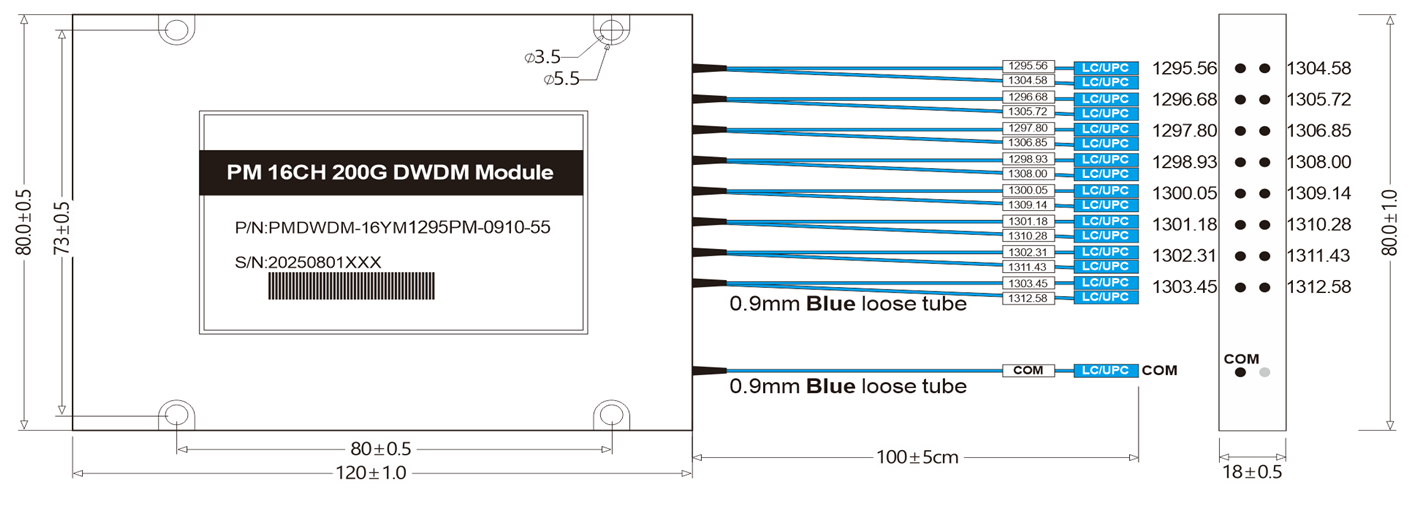

Housing(mm) 120*80*18
