Low insertion loss and high isolation CWDM module
Low insertion loss and high isolation CWDM module
Specifications
Wavelength Range :
1260 ~ 1620 nm
Channel Spacing :
20 nm
Insertion Loss :
≤0.8 dB to ≤6.4 dB
Channel Isolation :
≥30 dB (adjacent), ≥40 dB (non-adjacent)
Operating Temperature :
-10 ~ +70 ℃
Optical Power :
≤500 mW
Description

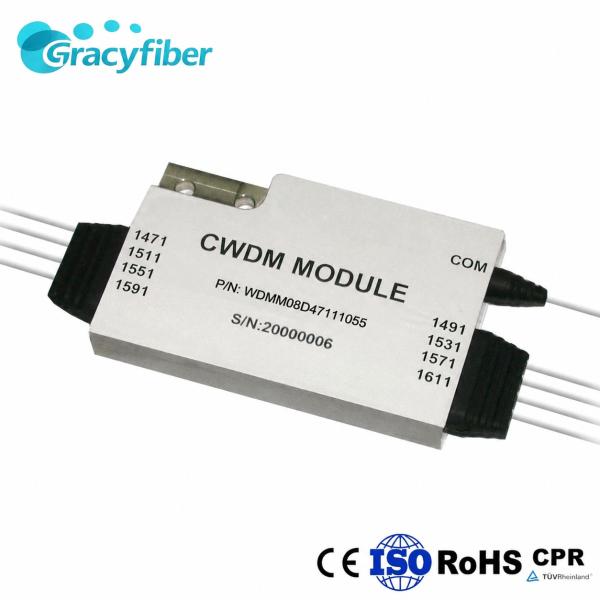

A CWDM (Coarse Wavelength Division Multiplexer) is a passive wavelength division multiplexing device used in optical fiber communication networks. It can combine multiple optical signals of different wavelengths into a single optical fiber for transmission, or separate signals of different wavelengths at the receiving end. This product supports a wavelength range of 1270nm to 1610nm, with a channel spacing of 20nm, and can achieve up to 18 channels of transmission, making it suitable for low-cost, high-capacity optical fiber link expansion. Utilizing thin-film filtering technology and micro-optical packaging design, the product features low insertion loss, high channel isolation, wide passband, low temperature sensitivity, and stable reliability, meeting the multi-wavelength transmission requirements of metropolitan area networks, access networks, data centers, and optical transmission systems.

Specification
PARAMETER UNIT VALUES
Channels 1×2 1×4 1×8 1×16 1×18
Wavelength Range nm 1260 ~ 1620
Channel Center Wavelength nm 1270 / 1290 / … / 1610 or 1271 / 1291 / … /1611
Channel Spacing nm 20
Channel Passband nm λc ± 7.5
Insertion Loss dB ≤0.8 ≤1.5 ≤2.5 ≤5.2 ≤6.4
Adjacent Channel Isolation dB ≥ 30
Non-adjacent Channel Isolation dB ≥ 40
Wavelength thermal stability nm/℃ ≤ 0.003
Insertion loss thermal stability dB/℃ ≤ 0.005 ≤ 0.005 ≤ 0.005 ≤ 0.007 ≤ 0.008
PDL dB ≤ 0.1 ≤0.15 ≤ 0.15 ≤ 0.20 ≤ 0.25
Polarization mode dispersion ps ≤ 0.1 ≤ 0.1 ≤ 0.1 ≤ 0.15 ≤ 0.15
Directivity dB ≥ 50
Return loss dB ≥ 45
Optical Power mW ≤ 500
Operating Temperature ℃ -10 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Applications
  • Metropolitan Area Network Transmission System
  • Fiber Optic Access Network
  • Data Center Optical Interconnect
  • WDM Optical Transmission System
  • 5G Fronthaul/Backhaul Network
  • CATV Optical Network
  • Enterprise Leased Line Network
  • Single-Fiber Bidirectional Transmission Link
  • Fiber Optic Link Expansion
  • Multi-wavelength Optical Signal Multiplexing/Demultiplexing System
