40 Channel 100GHz Flat Top DWDM AAWG Module AAWG 40 LL C21 C60 Low Insertion Loss LC UPC Fiber Optic Multiplexer Demultiplexer
1. Product Overview

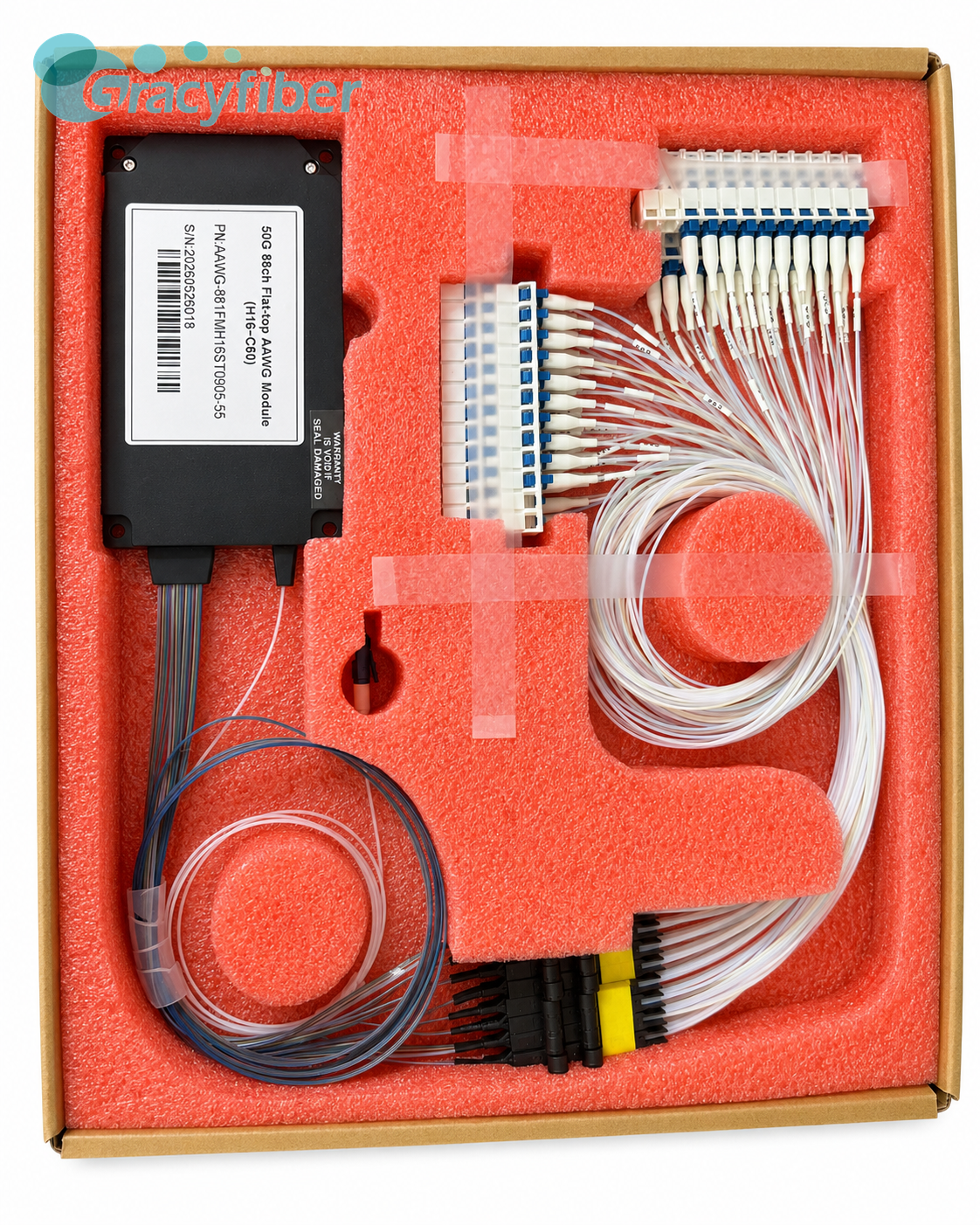

This product is the AAWG-40-LL 40-wavelength 100GHz DWDM AAWG module, featuring a flat-top AAWG design covering channels C21–C60.

2. Core Product Features
Parameters Unit 48CH 100G DWDM AAWG Module
Channel CH 48 (C14~C61)
Chip type / Flat Top
Operating wavelength nm 1525~1565
Channel Spacing GHz 100
Channel Pass band nm ITU±0.11
Insertion Loss dB ≤5.8 (典型值≤5.5)
Bandwidth@1dB nm ≥0.4
Bandwidth@3dB nm ≥0.6
Adjacent Isolation dB ≥23
Non-adjacent Isolation dB ≥29
Non-adjacent Crosstalk dB ≥21
Return Loss dB ≥45
Directivity dB ≥50
Channel Uniformity dB ≤1.5
Ripple dB ≤0.5
PDL dB ≤0.5
Chromatic Dispersion ps/nm ±20
Operating Temperature °C -5~+65
Packaging dimension mm L120*W70*H11
  • 40-wavelength DWDM channel design
  • Flat-top AAWG structure
  • Low insertion loss performance
  • Excellent isolation and low crosstalk
  • Engineering-engineered packaging and fiber output configuration
3. Applications
  • 100G integrated wavelength division multiplexing transmission systems
  • DWDM dense wavelength division multiplexing/demultiplexing systems
  • Metropolitan area networks, backbone networks, and carrier optical transmission networks
  • Data center interconnection and high-capacity link expansion
  • Integration of optical transmission equipment, wavelength division platforms, and subsystems
  • Multi-wavelength optical signal testing, monitoring, and laboratory verification platforms
