12x1x2 FWDM Module LC APC COM PASS 12F MPO APC Reflect Port 1650nm OTDR Monitoring for Optical Line Protection
12x1x2 FWDM Module LC APC COM PASS 12F MPO APC Reflect Port 1650nm OTDR Monitoring for Optical Line Protection
12x1x2 FWDM Module LC APC COM PASS 12F MPO APC Reflect Port 1650nm OTDR Monitoring for Optical Line Protection
12x1x2 FWDM Module LC APC COM PASS 12F MPO APC Reflect Port 1650nm OTDR Monitoring for Optical Line Protection
Specifications
Model Number :
PTT-109
Operating Wavelength :
1260-1660 nm
Pass Band :
1260-1620 nm
Reflect Band :
1640-1660 nm
Maximum Power :
500 mW
Description

12x1x2 FWDM Module LC APC COM PASS 12F MPO APC Reflect Port 1650nm OTDR Monitoring for Optical Line Protection

1. Product Overview

The 12×(1×2) FWDM module supports 1260~1620nm data band transmission and 1650±10nm OTDR monitoring band reflection, suitable for data service transmission and online monitoring of fiber optic links.

2. Core Product Features
Parameters Specifications Unit
Operating Wavelength 1260-1660 nm
Pass band Wavelength 1260-1620 nm
Reflect band Wavelength 1640-1660 nm
Insertion Loss1 COM<-->Pass ≤1.0 dB
COM<-->Reflect ≤0.8 dB
Isolation Pass Channel ≥40 dB
Reflect Channel ≥15 dB
Insertion Loss Temperature Sensitivity ≤0.5 dB
Wavelength Temperature Shifting ≤0.002 nm/℃
Polarization Dependent Loss ≤0.1 dB
Polarization Mode Dispersion ≤0.15 ps
Ripple ≤0.5 dB
Directivity ≥55 dB
Return Loss ≥50 dB
Maximum Power Handing 500 mW
  • 12×(1×2) FWDM Cascade Structure
  • Transmission Band: 1260~1620nm, Reflection Band: 1640~1660nm
  • Low Insertion Loss: COM↔PASS≤1.0dB, COM↔Reflect≤0.8dB
  • High Isolation: Pass Channel≥40dB, Reflect Channel≥15dB
  • COM/PASS End: LC/APC, Reflect End: 12F MPO/APC Female
  • G657A2 Fiber, Maximum Power Capacity: 500mW
  • Operating Temperature: -40~+85℃, Suitable for Harsh Environments
  • ABS Box Packaging Dimensions: L100×W80×H10mm
3. Application Scope
  • PON/FTTx Optical Access Networks
  • OTDR Online Monitoring System
  • ODN Optical Distribution Network
  • Fiber Optic Link Fault Location and Maintenance
  • Data Service and Monitoring Wavelength Multiplexing System
  • Carrier Fiber Optic Network Monitoring System
  • Integration of Optical Communication Equipment and Line Monitoring Modules

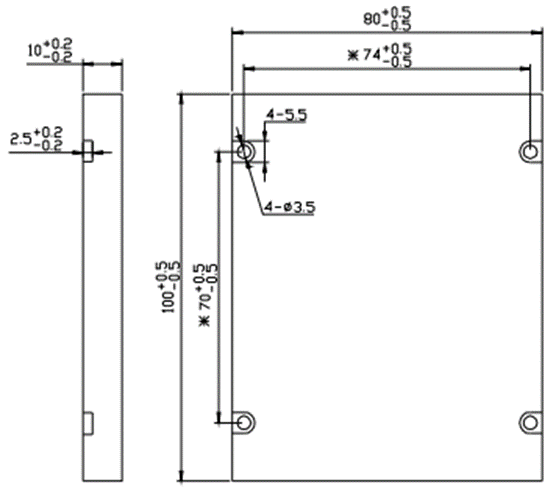

4. Mechanical Dimensions

12x1x2 FWDM Module LC APC COM PASS 12F MPO APC Reflect Port 1650nm OTDR Monitoring for Optical Line Protection

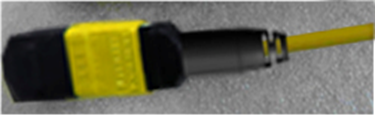

5. MPO Boot Diagram

12x1x2 FWDM Module LC APC COM PASS 12F MPO APC Reflect Port 1650nm OTDR Monitoring for Optical Line Protection

12x1x2 FWDM Module LC APC COM PASS 12F MPO APC Reflect Port 1650nm OTDR Monitoring for Optical Line Protection
