2CH FWDM Module 1310 1490 1550nm Fiber Optic WDM Filter Low Insertion Loss SC UPC FC APC for PON CATV FTTx Network
2CH FWDM Module 1310 1490 1550nm Fiber Optic WDM Filter Low Insertion Loss SC UPC FC APC for PON CATV FTTx Network
2CH FWDM Module 1310 1490 1550nm Fiber Optic WDM Filter Low Insertion Loss SC UPC FC APC for PON CATV FTTx Network
2CH FWDM Module 1310 1490 1550nm Fiber Optic WDM Filter Low Insertion Loss SC UPC FC APC for PON CATV FTTx Network
Specifications
Insertion Loss :
< 1.5 dB
Isolation :
> 40 dB (1550nm), > 35 dB (1260~1500nm)
Operating Wavelength :
1535~1565 nm (1550), 1260~1500 nm (13/14)
Dimensions :
80*58*8 mm
Description
2CH FWDM Module 1310 1490 1550nm Fiber Optic WDM Filter Low Insertion Loss SC UPC FC APC for PON CATV FTTx Network
1. Product Overview

Gracyfiber manufactures high-isolation 2-channel FWDM (Wavelength Division Multiplexing) modules, specifically designed for efficient multiplexing/demultiplexing of 1550nm video/RF signals and 1310/1490nm data signals.

2CH FWDM Module 1310 1490 1550nm Fiber Optic WDM Filter Low Insertion Loss SC UPC FC APC for PON CATV FTTx Network

2. Product Features
  • Customized High-Isolation Dual-Piece Process: The 1550nm transmit end uses a dual-piece design to ensure ISO > 40 dB.
  • Strict Isolation Testing Standards: 13/14 (1260~1500nm) reflective ends ISO > 35 dB.
  • Extremely Low Insertion Loss: Overall module IL < 1.5 dB.
  • High-Precision Device Tuning: 1550nm wavelength transmit tuning IL < 0.6 dB; 1310/1490nm wavelength reflective tuning IL < 0.25 dB.
  • Operating Wavelengths: Port 1 (1550): 1535~1565 nm; Port 2 (13/14): 1260~1500 nm.
  • Mixed Connector Configurations: COM and 13/14 ports configured with SC/UPC; 1550 port configured with FC/APC.
  • 0.9mm White Loose Tube Custom Pigtail (1 meter long)

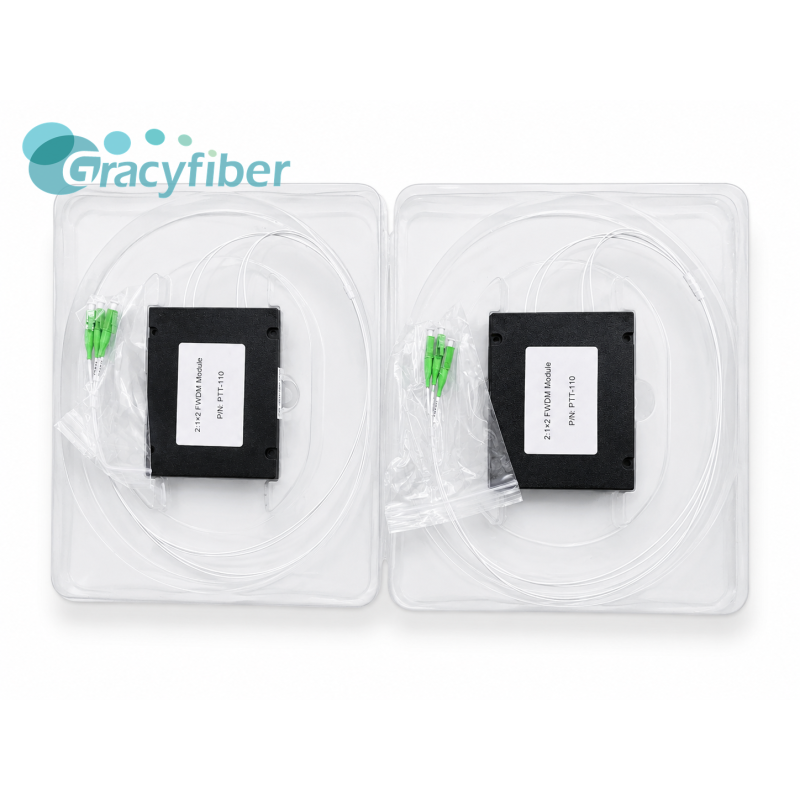

  • 80*58*8 mm Compact ABS Encapsulation Box
  • Complete Factory Test Report Provided (Including Key Indicators such as Isolation)
  • Flexible Packaging: Supports blister packs or cardboard boxes for secure shipping.
3. Applications
  • FTTx / Passive Optical Network (PON) Systems
  • Triple Play (Voice, Data, and CATV Video Signals Shared on the Same Cable)
  • High-Requirement WDM Wavelength Division Multiplexing Systems and Network Expansion
  • High-Precision Fiber Optic Communication Test and Measurement Instrument Integration
