Low Loss 850/1310nm FWDM Filter for Dual Wavelength Optical Systems
Low Loss 850/1310nm FWDM Filter for Dual Wavelength Optical Systems
Low Loss 850/1310nm FWDM Filter for Dual Wavelength Optical Systems
Low Loss 850/1310nm FWDM Filter for Dual Wavelength Optical Systems
Low Loss 850/1310nm FWDM Filter for Dual Wavelength Optical Systems
Low Loss 850/1310nm FWDM Filter for Dual Wavelength Optical Systems
Low Loss 850/1310nm FWDM Filter for Dual Wavelength Optical Systems
Low Loss 850/1310nm FWDM Filter for Dual Wavelength Optical Systems
Specifications
Wavelength range :
850nm / 1310nm
Operating bandwidth :
±50nm
Insertion loss :
0.7dB (1310nm), 0.6dB (850nm)
Isolation :
≥30dB (850nm), ≥15dB (1310nm)
Optical power :
500mW
Dimensions :
85×18×6.5mm
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Description

Low Loss 850/1310nm FWDM Filter for Dual Wavelength Optical Systems


1. Product Description

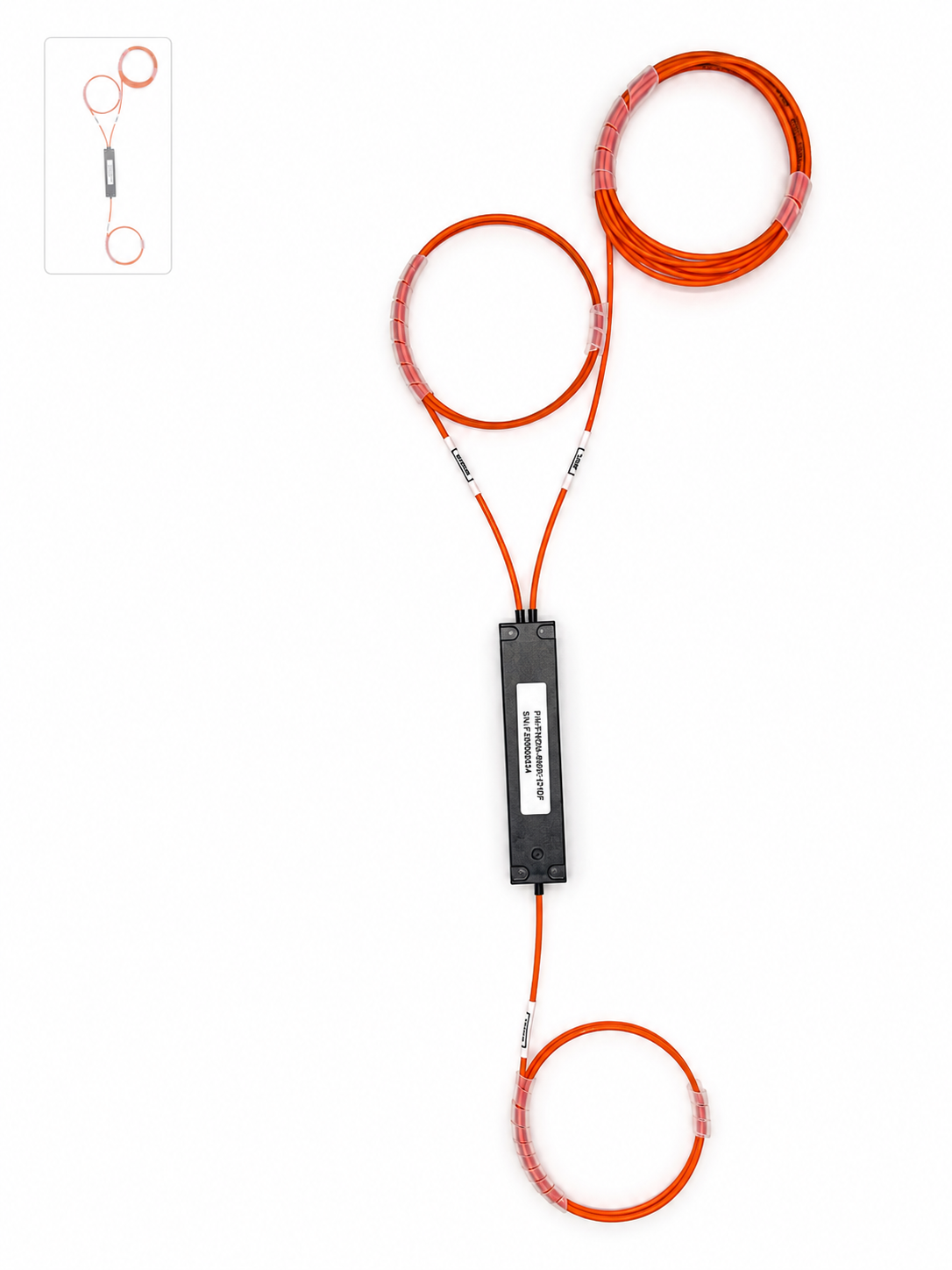

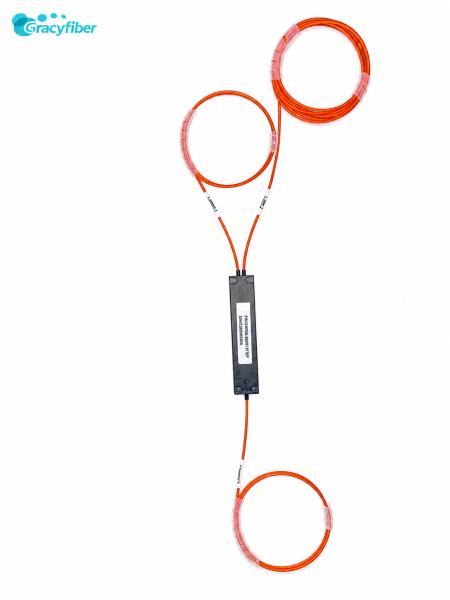

The FWDM Filter 850R/1310P is a passive filter-type wavelength division multiplexer for 850nm and 1310nm wavelength multiplexing and splitting. It is packaged in a plastic box and is suitable for achieving stable wavelength management in compact optical modules, communication equipment and monitoring links.


2. Key Features
Supports 850nm / 1310nm dual-wavelength splitting and multiplexing
1310nm transmission, 850nm reflection
Operating bandwidth ±50nm
Maximum 1310nm transmission insertion loss 0.7dB
Maximum 850nm reflection insertion loss 0.6dB
850nm transmission isolation ≥30dB
1310nm reflection isolation ≥15dB
Maximum PDL 0.1dB
Maximum optical power handling 500mW

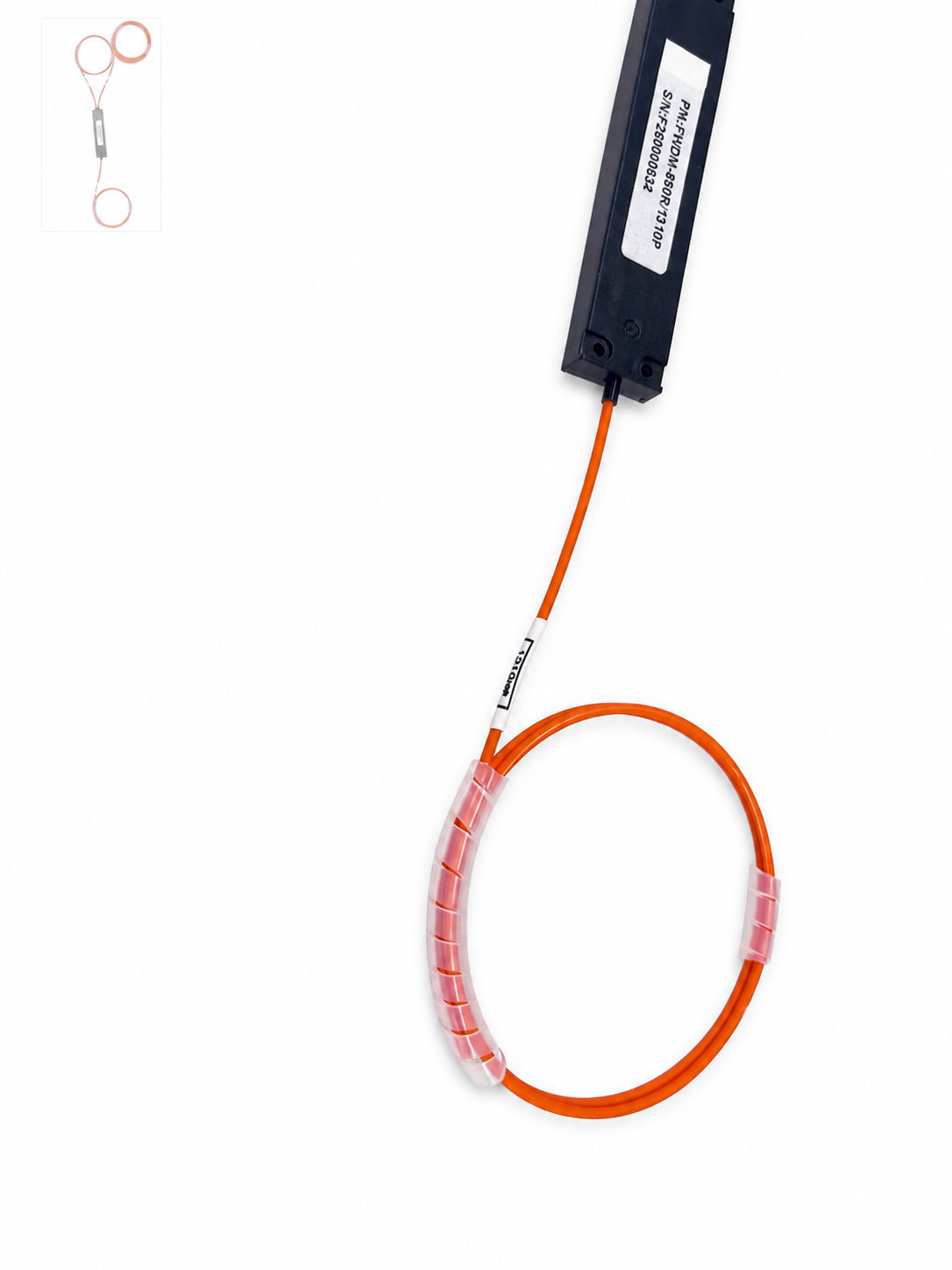

Plastic box package, dimensions 85×18×6.5mm
Connectorless structure, suitable for module integration
Operating temperature -20~70℃, storage temperature -40~85℃


3. Applications
850nm / 1310nm wavelength splitting and multiplexing
Internal integration of optical communication modules
Online optical link monitoring
Data and monitoring signal splitting
Optical test and experimental platform
OEM optical device and submodule matching



RoHS:

Material limitations
Cd 100 ppm
Hg 1000 ppm
Pb 1000 ppm
PBB 1000 ppm
PBDE 1000 ppm
Cr6+ 1000 ppm
DEHP 1000 ppm
DBP 1000 ppm
BBP 1000 ppm
DIBP 1000 ppm
