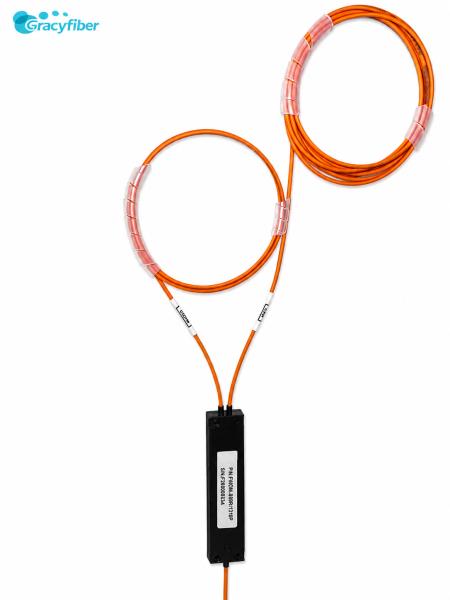

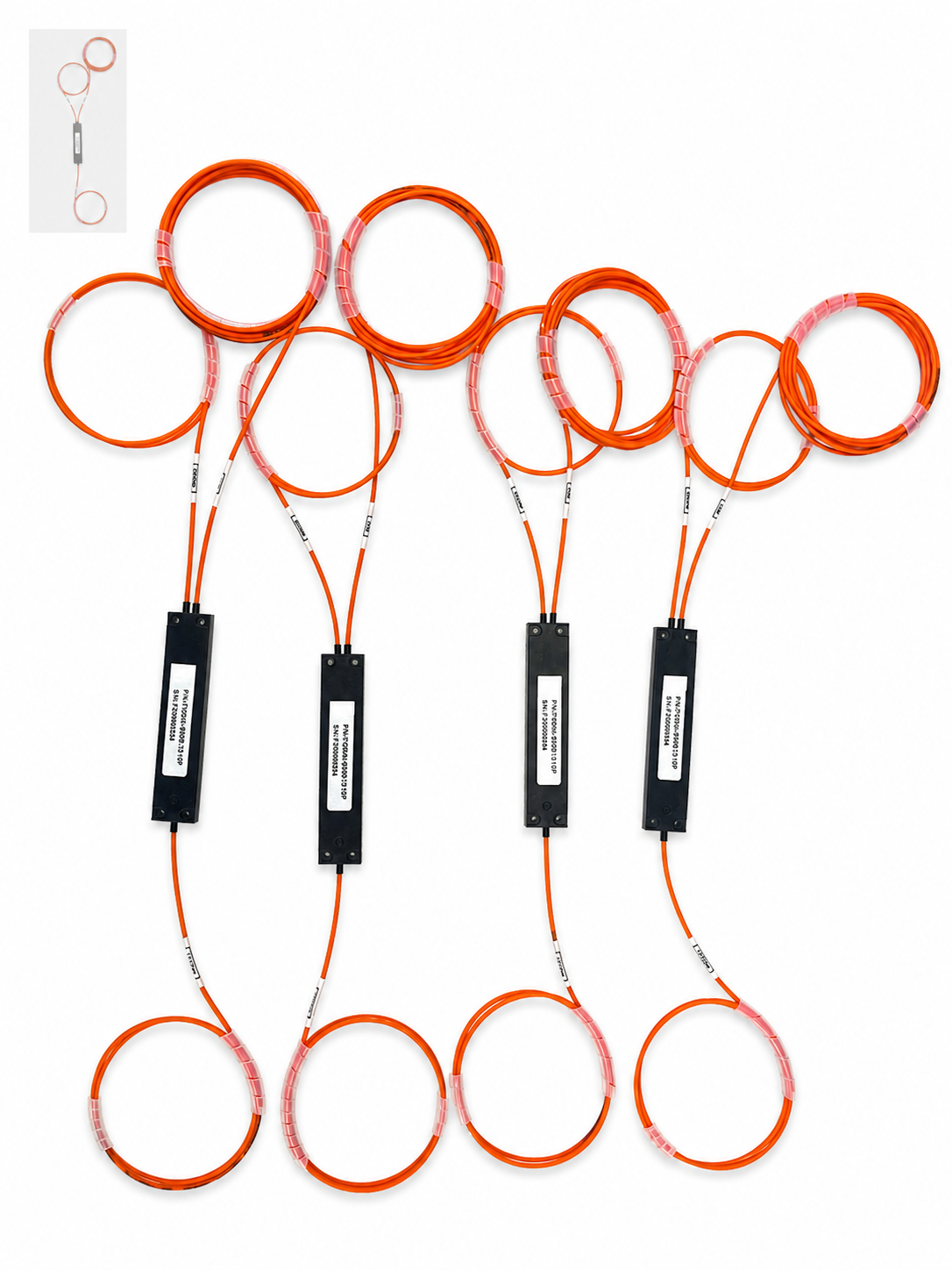

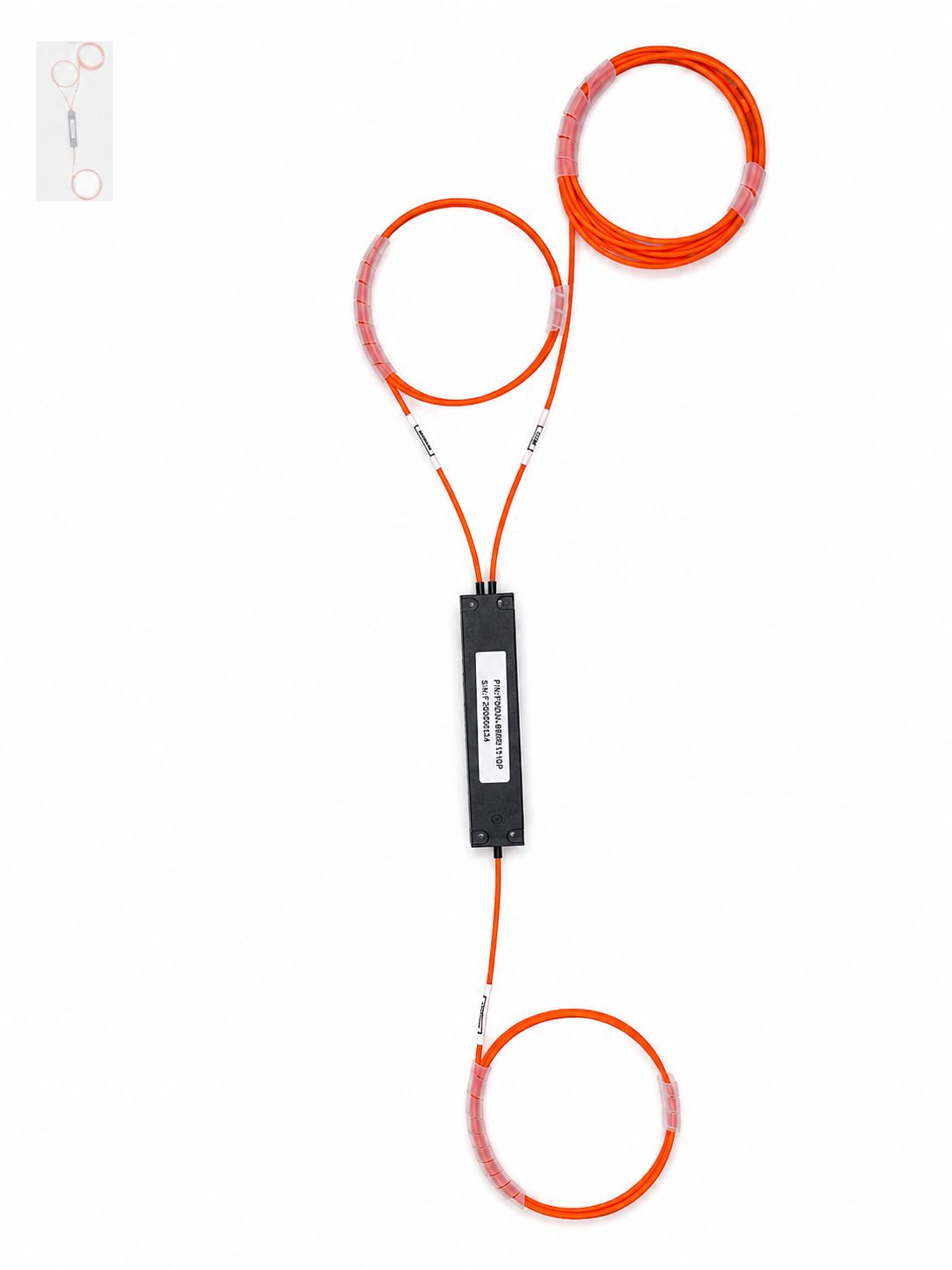

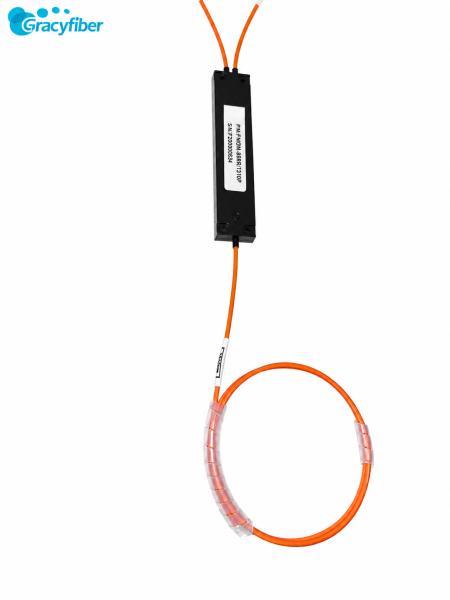

Multimode FWDM Filter 850R 1310P Low Insertion Loss WDM Filter
Multimode FWDM Filter 850R 1310P Low Insertion Loss WDM Filter
Multimode FWDM Filter 850R 1310P Low Insertion Loss WDM Filter
Multimode FWDM Filter 850R 1310P Low Insertion Loss WDM Filter
Specifications
Operating Wavelength :
850nm & 1310nm
Insertion Loss :
≤0.7dB @1310nm, ≤0.6dB @850nm
Isolation :
≥30dB @850nm, ≥15dB @1310nm
Package Size :
85 × 18 × 6.5mm
Fiber Type :
62.5/125/250μm
Operating Temperature :
-20℃ to +70℃
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Description
1. Features
  • 850nm reflection and 1310nm pass FWDM filter design
  • Low insertion loss: ≤0.7dB at 1310nm, ≤0.6dB at 850nm
  • High isolation performance for dual-wavelength optical systems
  • Compact plastic case package with no connector design
  • 62.5/125/250μm multimode fiber with PUR loose tube cable
  • RoHS compliant for global optical communication applications
2. Applications
  • 850nm / 1310nm dual-wavelength optical transmission systems
  • Optical transceiver modules and optical sub-assemblies
  • Multimode fiber communication networks
  • Fiber optic testing and measurement systems
  • Industrial optical sensing and monitoring equipment
  • OEM optical module integration
3. Specifications


Parameter Specification
Product Type FWDM Filter - 850R / 1310P
Operating Wavelength 850nm & 1310nm
Pass Wavelength 1310nm
Reflection Wavelength 850nm
Insertion Loss ≤0.7dB @1310nm, ≤0.6dB @850nm
Isolation ≥30dB @850nm, ≥15dB @1310nm
Package Size 85 × 18 × 6.5mm
Fiber Type 62.5/125/250μm
Operating Temperature -20℃ to +70℃






Multimode FWDM Filter 850R 1310P Low Insertion Loss WDM FilterMultimode FWDM Filter 850R 1310P Low Insertion Loss WDM Filter
