Low Insertion Loss 850/1310nm FWDM Optical Filter for Multimode Fiber WDM Applications
Low Insertion Loss 850/1310nm FWDM Optical Filter for Multimode Fiber WDM Applications
Low Insertion Loss 850/1310nm FWDM Optical Filter for Multimode Fiber WDM Applications
Low Insertion Loss 850/1310nm FWDM Optical Filter for Multimode Fiber WDM Applications
Low Insertion Loss 850/1310nm FWDM Optical Filter for Multimode Fiber WDM Applications
Low Insertion Loss 850/1310nm FWDM Optical Filter for Multimode Fiber WDM Applications
Specifications
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Description

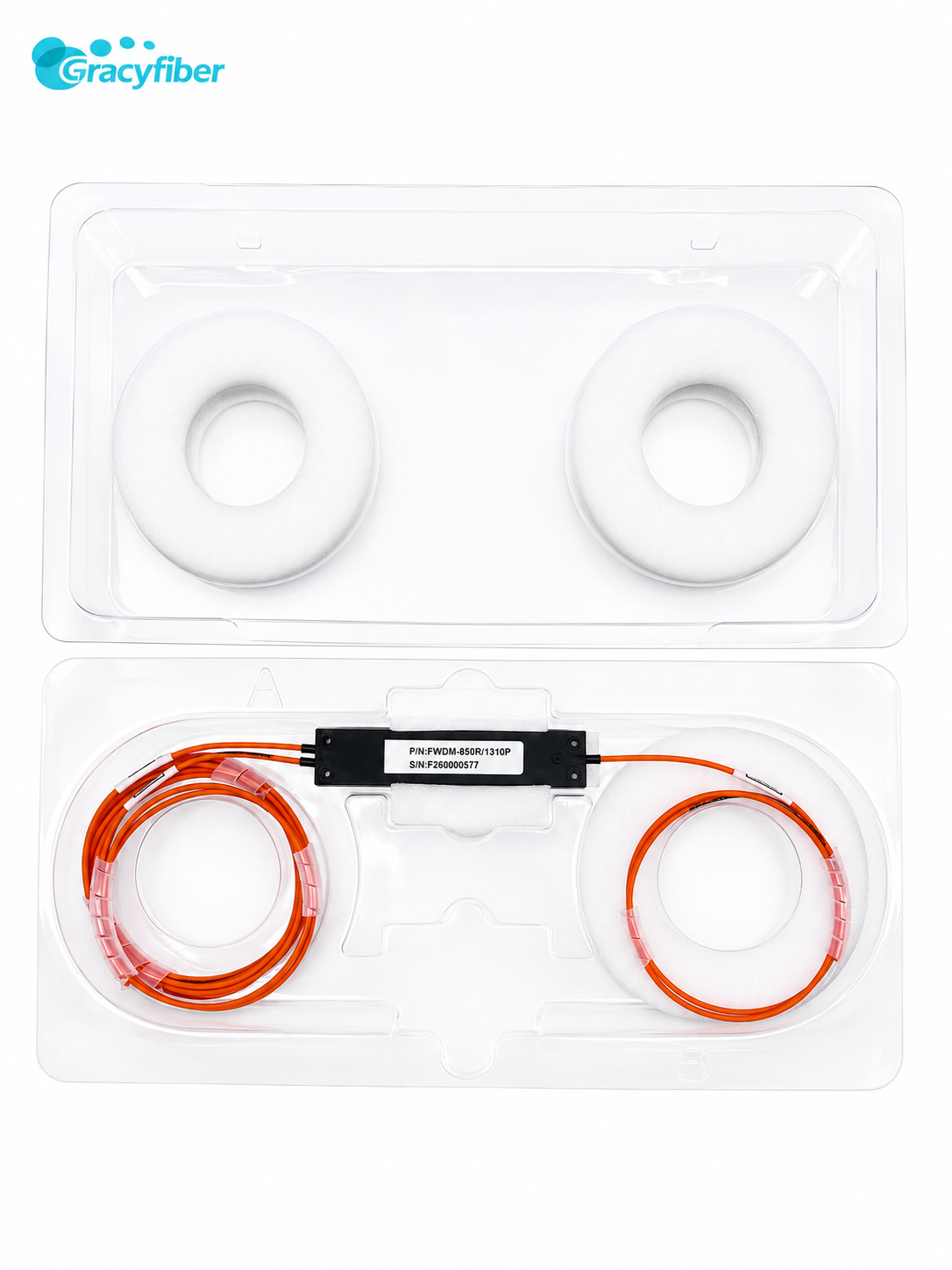

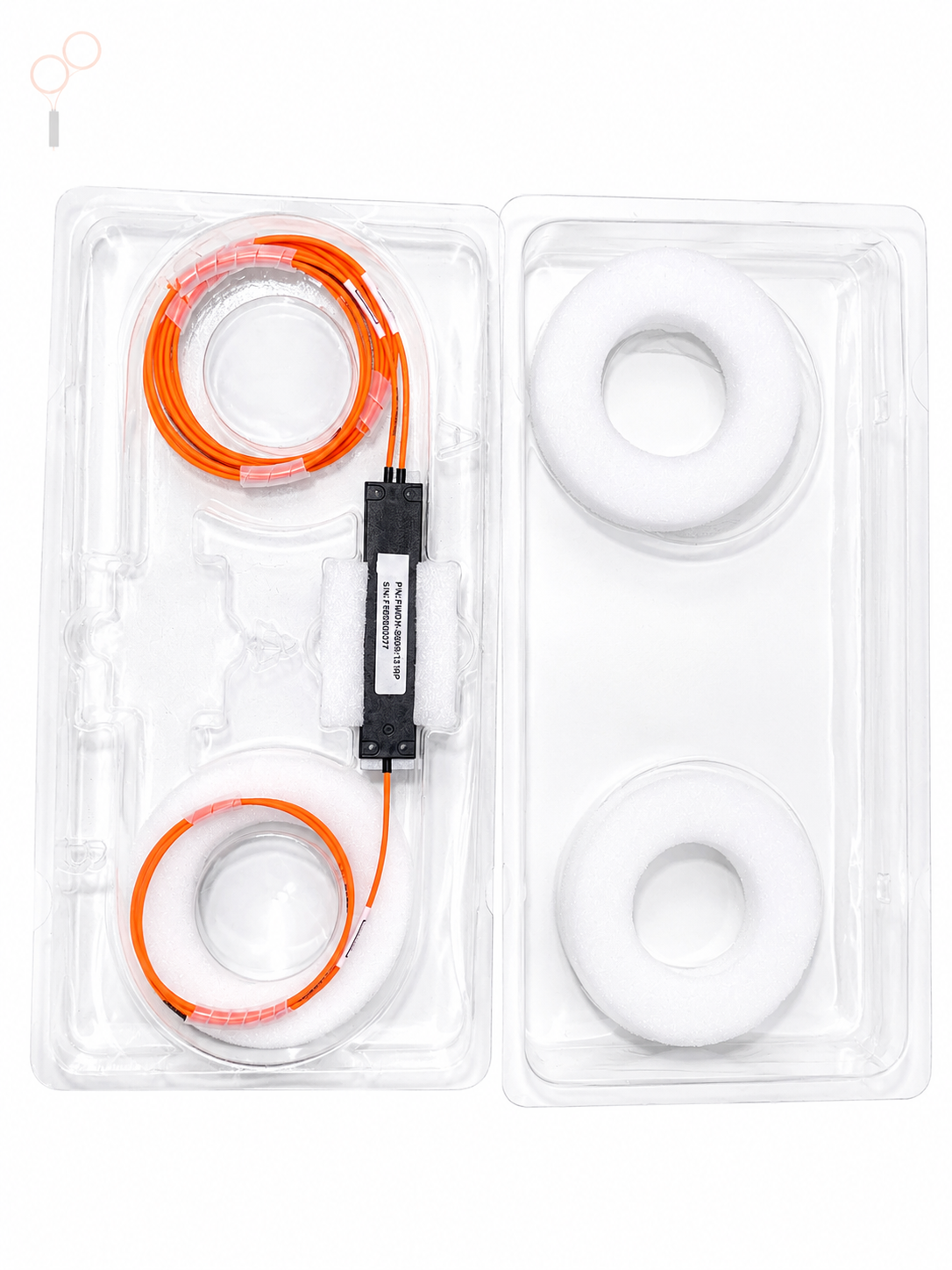

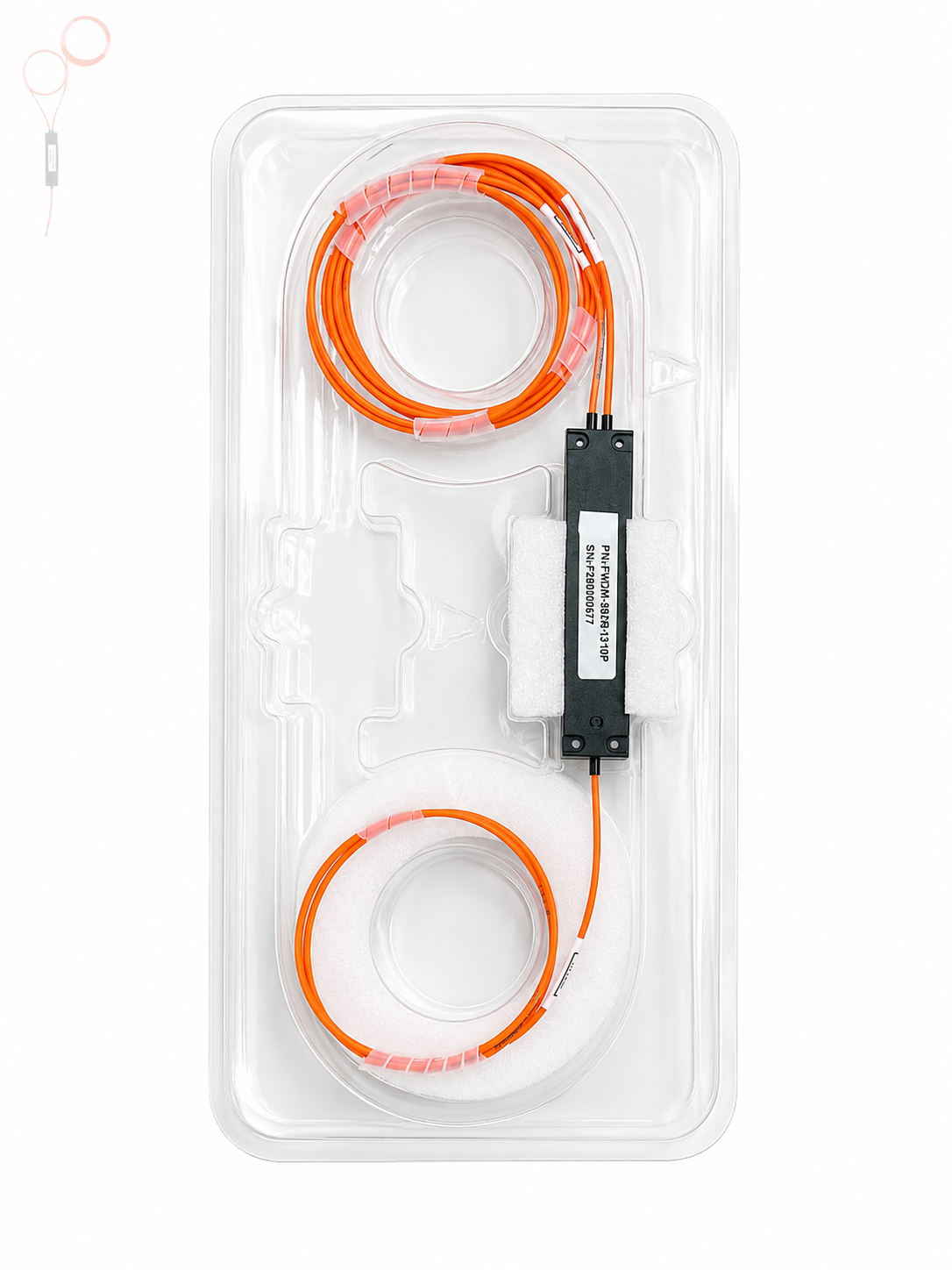

Low Insertion Loss 850/1310nm FWDM Optical Filter
This multimode fiber WDM filter features 850nm reflection and 1310nm pass functionality, housed in a plastic case specifically designed for optical modules.
Low Insertion Loss 850/1310nm FWDM Optical Filter for Multimode Fiber WDM Applications
Optical Performance Specifications
Parameter Unit Specifications
Operating Wavelength nm 850 & 1310
Operating Bandwidth nm ±50
Transmission (PASS) Wavelength nm 1310
Reflection (REF) Wavelength nm 850
Transmission Insertion Loss at 1310nm Max dB 0.7
Reflection Insertion Loss at 850nm Max dB 0.6
Transmission Insertion Isolation at 850nm Min dB 30.0
Reflection Insertion Isolation at 1310nm Min dB 15.0
Applications
  • Internal components of optical communication equipment
  • Internal components of optical modules
  • Internal components of testing equipment
  • Fiber optic sensing equipment
  • Industrial fiber optic systems
Low Insertion Loss 850/1310nm FWDM Optical Filter for Multimode Fiber WDM Applications Low Insertion Loss 850/1310nm FWDM Optical Filter for Multimode Fiber WDM Applications
