TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring
TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring
TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring
TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring
TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring
TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring
Specifications
Operating Wavelength :
1310nm / 1550nm
TAP Ratio :
1:99, 2:98, 3:97, 5:95
Insertion Loss :
≤0.4dB / ≤0.5dB
Responsivity :
8-12 / 16-24 / 24-36 / 40-60mA/W
Return Loss :
≥45dB
Package Dimension :
Φ5.5×17mm, Φ3.2×17mm
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Description

1. Features

  • Compact TAP photodetector with normal and mini package options
  • Fast response with ≥1.5GHz bandwidth
  • Low dark current ≤1.0nA @25℃, 5V
  • Low insertion loss and low polarization dependent loss
  • Multiple TAP ratios available: 1:99, 2:98, 3:97, 5:95
  • Telcordia GR-1221 and GR-1071 referenced design

2. Applications

  • Optical power monitoring
  • WDM optical communication systems
  • Optical amplifier monitoring
  • Fiber sensor systems
  • Optical instruments and test equipment
  • 1310nm / 1550nm fiber optic networks

TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring

3. Specifications

  • Operating Wavelength: 1310nm / 1550nm
  • TAP Ratio: 1:99, 2:98, 3:97, 5:95
  • Insertion Loss: ≤0.4dB / ≤0.5dB, excluding connectors
  • Responsivity: 8–12 / 16–24 / 24–36 / 40–60mA/W
  • Return Loss: ≥45dB

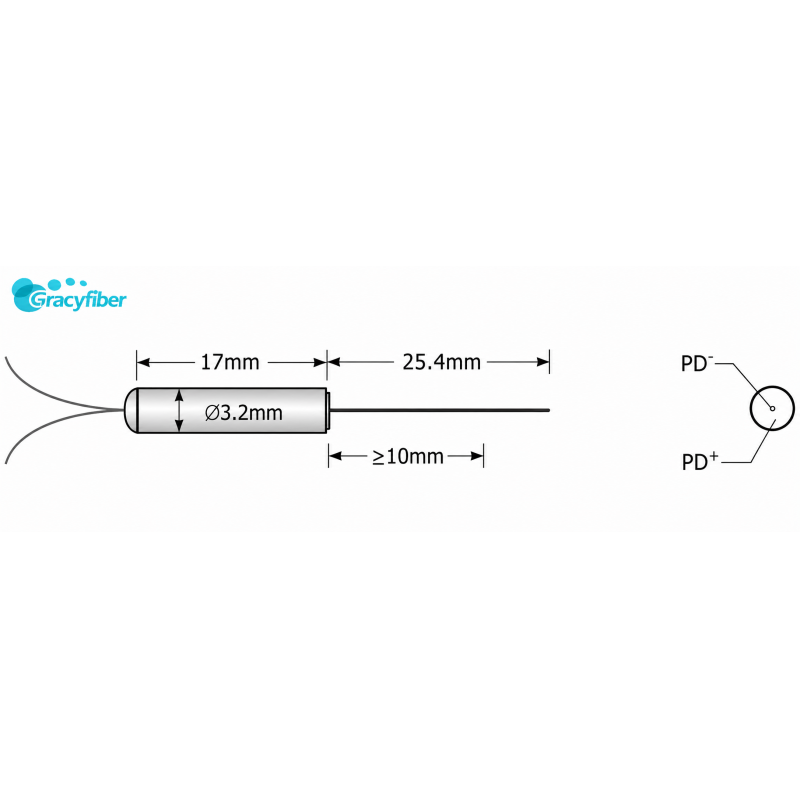

  • Package Dimension: Normal Φ5.5×17mm, Mini Φ3.2×17mm

TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring

Send your message to this supplier
Send Now

TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring

Ask Latest Price
Product Detail
Operating Wavelength :
1310nm / 1550nm
TAP Ratio :
1:99, 2:98, 3:97, 5:95
Insertion Loss :
≤0.4dB / ≤0.5dB
Responsivity :
8-12 / 16-24 / 24-36 / 40-60mA/W
Return Loss :
≥45dB
Package Dimension :
Φ5.5×17mm, Φ3.2×17mm
Contact Supplier
TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring
TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring
TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring

Shenzhen Gracyfiber Technology Co., Ltd.

Verified Supplier
2 Years
guangdong, shenzhen
Since 2014
Business Type :
Manufacturer
Main Products :
Polarization Maintaining, WDM & Optical Filtering, Optical Fiber Array
Employee Number :
150~200
Certification Level :
Verified Supplier
