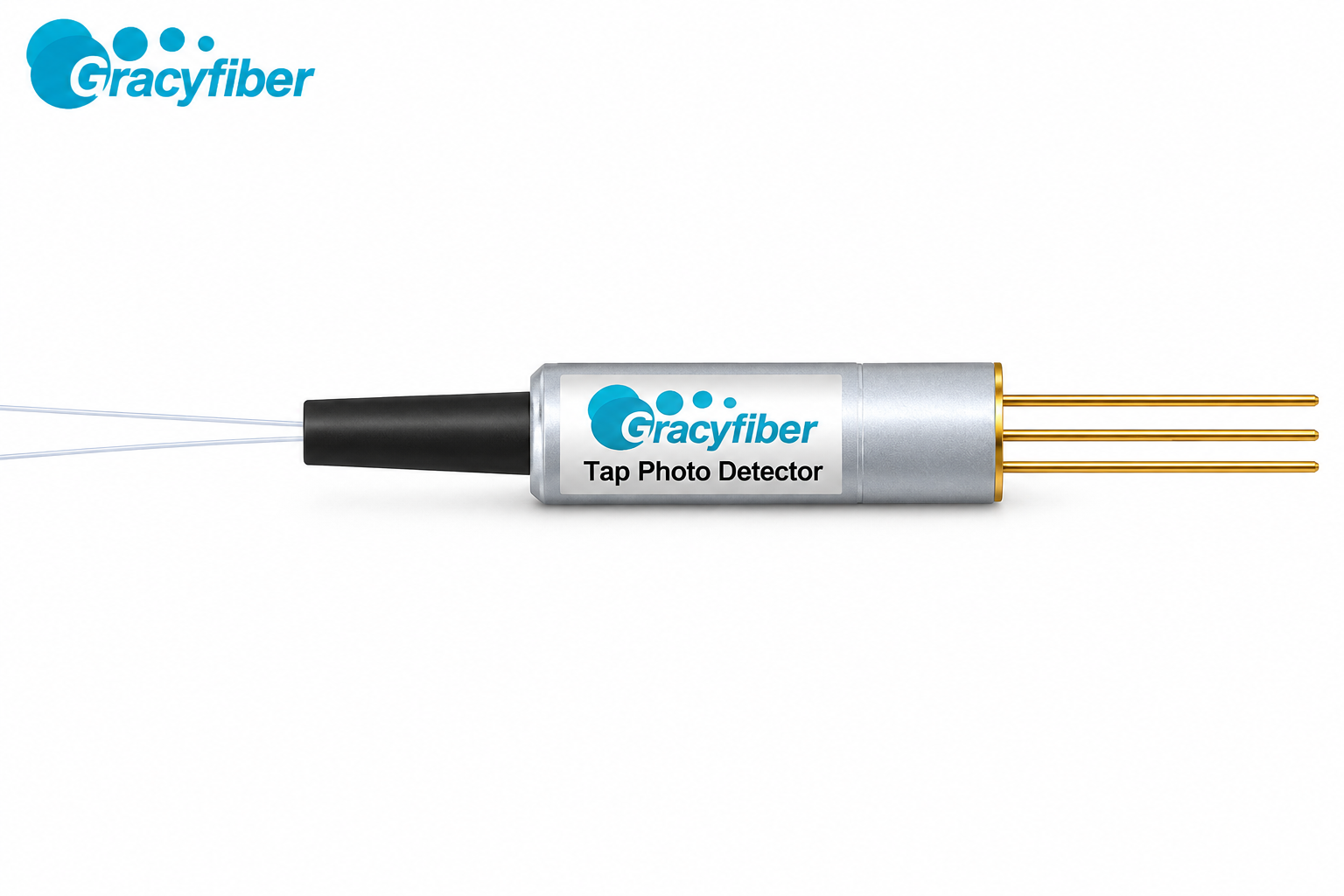

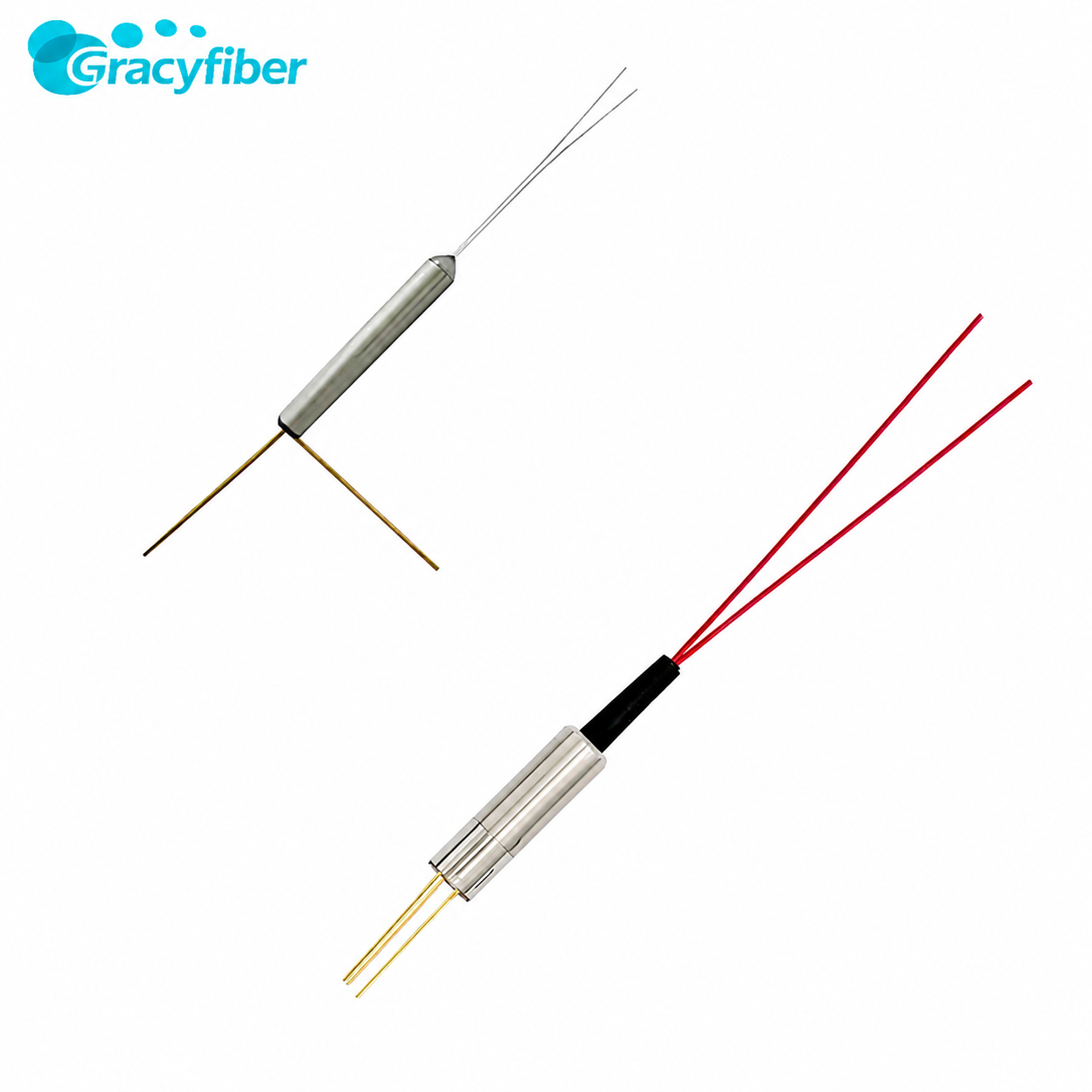

1:99 Tap PD,3:97 Tap PD,5:95 Tap PD
1:99 Tap PD,3:97 Tap PD,5:95 Tap PD
1:99 Tap PD,3:97 Tap PD,5:95 Tap PD
1:99 Tap PD,3:97 Tap PD,5:95 Tap PD
Specifications
Wavelength Range :
1260-1620nm
Tap Ratio :
1:99, 3:97, 5:95
Insertion Loss :
0.35dB / 0.4dB / 0.5dB
Extinction Ratio :
≥18dB @23℃
Return Loss :
≥45dB
Connector Type :
FC/APC
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Description

1. Features

  • Polarization maintaining PM tap photodetector design
  • Low insertion loss and low dark current
  • Low WDL and PDL for stable signal monitoring
  • Available tap ratios: 1:99, 3:97, 5:95
  • FC/APC connector and Corning PM1310 Panda fiber
  • Slow axis working, fast axis blocked
  • 1:99 Tap PD,3:97 Tap PD,5:95 Tap PD

2. Applications

  • DWDM channel monitoring
  • Optical line protection monitoring
  • ROADM multiplexers
  • Optical amplifier gain monitoring
  • PM fiber optical power monitoring
  • Fiber optic test and measurement systems

3. Specifications

  • Wavelength Range: 1260–1620nm
  • Tap Ratio: 1:99, 3:97, 5:95
  • Insertion Loss: 0.35dB / 0.4dB / 0.5dB, excluding connectors
  • Extinction Ratio: ≥18dB @23℃
  • Return Loss: ≥45dB
  • P/N Example: PMTAP-3101ST10910-22, 1310nm PMF tap coupler, 1:99, 1.0m, FC/APC

1:99 Tap PD,3:97 Tap PD,5:95 Tap PD

Send your message to this supplier
Send Now

1:99 Tap PD,3:97 Tap PD,5:95 Tap PD

Ask Latest Price
Product Detail
Wavelength Range :
1260-1620nm
Tap Ratio :
1:99, 3:97, 5:95
Insertion Loss :
0.35dB / 0.4dB / 0.5dB
Extinction Ratio :
≥18dB @23℃
Return Loss :
≥45dB
Connector Type :
FC/APC
