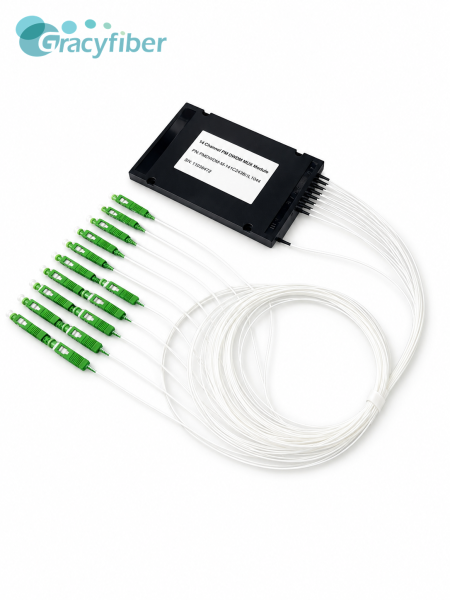

Industrial Grade C-Band Filter Component | 500mW Max Power, -40 to 85°C | Low Ripple & High Directivity >50dB | Telecom Optical Network
Industrial Grade C-Band Filter Component | 500mW Max Power, -40 to 85°C | Low Ripple & High Directivity >50dB | Telecom Optical Network
Industrial Grade C-Band Filter Component | 500mW Max Power, -40 to 85°C | Low Ripple & High Directivity >50dB | Telecom Optical Network
Industrial Grade C-Band Filter Component | 500mW Max Power, -40 to 85°C | Low Ripple & High Directivity >50dB | Telecom Optical Network
Specifications
Model Number :
953113720-21
Maximum Optical Power :
500 mW
Operating Temperature :
-40 to 85 °C
Operating Wavelength :
1520-1565 nm
Center Wavelength Accuracy :
±0.07 nm
Description

Industrial Grade C-Band Filter Component | 500mW Max Power, -40 to 85°C | Low Ripple & High Directivity >50dB | Telecom Optical Network

Product Overview
Parameters Specifications Unit
Maximum Optical Power 500 mW
Operating Temperature -40 ~ +85 °C
Storage Temperature -40 ~ +85 °C
Operating Humidity 5 ~ 95 %RH
Storage Humidity 5 ~ 95 %RH

C-band DWDM thin-film filters cover operating wavelengths of 1520–1565nm, supporting high-precision center wavelength control and narrow passband filtering.

Product Features
  • C-band DWDM Filter
  • Operating Wavelength: 1520–1565nm
  • Center Wavelength Accuracy: ±0.07nm
  • Passband: ±0.125nm
  • Transmission Insertion Loss: ≤0.6dB
  • Reflection Insertion Loss: ≤0.4dB
  • Adjacent Channel Isolation: ≥30dB
  • Non-Adjacent Channel Isolation: ≥45dB
  • Reflection Channel Isolation: ≥15dB
  • Polarization Dependent Loss: ≤0.2dB
  • Passband Ripple: ≤0.5dB
  • Return Loss: ≥45dB
  • Directivity: ≥50dB
  • Corning SMF-28 Ultra Fiber
Applications
  • DWDM Wavelength Division Multiplexing Systems
  • C-band Optical Transmission Networks
  • Optical Add-Drop Multiplexers (OADM)
  • ROADM Optical Network Systems
  • Optical Module and Device Packaging
  • Optical Signal Channel Selection and Separation
  • Optical Line Monitoring Systems
  • Metropolitan Area Networks and Long-Distance Transmission Systems
  • Laboratory Optical Communication Test Platforms
  • Customized Passive Optical Device Integration
