Specifications
Model Number :
953113720-21
Description

C-Band Optical Filter 1520-1565nm | High Isolation >30dB, Low IL <0.6dB | Corning SMF-28 Ultra | 3.6x30mm Glass Tube for DWDM

1. Product Overview

This high-performance C-band DWDM filter is designed for high-capacity optical communication networks, precisely covering the 1520-1565nm operating wavelength range.

2. Product Features

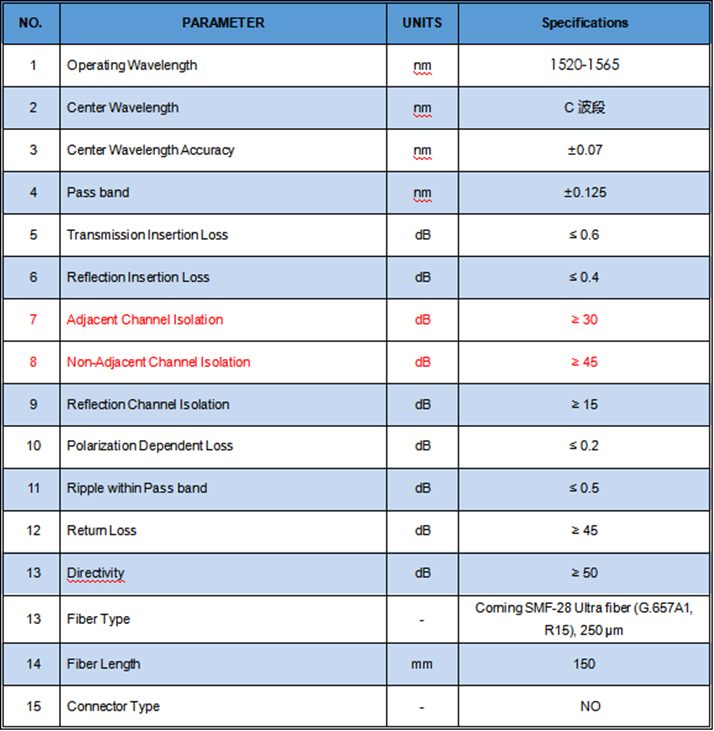

Parameters Specifications Unit
Maximum Optical Power 500 mW
Operating Temperature -40 ~ +85 °C
Storage Temperature -40 ~ +85 °C
Operating Humidity 5 ~ 95 %RH
Storage Humidity 5 ~ 95 %RH

C-Band Optical Filter 1520-1565nm | High Isolation >30dB, Low IL <0.6dB | Corning SMF-28 Ultra | 3.6x30mm Glass Tube for DWDM

  • C-band operating wavelength (1520-1565nm)
  • Ultra-low insertion loss (≤0.6 dB)
  • High adjacent channel isolation (≥30 dB)
  • High non-adjacent channel isolation (≥45 dB)
  • High directivity (≥50 dB) and return loss (≥45 dB)
  • Corning SMF-28 Ultra single-mode fiber
  • Maximum 500mW optical power carrying capacity
  • -40~+85°C industrial-grade wide temperature range operation
  • ≤φ3.6*30 mm compact glass tube package
3. Applications
  • Dense wavelength division multiplexing (DWDM) systems
  • Optical add-drop multiplexers (OADMs)
  • Long-haul trunk and metropolitan area network transmission nodes
  • Fiber optic network line monitoring systems
  • Coherent optical communication equipment and module integration
