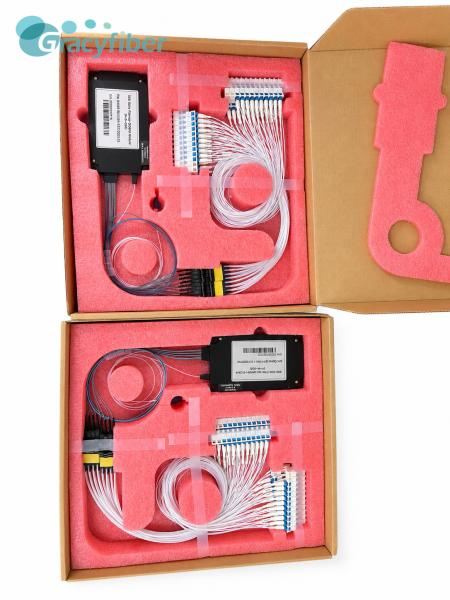

48CH 100GHz Gaussian DWDM AAWG Module | C14-C61 with 1510nm CWDM Port | Low IL ≤3.5dB, LC/UPC | 120x80x18mm ABS for 100G WDM
48CH 100GHz Gaussian DWDM AAWG Module | C14-C61 with 1510nm CWDM Port | Low IL ≤3.5dB, LC/UPC | 120x80x18mm ABS for 100G WDM
48CH 100GHz Gaussian DWDM AAWG Module | C14-C61 with 1510nm CWDM Port | Low IL ≤3.5dB, LC/UPC | 120x80x18mm ABS for 100G WDM
48CH 100GHz Gaussian DWDM AAWG Module | C14-C61 with 1510nm CWDM Port | Low IL ≤3.5dB, LC/UPC | 120x80x18mm ABS for 100G WDM
Specifications
Channel count :
48CH
Channel spacing :
100GHz
Insertion loss :
≤3.5dB
Dimensions :
120x80x18mm
Description
48CH 100GHz Gaussian DWDM AAWG Module | C14-C61 with 1510nm CWDM Port | Low IL ≤3.5dB, LC/UPC | 120x80x18mm ABS for 100G WDM
Product Overview

Gracyfiber's Gaussian 100GHz 48-channel DWDM AAWG module innovatively integrates an additional 1510nm CWDM port, specifically designed for high-capacity 100G integrated wavelength division multiplexing (WDM) systems.

Core Product Features
48CH 100GHz Gaussian DWDM AAWG Module | C14-C61 with 1510nm CWDM Port | Low IL ≤3.5dB, LC/UPC | 120x80x18mm ABS for 100G WDM
  • Gaussian 48-channel (C14-C61) hybrid multiplexing design with 1510nm CWDM
  • Excellent optical performance and ultra-low insertion loss (≤3.5dB)
  • Stepped customizable channel output fiber lengths combined with 0.9mm loose tubes
  • High-precision LC/UPC fiber optic connectors standard on all ports
  • Highly stable 120×80×18mm compact ABS box package
Application Areas
  • 100G/200G/400G integrated dense wavelength division multiplexing (DWDM) systems
  • Data Center Interconnect (DCI) and large-capacity physical layer expansion for enterprise private networks
  • Metropolitan Area Network (MAN) and long-haul backbone optical network construction
  • 5G fronthaul and midhaul high-bandwidth fiber optic network architecture
  • OTN optical transport network equipment integration and high-density optical communication rack cabling
