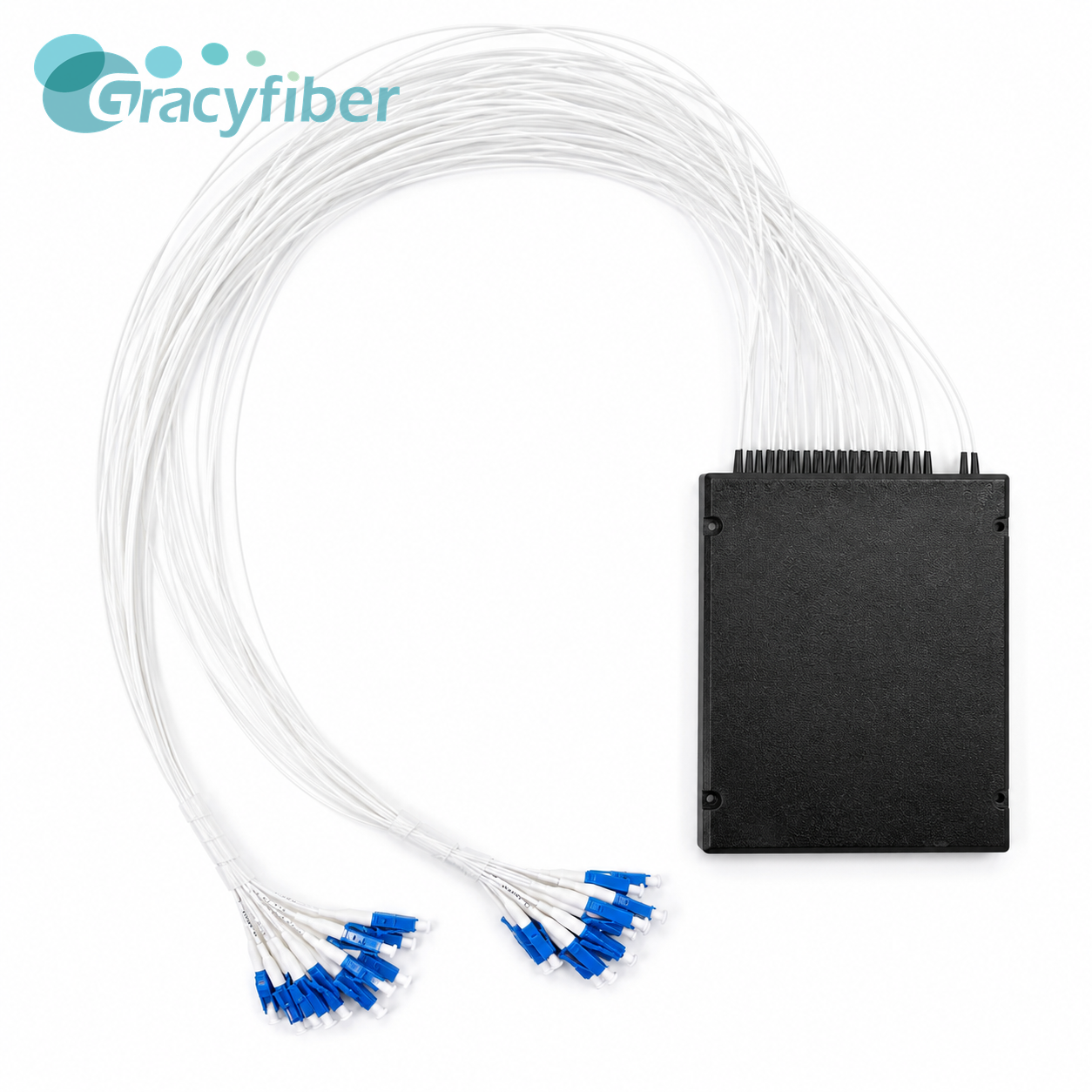

16 Channel CWDM Mux Demux 1270 1290 1310 to 1610nm LC UPC Fiber Optic Multiplexer Demultiplexer ABS Module
16 Channel CWDM Mux Demux 1270 1290 1310 to 1610nm LC UPC Fiber Optic Multiplexer Demultiplexer ABS Module
16 Channel CWDM Mux Demux 1270 1290 1310 to 1610nm LC UPC Fiber Optic Multiplexer Demultiplexer ABS Module
16 Channel CWDM Mux Demux 1270 1290 1310 to 1610nm LC UPC Fiber Optic Multiplexer Demultiplexer ABS Module
Specifications
Channel count :
16CH
Connector type :
LC/UPC
Wavelength range :
1270–1610nm
Channel spacing :
20nm
Model Number :
941009008-02
Description
1. Product Description

The 16CH CWDM Mux & Demux Module is designed to combine and separate multiple optical wavelengths over a single fiber infrastructure, supporting CWDM channels from 1270 nm to 1610 nm, excluding 1390 nm and 1410 nm.

16 Channel CWDM Mux Demux 1270 1290 1310 to 1610nm LC UPC Fiber Optic Multiplexer Demultiplexer ABS Module

2. Product Features
  • 16-channel CWDM Mux & Demux module
  • Wavelength range from 1270 nm to 1610 nm
  • 1390 nm and 1410 nm channels excluded
  • 20 nm CWDM channel spacing
  • 16 optical wavelength channels
  • Combined multiplexing and demultiplexing configuration
  • 140 * 115 * 18 mm ABS box package
  • 0.6 m fiber leads
  • 0.9 mm white loose-tube protection
  • LC/UPC connectors
  • Suitable for multi-wavelength fiber transmission
  • Compact passive optical module design
3. Applications
  • CWDM optical transmission systems
  • Fiber capacity expansion
  • Metropolitan area networks
  • Access networks
  • Broadband optical networks
  • PON network applications
  • CATV optical systems
  • Telecom transmission equipment
  • Multi-wavelength point-to-point links
  • Customized passive optical network assemblies
4. FAQ

Q1: Which wavelengths are included in this 16CH CWDM Mux & Demux Module?

The module supports 16 CWDM channels from 1270 nm to 1610 nm with 20 nm spacing, excluding the 1390 nm and 1410 nm channels. The wavelength set is therefore 1270, 1290, 1310, 1330, 1350, 1370, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, and 1610 nm.

Q2: Can the package, fiber length, or connector type be customized?

Yes. Package dimensions, fiber length, loose-tube configuration, and connector type can be configured according to the customer’s installation requirements. This version uses a 140 * 115 * 18 mm ABS enclosure, 0.6 m fiber leads with 0.9 mm white loose tubing, and LC/UPC connectors.
