40CH 100GHz DWDM AAWG Module AAWG 40 LL Flat Top C21 C60 Low Loss Fiber Optic Mux Demux LC UPC
1. Product Overview

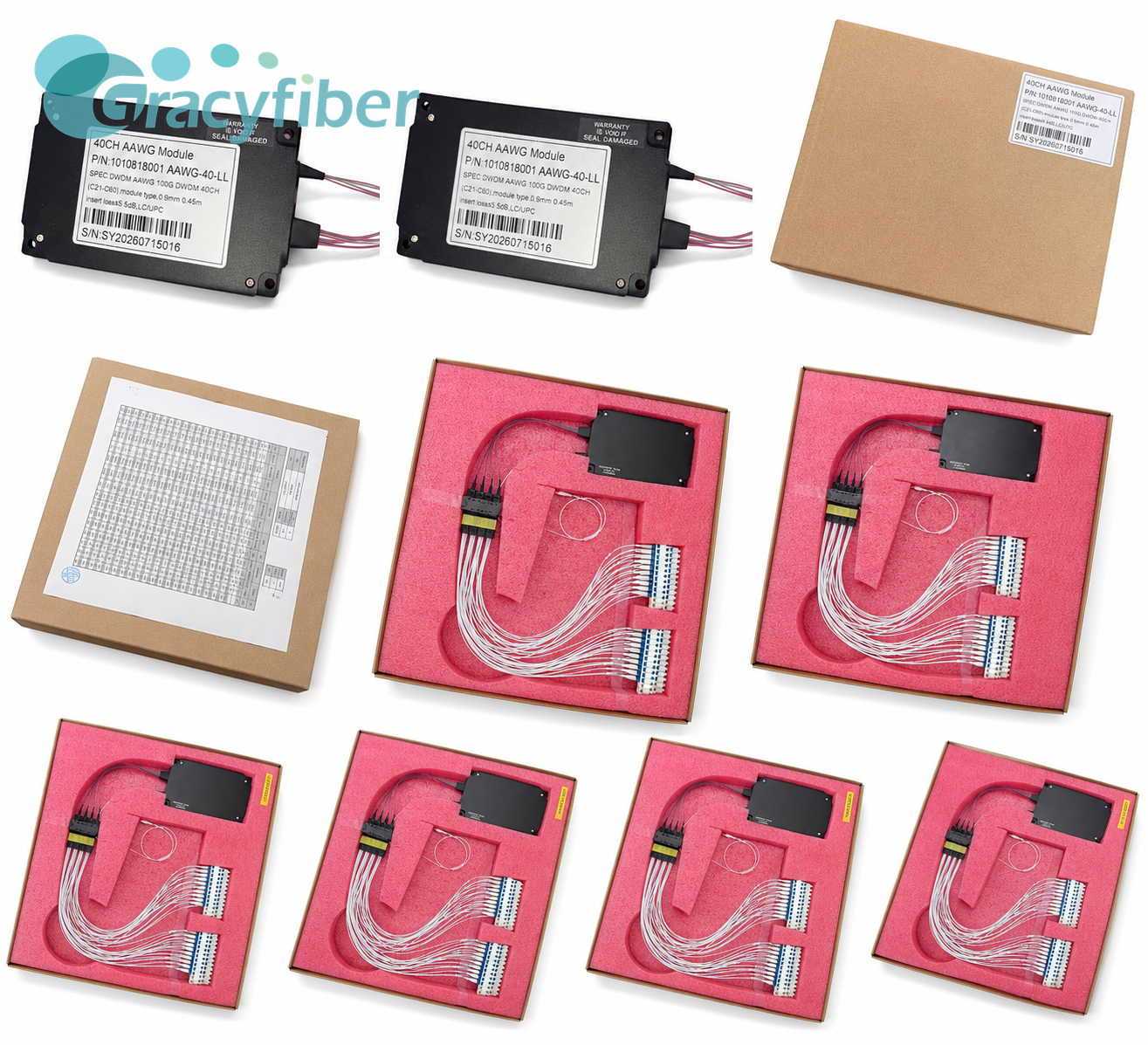

The AAWG-40-LL flat-top 100GHz DWDM 40-wavelength module covers channels C21 to C60, operating wavelengths from 1525 to 1565nm, and suitable for 100G integrated wavelength division and high-capacity DWDM optical transmission systems.

2. Core Product Features
Parameters(参数) Unit(单位) Specification(规格)
Channel CH 40(C21–C60)
Chip type — Flat Top
Operating wavelength nm 1525–1565
Channel Spacing GHz 100
Channel Pass band nm ITU ± 0.11
Insertion Loss dB ≤ 5.5
Bandwidth@1dB nm ≥ 0.4
Bandwidth@3dB nm ≥ 0.6
Adjacent Isolation dB ≥ 23
Non-adjacent Isolation dB ≥ 29
Non-adjacent Crosstalk dB ≥ 21
Return Loss dB ≥ 45
Directivity dB ≥ 50
Channel Uniformity dB ≤ 1.5
Ripple dB ≤ 0.5
Operating Temperature ℃ −5～+65
Packaging dimension mm L120 × W70 × H11
  • 40CH DWDM channels, covering C21~C60
  • Flat-top AAWG structure, 100GHz channel spacing
  • Insertion loss IL≤5.5dB
  • All interfaces are LC/UPC
  • 0.9mm fiber optic loose tubes, fiber exit length 0.45m
  • Fiber exit structure: 0.15m ribbon + 0.3m branch
  • Module dimensions L120×W70×H11mm
3. Application Scope
  • 100G integrated wavelength division multiplexing (WDM) systems
  • DWDM multiplexing/demultiplexing transmission systems
  • Metropolitan area network (MAN) and backbone network optical transmission
  • Data center interconnect (DCI)
  • High-capacity multi-wavelength optical communication systems
  • Integration of optical transmission equipment and wavelength division multiplexing systems
  • Optical network expansion and wavelength management systems
