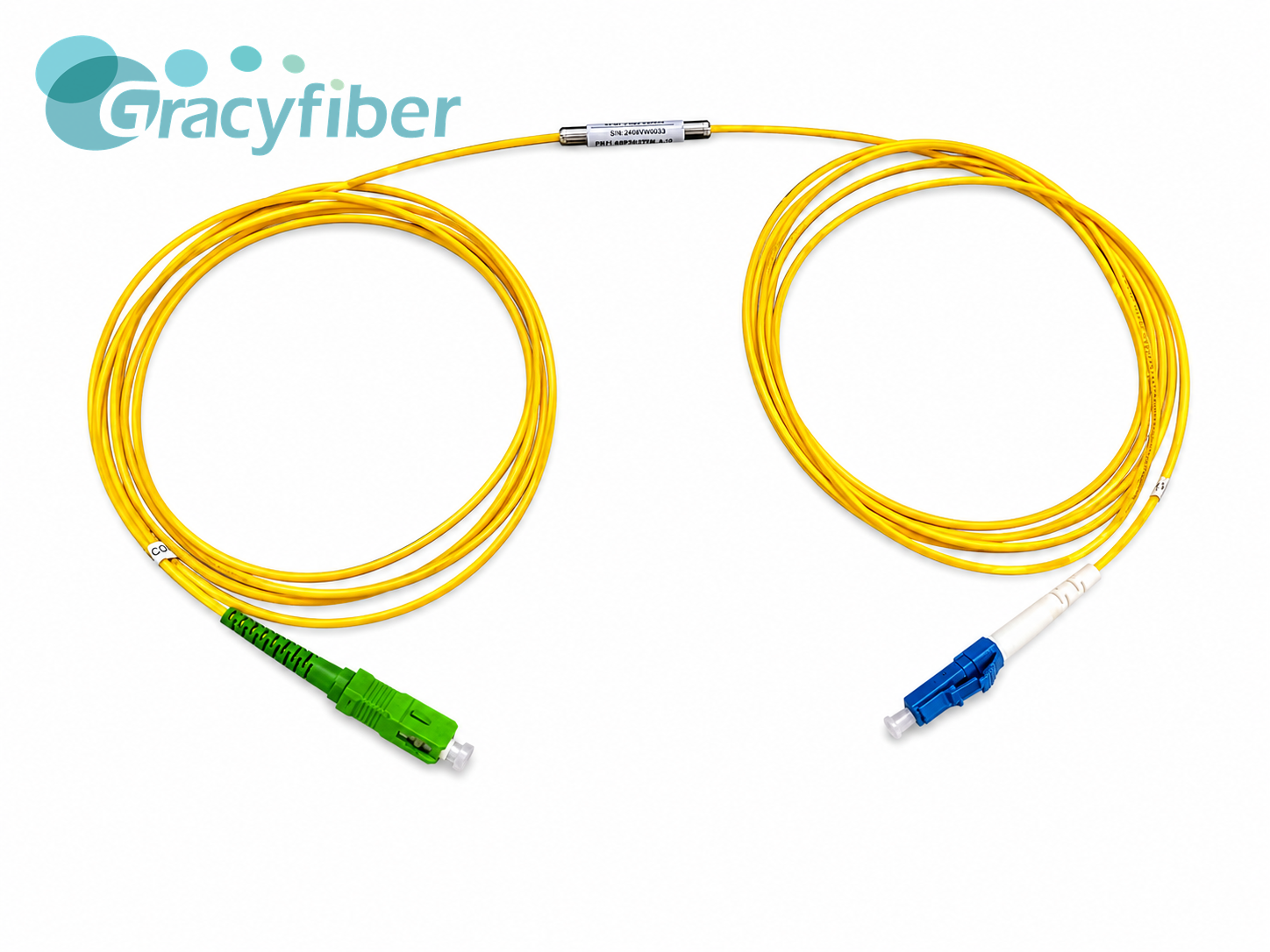

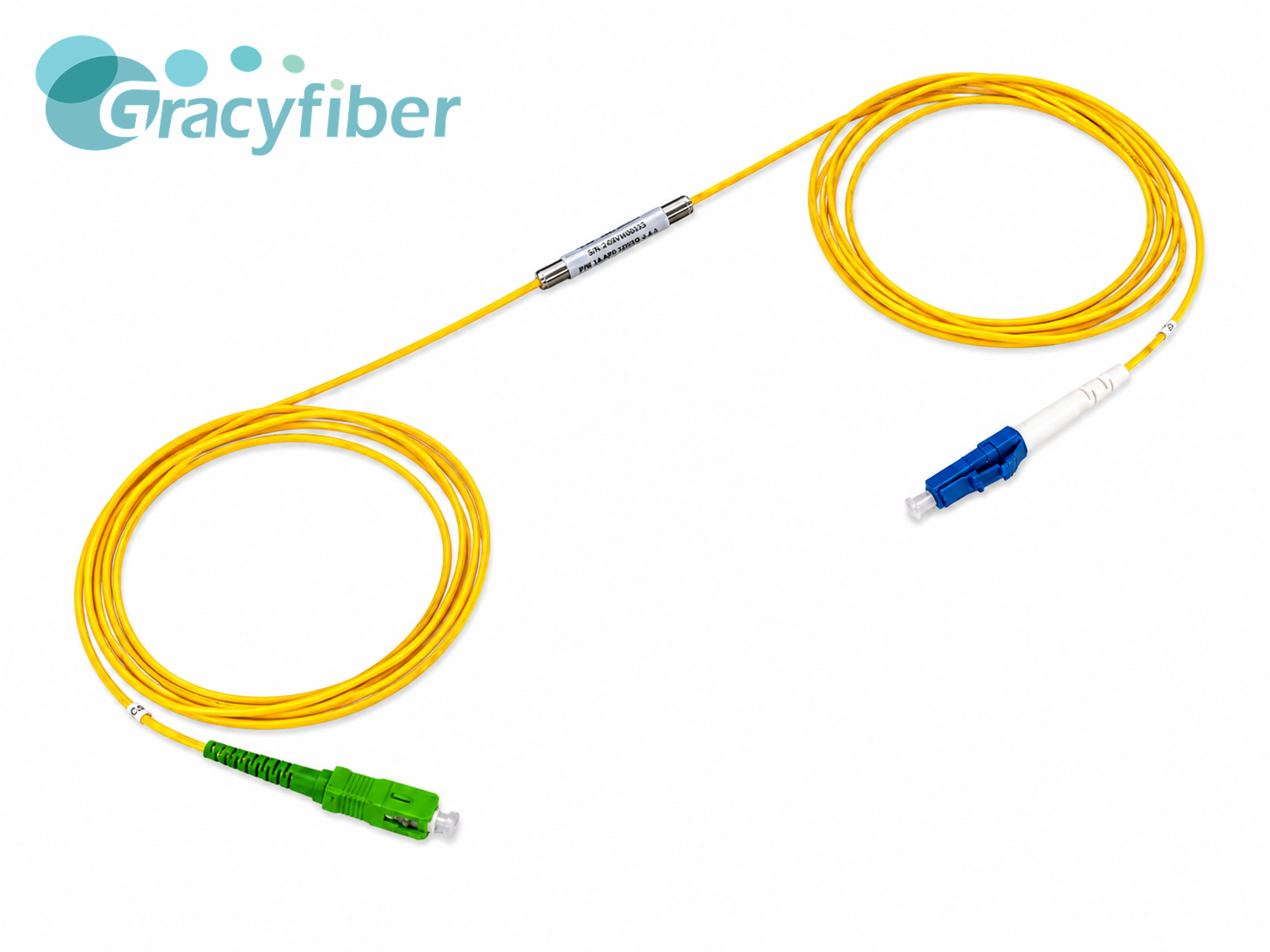

1x1 FWDM Stop Pass Filter T1260 1620nm R1650nm Fiber Optic WDM Filter SC APC LC UPC Connector Steel Tube
1x1 FWDM Stop Pass Filter T1260 1620nm R1650nm Fiber Optic WDM Filter SC APC LC UPC Connector Steel Tube
1x1 FWDM Stop Pass Filter T1260 1620nm R1650nm Fiber Optic WDM Filter SC APC LC UPC Connector Steel Tube
1x1 FWDM Stop Pass Filter T1260 1620nm R1650nm Fiber Optic WDM Filter SC APC LC UPC Connector Steel Tube
Specifications
Packaging size :
φ5.5×L40mm
Transmission band :
1260~1620nm
Reflection band :
1640~1660nm
Insertion loss :
≤1.0dB
Description
1x1 FWDM Stop Pass Filter T1260 1620nm R1650nm Fiber Optic WDM Filter SC APC LC UPC Connector Steel Tube
1×1 FWDM
1. Product Overview

The 1×1 FWDM module is used for data band transmission in the 1260~1620nm range and monitoring band separation in the 1640~1660nm range. It is suitable for service signal transmission in fiber optic links and 1650nm OTDR monitoring applications.

2. Core Product Features
  • 1×1 FWDM filter structure design
  • Transmission band: 1260~1620nm
  • Reflection/monitoring band: 1640~1660nm
  • Passband insertion loss ≤1.0dB
  • Passband isolation ≥40dB, directivity ≥55dB
  • Return loss RL≥50dB, PDL≤0.10dB
  • SMF-28e or equivalent single-mode fiber
  • SC/APC-LC/UPC connector, 2.0mm yellow loose tube
  • Steel tube packaging size φ5.5×L40mm
3. Application Scope
  • PON/FTTx optical access networks
  • 1650nm OTDR online monitoring system
  • Fiber optic link fault location and maintenance
  • Separation of data service and monitoring wavelengths
  • ODN optical distribution network construction
  • Integration of optical communication equipment and line monitoring modules
  • Carrier fiber optic network monitoring system
