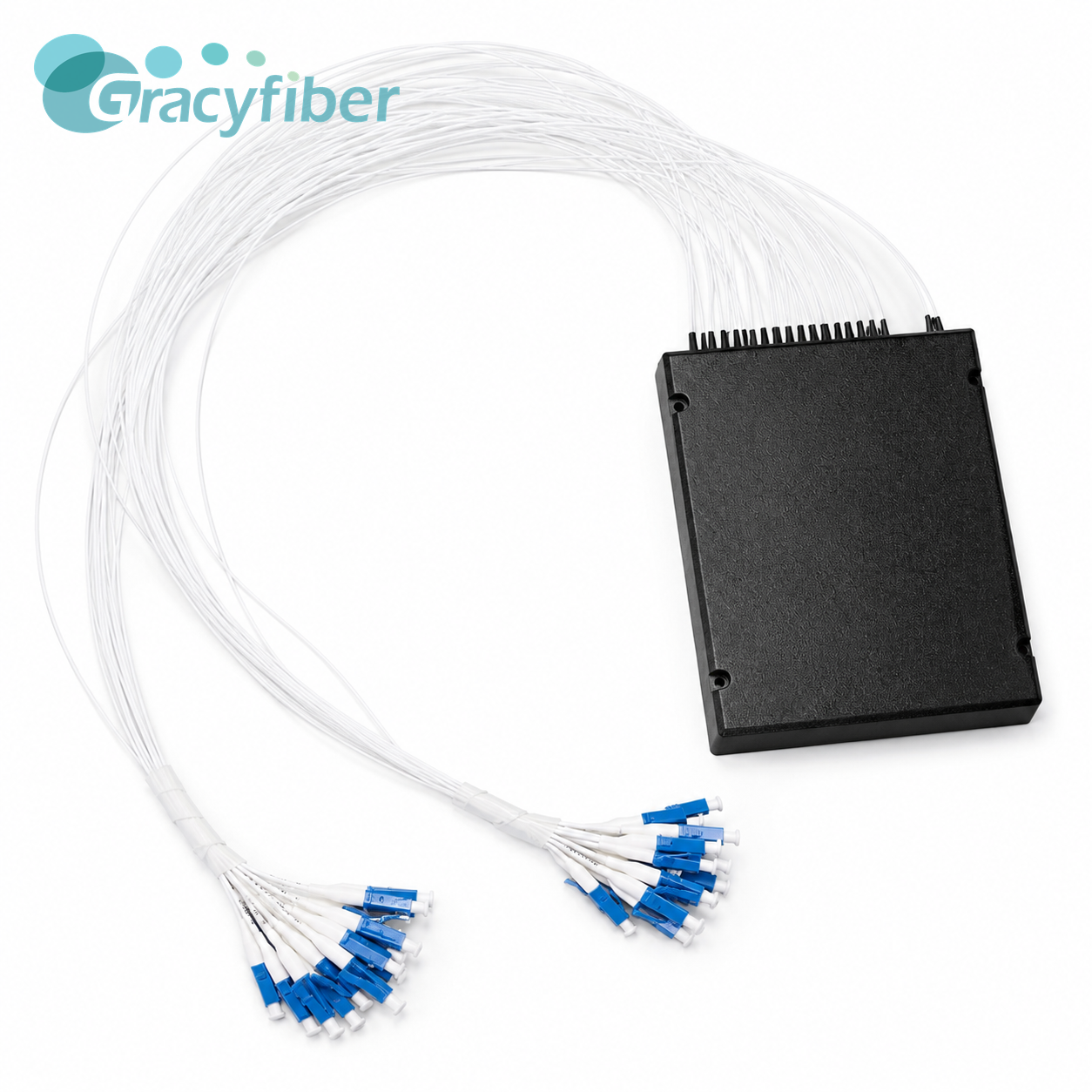

CWDM Mux Demux Module 16CH 1270–1610nm Excluding 1390 1410nm LC UPC Fiber Optic WDM Module
CWDM Mux Demux Module 16CH 1270–1610nm Excluding 1390 1410nm LC UPC Fiber Optic WDM Module
CWDM Mux Demux Module 16CH 1270–1610nm Excluding 1390 1410nm LC UPC Fiber Optic WDM Module
CWDM Mux Demux Module 16CH 1270–1610nm Excluding 1390 1410nm LC UPC Fiber Optic WDM Module
Specifications
Wavelength range :
1270–1610nm
Excluded channels :
1390nm, 1410nm
Dimensions :
140×115×18mm
Channel count :
16
Model Number :
941009008-02
Description
Product Overview

This 16-channel CWDM multiplexing/demultiplexing module covers the wavelength range of 1270–1610nm, excluding the 1390nm and 1410nm channels. It can be used for multiplexing and demultiplexing of multi-wavelength optical signals. CWDM Mux Demux Module 16CH 1270–1610nm Excluding 1390 1410nm LC UPC Fiber Optic WDM Module

Product Features
  • 16-channel CWDM Mux & Demux design
  • Operating wavelength range 1270–1610nm
  • Excludes 1390nm and 1410nm channels
  • 16-port multi-channel configuration
  • Supports multi-wavelength optical signal multiplexing and demultiplexing
  • Uses 140×115×18mm ABS box packaging
  • Fiber optic length 0.6m
  • Equipped with 0.9mm white loose tube
  • All ports use LC/UPC connectors
  • Suitable for CWDM multi-wavelength transmission systems
  • Supports customization of channel configuration, fiber length, connectors, and packaging according to project requirements
Applications
  • CWDM wavelength division multiplexing transmission systems
  • Metropolitan area networks and access networks
  • PON optical access networks
  • CATV fiber optic transmission systems
  • Multi-wavelength optical signal multiplexing and demultiplexing
  • Fiber optic link capacity expansion
  • Data center and enterprise fiber optic interconnection
  • Optical communication equipment and system integration
