Specifications
Operating wavelength :
1525~1565nm
Insertion loss :
≤5.5dB
Channel configuration :
40CH DWDM C21-C60
Channel spacing :
100GHz
Description

40 Channel 100GHz DWDM AAWG Module Flat Top C21 C60 Low Insertion Loss LC UPC Fiber Optic Multiplexer Demultiplexer

Product Description

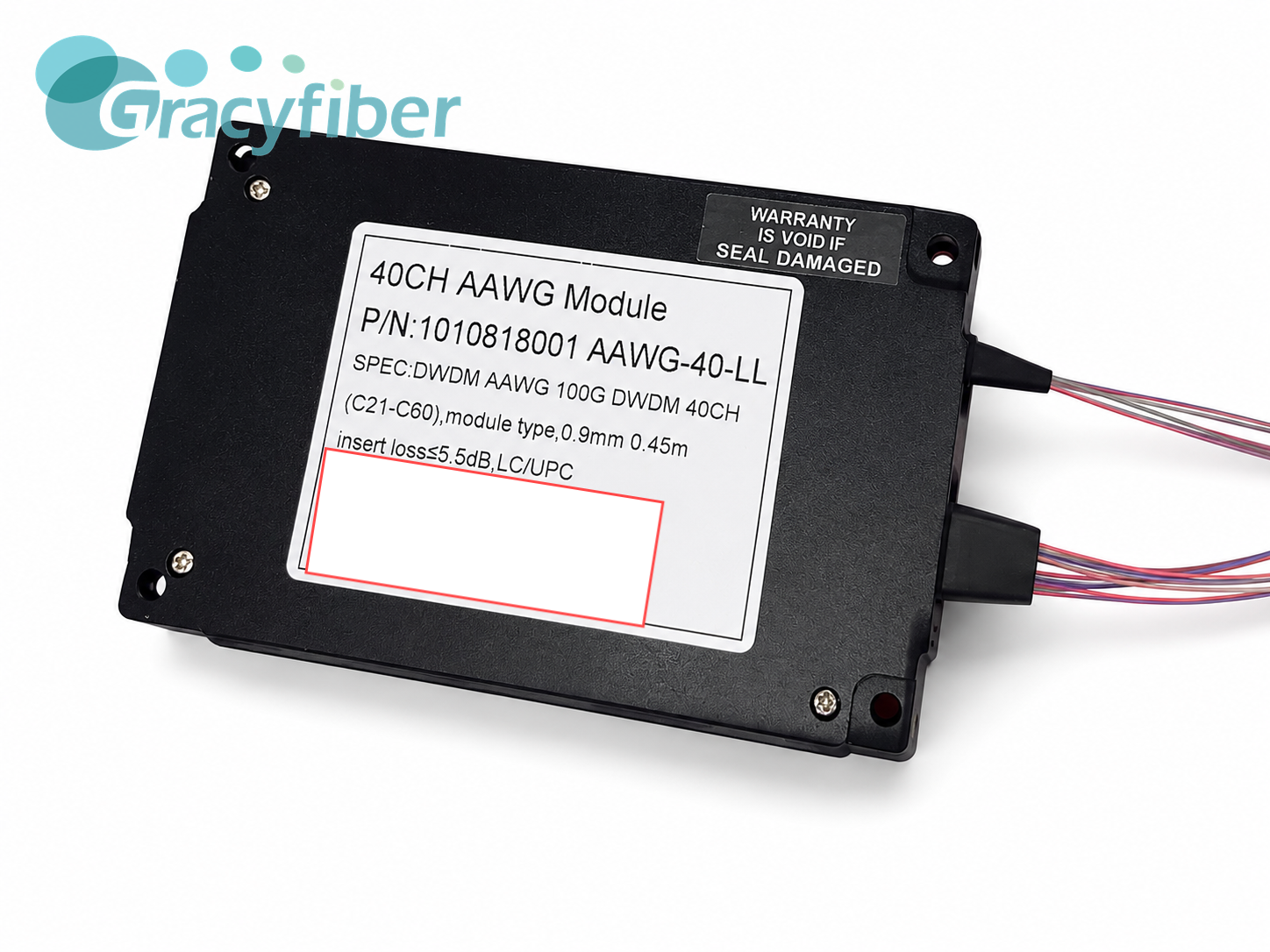

AAWG-40-LL 40CH 100G DWDM AAWG Module: Flat-Top 40-Channel 100G Dense Wavelength Division Multiplexing (AAWG) Module C21-C60 for Optical Transmission, Metro Network, and Data Center Interconnect

Key Features

  • 40CH DWDM channel configuration: covering C21-C60
  • 100GHz channel spacing
  • Flat Top AAWG chip
  • Operating wavelength range: 1525~1565nm
  • Channel passband: ITU ±0.11nm
  • Insertion loss: ≤5.5dB
  • 1dB bandwidth: ≥0.4nm, 3dB bandwidth: ≥0.6nm
  • Adjacent channel isolation: ≥23dB, Non-adjacent channel isolation: ≥29dB
  • Return loss: ≥45dB, Directivity: ≥50dB
  • Channel uniformity: ≤1.5dB, Ripple: ≤0.5dB

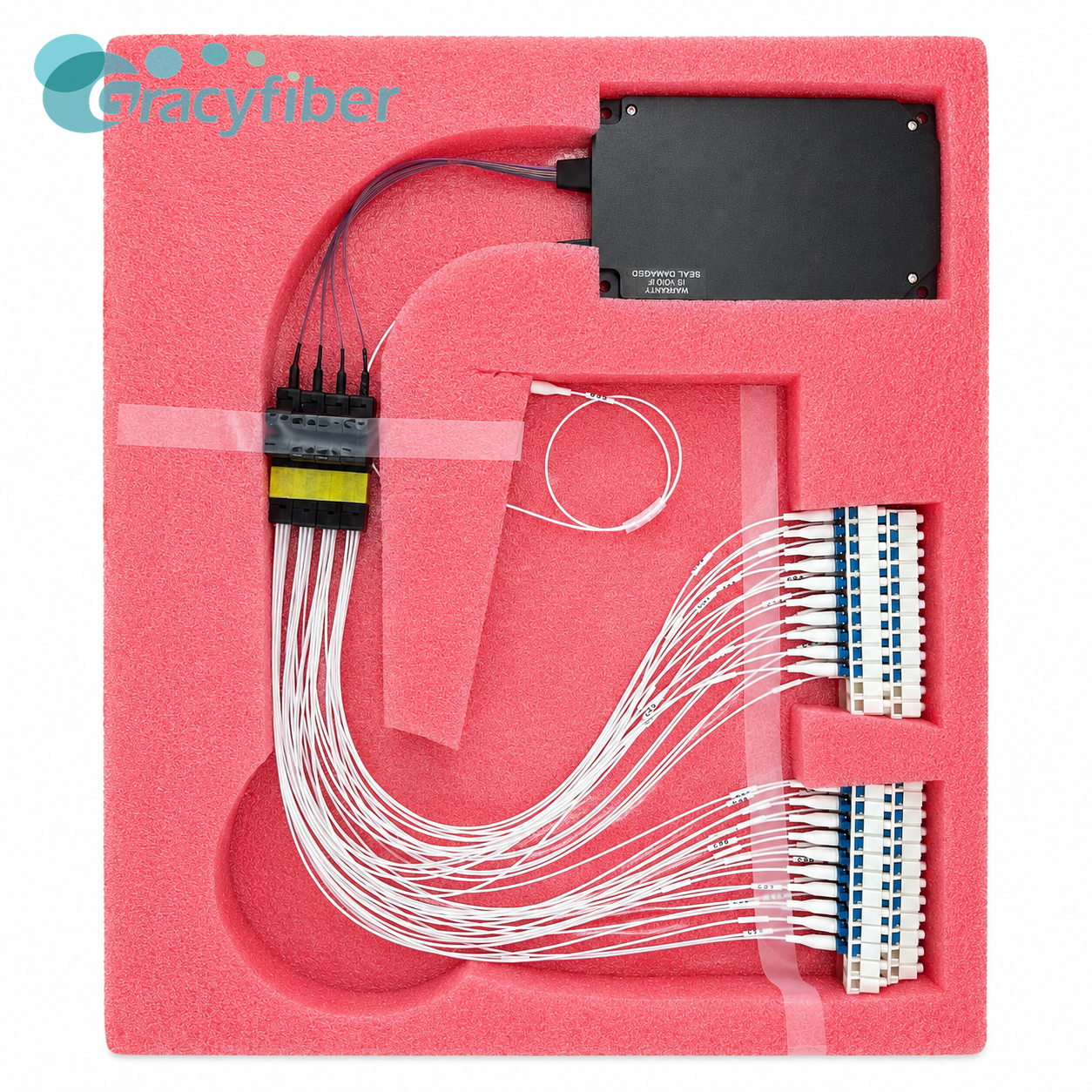

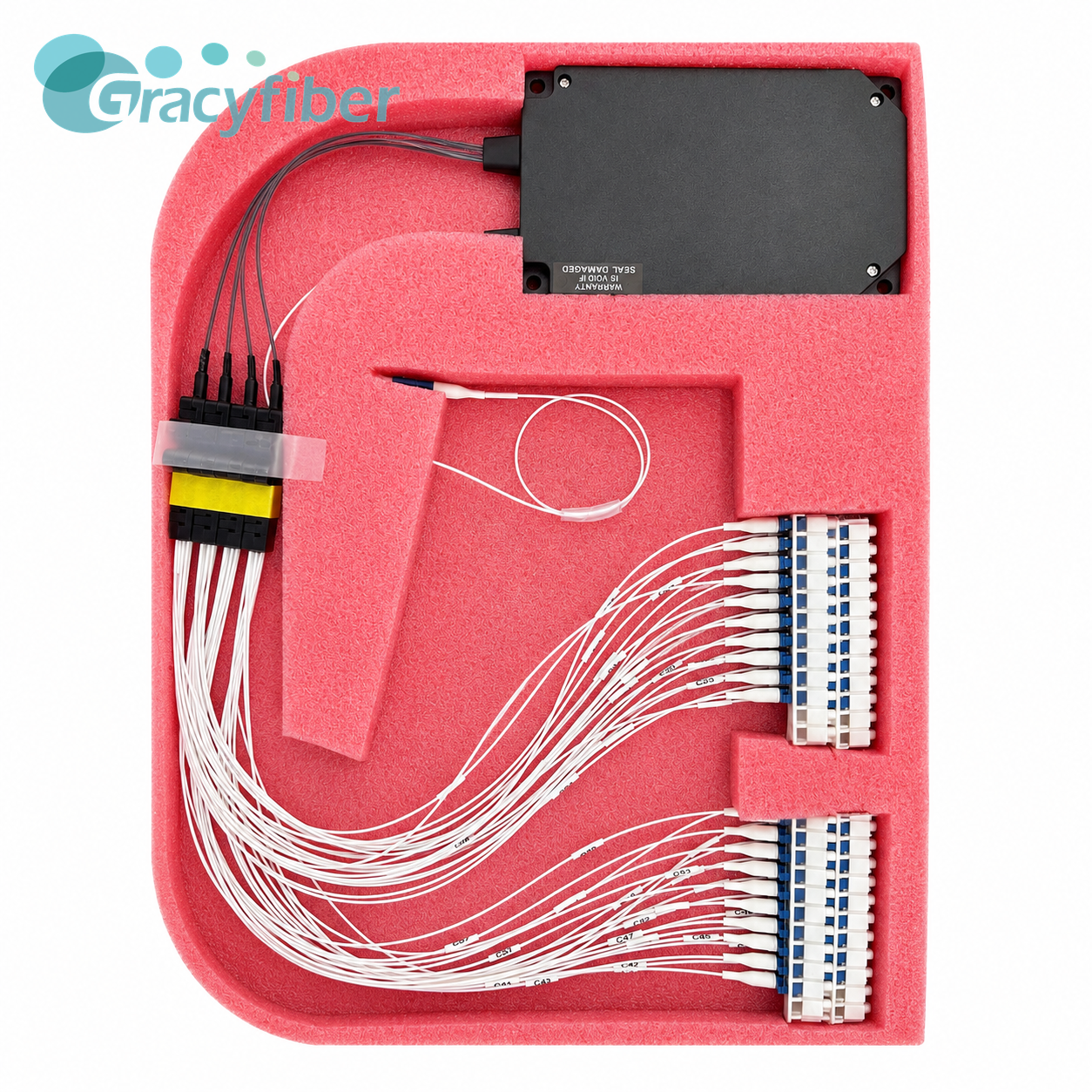

  • 0.9mm fiber loose tube: all interfaces LC/UPC
  • Outgoing fiber length: 0.45m: 0.15m ribbon + 0.3m branch
  • Package dimensions: L120×W70×H11mm

40 Channel 100GHz DWDM AAWG Module Flat Top C21 C60 Low Insertion Loss LC UPC Fiber Optic Multiplexer Demultiplexer

40 Channel 100GHz DWDM AAWG Module Flat Top C21 C60 Low Insertion Loss LC UPC Fiber Optic Multiplexer Demultiplexer

Applications

  • 100G DWDM Optical Transmission Systems
  • Metropolitan Area Networks and Backbone Networks
  • Data Center Interconnects
  • MUX/DEMUX Wavelength Division Modules
  • Optical Communication Equipment OEM Integration
  • High-Density Wavelength Management Systems
  • C-Band Multichannel Optical Networks
