Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W
Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W
Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W
Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W
Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W
Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W
Specifications
Model Number :
R650
Place of Origin :
Beijing, China
Packaging Details :
Original packaging box+Based on customer needs
MOQ :
1pieces
Price :
Contact us
Brand Name :
D E L L
Certification :
OpenManage Systems Management
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
/pieces >=2 pieces
Delivery Time :
3-5 working days
Description :
Dell Poweredge Server R650
CPU :
2* 3rd Gen Intel® Xeon® Scalable Processors
Products Status :
Stock
Type :
Rack
RAM :
up to 32 DDR4, up to 3200 MT/s
PCIE :
PCIE4.0
Power Supply :
800W-1400W
Hard disk slot :
4-10*2.5/3.5，SAS/SATA/NVME
Raid :
H355,H745,H755......
Dimensions :
42.8*482*809 mm
Network :
5720 2*1g
Description
Feature PowerEdge R650 PowerEdge R640
CPU 2 x 3rd Generation Intel® Xeon®
Processor Scalable Family		 2 x 2nd Generation Intel® Xeon®
Processor Scalable Family
CPU interconnect Intel Ultra Path Interconnect (UPI) Intel Ultra Path Interconnect (UPI)
Memory 32 x DDR4 RDIMM, LRDIMM
16 x PMem ( Intel Optane Persistent
Memory 200 Series)		 24 x DDR4 RDIMM, LRDIMM
12 x NVDIMM
12 x PMem (Intel Optane Apache Pass)
Storage drives 3.5 inches, 2.5 inches- 12 Gb SAS, 6 Gb
SATA, NVMe		 3.5 inches, 2.5 inches- 12 Gb SAS, 6 Gb
SATA, NVMe
Storage controllers Adapters: HBA355E, H840
PERC: HBA355i, H345, H355, H745,
H755, H755N
BOSS- S1 adapter
BOSS S2
SW RAID: S150		 Adapters: HBA330, H330, H730P,
H740P, H840, 12G SAS HBA Mini Mono:
HBA330, H330, H730P, H740P SW
RAID: S140
PCIe SSD Up to 10+2 (10 x direct attach in front,
and 2 x direct attach in rear)		 Up to 10 (8 x direct attach, 2 x from
PCIe bridge card)
PCIe slots Max 3 PCIe 4.0 Max 3 PCIe 3.0
LOM 2 x 1 Gb NA
Networking OCP 3.0 (x8 PCIe) rNDC
Rack height 1U 1U
Power supplies 100~240 V AC/240 V DC: 800 W, 1100
W, 1400 W
DC - 48 V ~- 60 V :1100 W		 AC (Platinum): 495 W, 750 W, 1100 W,
1600W, 2000W, 2400W
AC (Titanium): 750 W
DC: 1100 W
Mix Mode/HVDC: 750 W, 1100 W
System management LC 4.x, OpenManage, QuickSync2.0,
Digital License Key, iDRAC Direct
(dedicated micro-USB port), Easy
Restore		 LC 3.x, OpenManage, QuickSync 2.0,
OMPC3, Digital License Key, iDRAC
Direct (dedicated micro-USB port), Easy
Restore, vFlash
Internal GPU Up to 3 x 75 W (SW) Up to 3 x 70 W (SW)
Availability Hot-plug drives
Hot-plug redundant cooling
Hot-plug redundant power supplies
Hot-plug BOSS S2
IDSDM		 Hot-plug drives
Hot-plug redundant cooling
Hot-plug redundant Power supplies
BOSS
IDSDM

Chassis views and features
Front view of the system
Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W

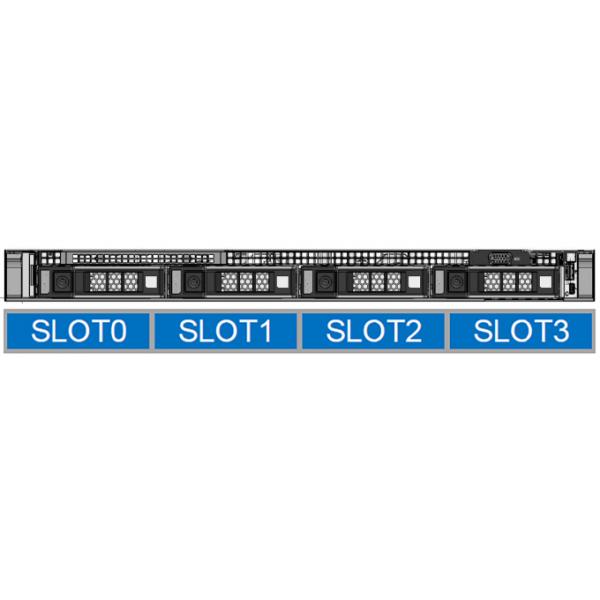

Figure 1. Front view of the R650, 4x 3.5 inches Chassis
Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W

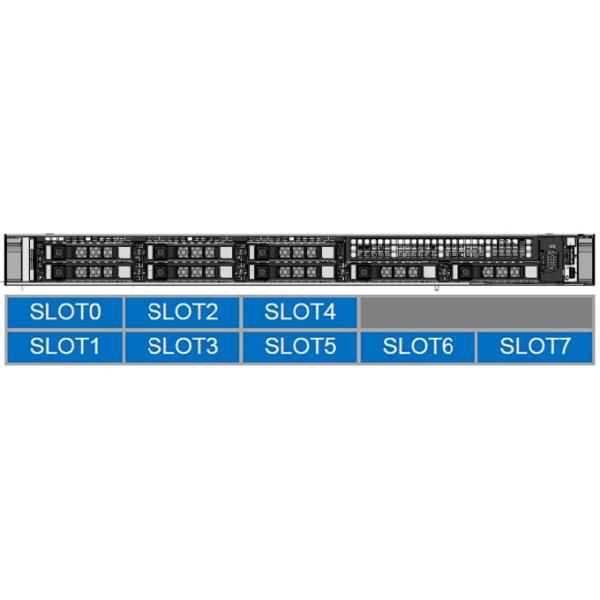

Figure 2. Front view of the R650, 8x 2.5 inches SAS/SATA Chassis
Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W

Figure 3. Front view of the R650, 8x 2.5 inches NVMe Chassis
Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W

Figure 4. Front View of the R650, 10x 2.5 inches SAS/SATA or NVMe

Rear view of the system

Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W

Figure 5. Rear view of the R650 with 3x LP PCIe Gen4 slots and Hot-plug BOSS
Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W

Figure 6. Rear view of the R650 with 2x 2.5 inches Storage drives, 1x LP PCIe Gen4 slot and Hot-plug BOSS
Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W

Figure 7. Rear view of the R650 with 2x FH PCIe Gen4 slots and Hot-plug BOSS without rear storage

Inside the system

Rackmount PCIE4.0 Dell Poweredge Server R650 800W-1400W

Figure 8. Inside the
