Specifications
Place of Origin :
China
Brand Name :
Topshine(Support OEM/ODM)
Model Number :
MT01
Certification :
ce, RoHS
Packaging Details :
Package list: 1 main unit MT01, 1 relay, 1 wiring and 1 built in battery,Neutral color or white box(23*16*6cm),Unit weight: 0.28Kg,54 units
MOQ :
3 Sets
Price :
$47.00/Sets 3-49 Sets
Supply Ability :
100000pcs/month
Delivery Time :
1-8 work days
Software :
Free tracking platform
Network :
GSM/GPRS 850/900/1800/1900MHz
GSM Frequency :
Legal IMEI & CE
Placement :
Under the seat
Function :
Remote Control, Distance Warning, Speed Warning, Real time gps tracking
Connection :
2G Sim Card
Warranty :
2 years
Use :
Motorcycle
Backup Battery :
3.7V/450mAh
GPS Sensitivity :
-158dBm
Sensor :
Motion sensor for power saving
Fuel consumption :
Optional
Speaker & Microphone :
Optional
Over speed alarm :
Support
Description
Technical Parameters:
Product name
2G GPS tracker MT01
Power Voltage
+9V - +36V / 1.5A
Backup Battery
450mAh
Dimension
80*58*22mm
Weight
90g
Operating temperature
-20° to 75° C
Humidity
5% to 95% Non-condensing
GSM module
Legal IMEI & CE
2G GSM frequency
GSM 850/900/1800/1900MHz or GSM 900/1800/1900 MHz
GPS Sensitivity
-158Db
GPS Frequency
L1, 1575.42 MHz
C/A Code
1.023 MHz chip rate
Channels
20 channel all-in-view tracking
Position Accuracy
10 meters, 2D RMS
Velocity Accuracy
0.1 m/s
Time Accuracy
1 us synchronized to GPS time
Default datum
WGS-84
Reacquisition
0.1 sec., average
Hot start
1 sec., average
Warm start
38 sec., average
Cold start
42 sec., average
Altitude Limit
18,000 meters (60,000 feet) max.
Velocity Limit
515 meters/second (1000 knots) max.
LED
2 LED lights to show GPS/GSM working status.
Interface
2 digital inputs, 1 output, 1 analog input
Features

* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* Real time tracking via the web-platform
* Cut off engine by SMS (Two Mode: Immediate Mode or Safe Mode)
* Check real time position via SMS/Call
* Engine ON/OFF detection
* Built-in backup 450 mAh battery
* Get real time physical name via SMS (Web Platform Support)
* Get Google Map link of current position via SMS, show your location on map via mobile phone
* Mileage calculation with longitude and latitude via SMS; check Mileage (Odometer) on Web Platform
* Built-in motion sensor for power saving & GPRS data saving (sleep mode)
* I/O: 2 Inputs, 1 Output, 1 A/D
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* Engine on/off alert (optional)
* SOS Panic button, SOS alert notification
* Wiretapping/remote listening
* Authorized phone numbers setting for alarm notifications
* Accident alarm (need crash sensor support) (optional)
* Two way communication via speaker and microphone (Optional)
* Detect seat belts (Optional)
* Fuel consumption monitoring (Optional)

High Sensitivity Mini SOS GPS Motorcycle Tracking Device For Bicycle Bike Boat
Accessories
High Sensitivity Mini SOS GPS Motorcycle Tracking Device For Bicycle Bike Boat

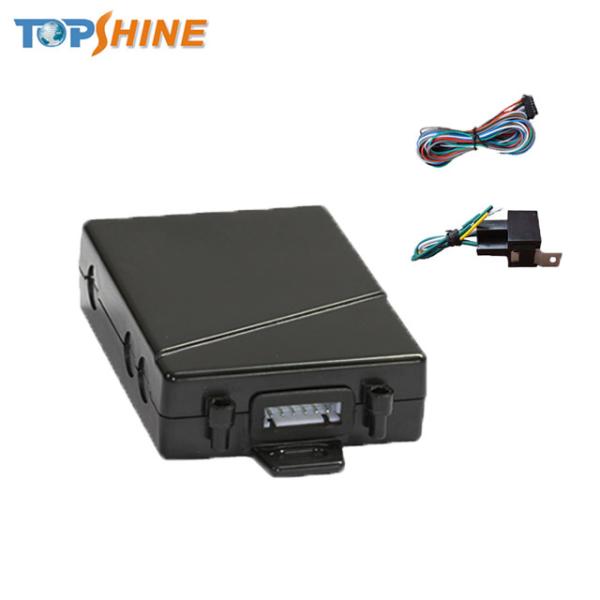

Standard accessories
1 pc main unit MT01
1 pc 12v/24v relay
1 pc wiring
1 pc built in battery
High Sensitivity Mini SOS GPS Motorcycle Tracking Device For Bicycle Bike Boat
Optional accessories
Ultrasonic fuel sensor
Cuttable fuel sensor
Crash sensor
Speaker
Microphone
Configure USB cable
Tracking Platform
Topshine company provide free tracking platform to clients
GPS tracking platform demo :
Web base : www.track-car.com

Mobile Phone: http://www.track-car.com/M

User name: officetest

Password: 123
Topshine company strength
♦ Professional manufacturer, less intermediate links, then more competitive price and quicker service than a trade company.
♦ 10 year experience in GPS tracking system and car alarm security system, strict ISO9001 quality control and rigorous tests before shipment,ensures our superior and proven reliable quality. Tests include high and low temperature aging test, vibration test, noise tests, high and low voltage change tolerance test, etc.
♦ Top R&D team for GPRS, GSM, system integration etc. let it possible for us to supply professional solutions, quick support and meet with your special and complicated requirements in short time.
♦ Easy to use Free online worldwide tracking platform on our server, you can track and monitor live data or view historical data totally free on our web server, without any monthly charges.
♦ 90% turnover for exporting, with experience for global markets.
♦ Customization/OEM/ODM/Buyer’s labeling service is welcomed.
