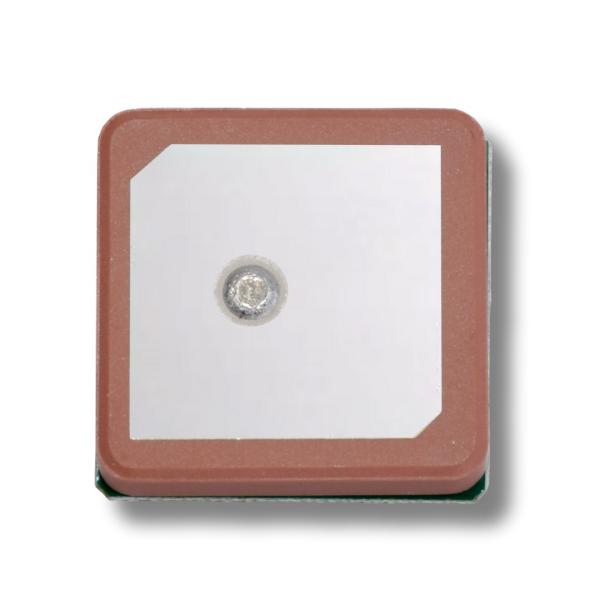

Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces
Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces
Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces
Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces
Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces
Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces
Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces
Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces
Specifications
Place of Origin :
Guangdong, China
Model Number :
YW-16164G3
MOQ :
100
Price :
$4
Dimensions :
16x16x4 mm
Tracking Sensitivity :
-162 dBm
Locating Accuracy :
2.5m (CEP)
Update Rate :
1Hz~10Hz
Velocity :
515 m/s
Velocity Accuracy :
0.1m/s (unaided)
TTFF Hot Start :
1 second
TTFF Warm Start :
28 seconds
TTFF Cold Start :
30 seconds
Acquisition Sensitivity :
-160 dBm
Cold Start Sensitivity :
-147 dBm
Baud Rate :
9600 bps
Timing Accuracy :
25 ns RMS
Power Supply :
3.3V ~ 5V
Power Consumption :
30mA (acquisition)
Working Temperature :
-40°C to 85°C
Antenna Type :
patch ceramic
Description

Parameters of YW-16164G3 Global Positioning System Module

Item

Parameters

Part No.

YW-16164G3

Chipset

As per order

Frequency

Optional

Number of Channels

Optional

Positioning Accuracy

Customized

Velocity

515 m/s

Velocity Accuracy

Without aid : 0.1m/s

DGPS: 0.05m/s

TTFF

Hot start: 1 second typical

Warm start: 28 seconds typical

Cold start: 30 seconds typical

Sensitivity

Tracking Sensitivity: -162 dBm

Acquisition Sensitivity: -160 dBm typical

Cold Start:-147dBm

Baud Rate

9600 bps (default)

Max Navigation Update Rate

1Hz (default), maximum 10Hz

Timing Accuracy

25 ns RMS

Interface Options

UART, I2C, SPI, USB

Data Output Format

NMEA 0183

Power Supply

3.3V ~ 5V

Power Consumption

30mA acquisition, 24mA tracking

Working Temperature Range

-40°C to 85°C

Antenna Type

patch ceramic antenna

AGPS

Supported

Dimension

16*16*4mm

Package Type

SMD

Pin Assignment of YW-16164G3 GPS Positioning Module

Pin No.

Pin name

I/O

Description

Remark

1

GND

O

power output ground

2

VCC

I

Main power supply to the engine

board

Voltage range: 3V~5V

3

TX

O

Data output

4

VBAT

P

Ground
