H.264 GPS / BD Car Mobile DVR For Analyse Vehicle Driven Route
H.264 GPS / BD Car Mobile DVR For Analyse Vehicle Driven Route
H.264 GPS / BD Car Mobile DVR For Analyse Vehicle Driven Route
H.264 GPS / BD Car Mobile DVR For Analyse Vehicle Driven Route
H.264 GPS / BD Car Mobile DVR For Analyse Vehicle Driven Route
H.264 GPS / BD Car Mobile DVR For Analyse Vehicle Driven Route
Specifications
Brand Name :
caxtrack
Model Number :
CA-SD210
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Product Name :
Car Mobile DVR
Network :
WCDMA, CDMA2000, TDD-LTE, FDD-LTE
Work Voltage :
8-36 Voltage
Work temperature :
-20℃~+70℃
Video Compression :
H.264
Resolution :
720P/D1/HD1/CIF, MAX:4 channels 720P
GPS sensitivity :
-161dBm
GPS accuracy :
10meter
Weight :
0.75 kg
Dim. :
112(W)x36(H) x138(D) mm
Application :
Vehicles
Description

H.264 GPS / BD Car Mobile DVR For Analyse Vehicle Driven Route

Performance Parameters:

Item

Parameter

OS

Linux

Language

Chinese/English/Customized

Video Compression

H.264

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Setup system parameters with the remote control.

Video Record System

Video-Input

4CH 720P AHD input/SD input/mixed video input,aviation connector, 1.0Vp-p, 75Ω

Video Output

1CH CVBS+1CH VGA output, 1.0Vp-p, 75Ω, Aviation, Support 1CH Full Screen,4CH Screen

Preview

Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full-screen preview

Resolution

720P/D1/HD1/CIF, MAX:4 channels 720P

Video Quality

0-7 levels, 0 is the highest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 levels video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 levels video quality optional;

D1: 800Kbps ~ 3Mbps, 8 levels video quality optional;

720P: 4Mbps-6Mbps, multi-level video quality optional

Record Mode

The default setting is auto-recording after power on. Timed recording, alarm trigger recording, and manual recording are supported.

Audio

Audio Input

4CH, Aviation Plug

Audio Output

1CH, Aviation Plug

Compression

G.726 compression, 8KB/s speed

Alarm Input

4Ch Alarm Input, kinds of alarm linkage support

Alarm Output

1CH Alarm Output

Communication interface

1CH RS232 or 1CH RS485 for optional

Position

Support Built GPS/BD Module, built-in G-sensor, can reply and analyze vehicle driven route.

wireless transmission

Support Built-in 3G/4G wireless transmission function, WCDMA, CDMA2000, TDD-LTE, FDD-LTE...

Motion Detection

Support motion detection alarm. (Can set the video recording duration time after an alarm on the platform.)

G-Sensor

Support G-sensor

Storage

SD

Dual SD Card, each max 128GB SD Card loop recording

Upgrade

Support SD Card remote updating

File Format

.264

File System

Special FAT32 File System

Video Playback

Video Search

Search By Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play at the speed of x 2,x4,x8,x16.

Voltage & Power

Power Management

Wide Voltage. Support Timed/Delay-off

Voltage Input

DC:+8V ~ +36V

Voltage Output

+12V@2.5A,+5V@2.5A

Power Consumption

Normal Working ＜14W, Stand-by status < 0.5W

Working Environment

Temperature

-20℃ to +70℃

Humidity

20% to 80%

Security

Password

User/Admin 2 Level Different Password

others

Size

112(W) x36(H) x138(D) mm

Net Weight

360g

Functional features:

  1. H.264 Video Compression,Support 4CH 720P AHD Camera input/ 4CH analog SD camera input/ 2CH HD + 2CH SD mixed input ;
  2. VGA output for optional;
  3. Exclusive pre-allocated file system, solve the file fragmentation / SD lost / file garbled, etc issue, protect data file;
  4. 8-36V Wide Voltage, Lower power consumption;
  5. SD Card Storage ( Dual SD Card, each max 128GB ),
  6. Support 4CH alarm input, 1CH independent alarm output;
  7. Optional single RS232 serial port or single RS485 extension
  8. Support GPS/BD/G-sensor module extension
  9. Realize realtime monitor through 3G/4G;
  10. Support WIFI module can download data automatically
  11. Car Mobile DVR Support SMS remote configure/ control device;
  12. Car Mobile DVR Support Broadcast/Intercom/Text sent etc; can add oil sensor/temperature Car Mobile DVR sensor/POS/LED Advertisement Panel;
  13. Car Mobile DVR High vibration Aviation plug.

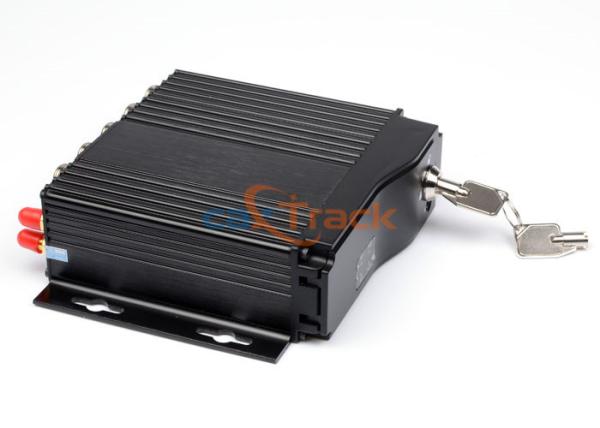

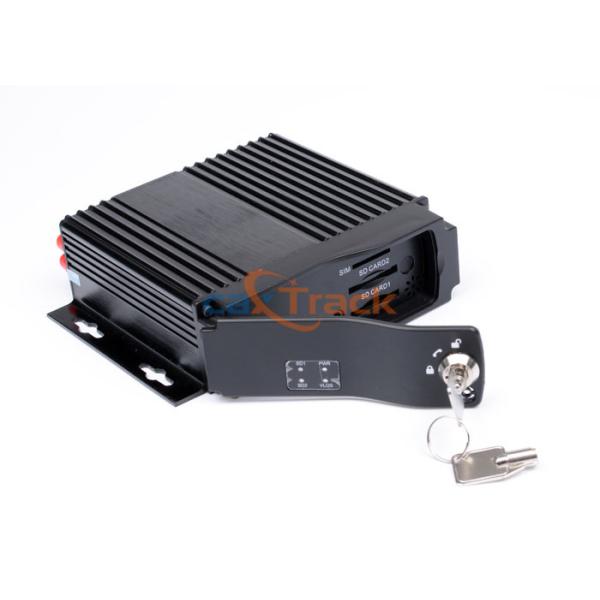

Detail Pictures:

H.264 GPS / BD Car Mobile DVR For Analyse Vehicle Driven Route

H.264 GPS / BD Car Mobile DVR For Analyse Vehicle Driven Route

H.264 GPS / BD Car Mobile DVR For Analyse Vehicle Driven Route

Applications:

  1. Vehicle,Truck,Bus,School Bus,etc.
  2. Real-time video monitoring.
  3. GPS tracking.
  4. Assets Tracking.
  5. Fleet Management.

Guarantee:

1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our products there is 2-year quality assurance.

3. Sample fee will not be returned.

Product Configuration:

1. Standard configuration

  1. Device host 1pcs;
  2. Power Cables 1pcs;
  3. I/O Cables 1pcs;
  4. AV Cables 1pcs;
  5. Remote control 1pcs;
  6. 3G/4G Antenna 1pcs;
  7. GPS Antenna 1pcs;
  8. CD( User manual) 1pcs;

2. Optional configuration:

  1. camera
  2. LCD display
  3. SD card
  4. fuel sensor
  5. temperature sensor etc.
