Specifications
Brand Name :
caxtrack
Model Number :
CA-V1
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Product Name :
Gps Tracker Device
Network :
GSM/GPRS
Band :
850/900/1800/1900MHz
GPS chip :
SiRF III chip
GPS accuracy :
5m
Application :
Vehicle GPS Locator
Work Voltage :
9-36V
Dim. :
85*65*25mm
Operation Temp :
-20°C to +70°C
Weight :
0.459kg
Description

Professional GPS Tracker Device , Vehicle GPS Locator With Remote Cut Engine

Performance Parameters:

Content

Specs.

Dim.

87 * 57 * 25 (mm)

Weight

0.459kg

Name Portable GPS Locator

Network

GSM/GPRS

Band

900/1800/1900MHz or 850/900/1800/1900MHz

GPS chip

SiRF III chip

GPS sensitivity

-159dBm

GPS accuracy

5 m

Time To First Fix

Reacquisition 0.1s

Cold status 45s

Warm status 35s

Hot status 1s

Work Voltage

DC 9V-36V

Battery

Chargeable changeable 3.7V / 1.2Ah Li-ion battery

Standby work current

< 30mA

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

5%--95% non-condensing

Description:

1. Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
2. Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed device will send out alarm to the authorized numbers.

3. Remote controlling oil and circuit: you can control the oil and circuit via the device by SMS in anywhere and anytime.

4. Remote Monitoring: In anywhere and anytime, call the phone number in the device, when it connects, you can monitor the sound around 5 meter.
5. Movement Alert: Send SMS to the device to start the movement alert function. When the vehicle is moving, the device will send the movement alert to all authorized numbers.

6. Overspeed Alert: Send SMS to the device to start the movement alert function. When the vehicle is overspeed, the device will send the overspeed alert to all authorized numbers.

7. Geo-fence: Set up a geo-fence for the device to restrict its movements within a district. The device will send the message to all authorized numbers when it breaches the district.

8. Restart the device: send SMS to resume the default of device.

9. Auto Track: You can set up auto track by SMS or on-line positioning platform.

10. Mileage statistics; ACC checking; cutting off power and alarm.

11. Compatible with the original anti-theft alarm: It will send SMS alarm after the original anti-theft alarm warning.

12. Modify the IP and Port of Communication Protocol for different on-line positioning platform

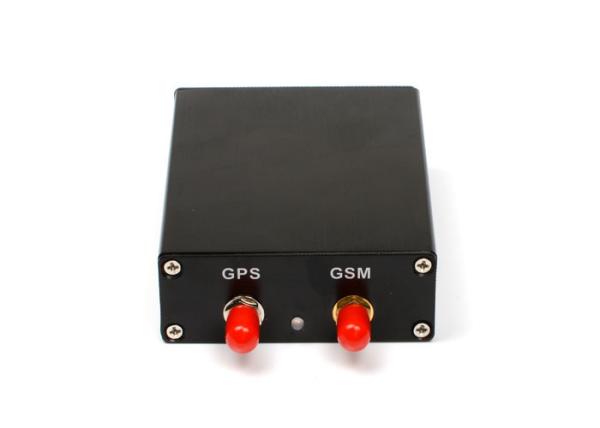

Detail Pictures:

Professional  GPS Tracker Device , Vehicle GPS Locator With Remote Cut Engine

Professional  GPS Tracker Device , Vehicle GPS Locator With Remote Cut Engine

Applications:

4s shop, car company, truck company, motorcycle company,GPS producer, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, car repair shop,taxi company, bus company.

Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not be returned.

Product Configuration:

Professional  GPS Tracker Device , Vehicle GPS Locator With Remote Cut Engine

1. Standard configuration

1) main device 1 pcs

2) power line 1 pcs

3) GSM antenna 1 pcs

4) GPS antenna 1 pcs

5) Installation cables 1 set

6) Usage instructions

7) Warranty card

8) Certification

2. optional configurations

1) Accessories (relay) for cut fuel/circuit

2) High capacity backup battery, it can works for 12h

3) Temperature sensor and fuel sensor
