2G GSM Network 10M Motorcycle GPS Tracker 850/900/1800/1900MHz
2G GSM Network 10M Motorcycle GPS Tracker 850/900/1800/1900MHz
2G GSM Network 10M Motorcycle GPS Tracker 850/900/1800/1900MHz
2G GSM Network 10M Motorcycle GPS Tracker 850/900/1800/1900MHz
Specifications
Brand Name :
caxtrack
Model Number :
CA-V4
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Product Name :
Motorcycle GPS Tracker
Network :
2G GSM Network
Band :
850/900/1800/1900MHz
Working currency :
20mA / 12V
Position Accuracy :
10m
Work Voltage :
9-80V
Dim. :
90*33*15mm
Weight :
0.067kg ( Battery and Power cord Included )
GPS sensitivity :
-159dBm
GPRS chip :
MTK6261
Rechargeable Lithium-Polymer Battery :
140mAh
torage Temp. :
-40°C to +85°C
Operation Temp :
-20°C to +55°C
Function2 :
Motorcycle Anti-Theft
Description

Who we are:

Shenzhen Cartracker Technology Co., Ltd. is a professional GPS TRACKER manufacturer, we are committed to GPS locator R & D and production since 2009, several products in the market have a good reputation, the products are exported to over 50 countries in the country, We undertake a lot of government super project orders. We run into the top 10 super suppliers in China GPS tracking industry.

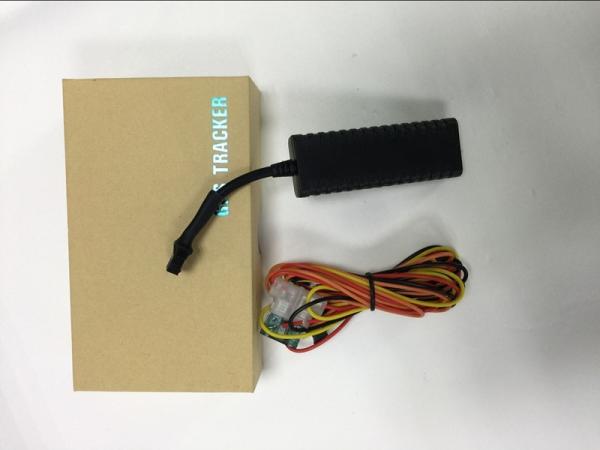

Motorcycle GPS Tracker Unit

Model: CA-V4

Features:

Mini dimension, like a lighter.

Inquiry real time positon from website platform or mobile terminal.

Alert, need setup alert, then when it triggered, the device terminal will send alert to users.

Remote stop the car (option, need a extra relay to make it work)

Performance Parameters:

Content

Specs.
Name Motorcycle GPS Tracker

Network

2G GSM GPRS

Band

850/900/1800/1900Mhz

GPS chip

UBLOX

GPS sensitivity

-159dBm

GPS accuracy

10m

Time To First Fix

Cold status 38s

Warm status 15s

Hot status 1s

voltage input

9－100V input

Battery

Build-in 3.7V 140mAh Li-ion battery

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing
Size 7.6cm x 2.6cm x 1.3cm
Weight 0.067kg ( Battery and Power cord Included )
Waterproof IP67

Installation diagram:

1 Red line power supply connect car positive wire.

2 Black wire connected to the negative electrode

3 Orange line connected to car ACC wire

4 Yellow line connect with relay control line.

Quick setting:

1, Insert a 2G GSM simcard ( or 3G 4G simcard if it support 2G GSM Network)

2, Setup APN.

3, Setup IP and port (if use other Tracking platform)

4, Setup Admin number to manage the tracking unit.

5, Setup alarm settings as per you need.

Gurantee:

2G GSM Network 10M Motorcycle GPS Tracker 850/900/1800/1900MHz

APPLICATONS

2G GSM Network 10M Motorcycle GPS Tracker 850/900/1800/1900MHz

2G GSM Network 10M Motorcycle GPS Tracker 850/900/1800/1900MHz

2G GSM Network 10M Motorcycle GPS Tracker 850/900/1800/1900MHz

Tracking platform screenshot:

2G GSM Network 10M Motorcycle GPS Tracker 850/900/1800/1900MHz
