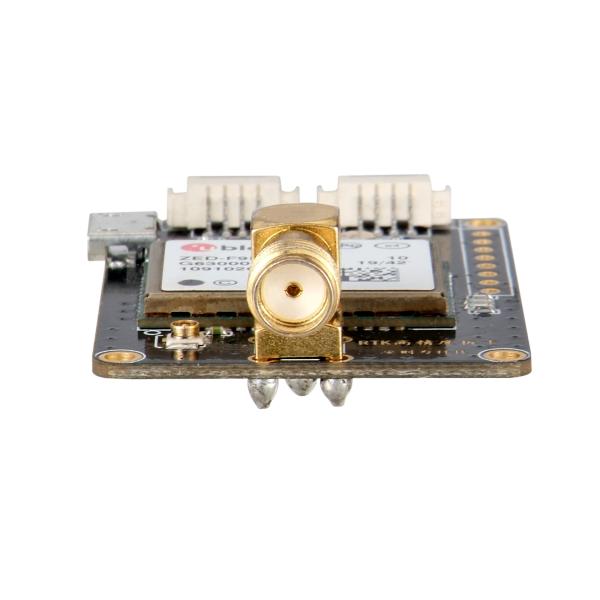

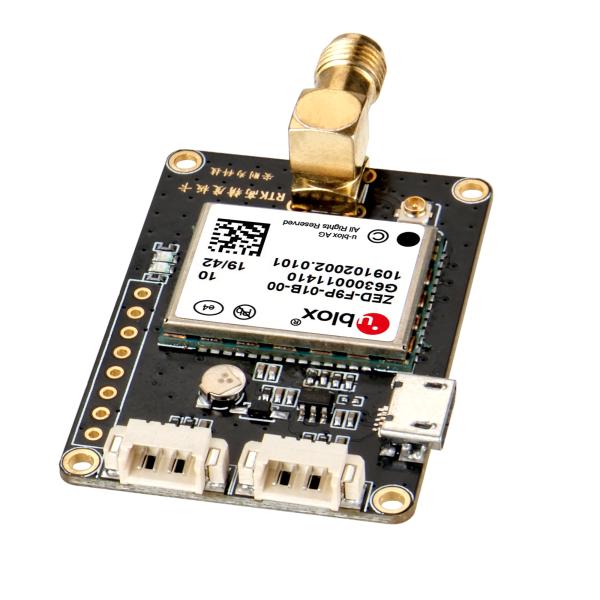

ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
Specifications
MOQ :
1 piece
Price :
$74.10-78.55 / piece
country of origin :
China
model :
ZED-F9P-01B-00
type :
GPSModule development board
Country or region of origin :
CHINA
brand :
OTW
chip :
UBLOX
application :
Positioning, mapping
mode of operation :
GPS + GLONASS + GALILEO + BDS + QZSS + SBAS
Baud rate :
4800bps-921600bps，default38400bps
NMEAinformation :
RMC、VTG、GGA、GSA、GSV、GLL
update frequency :
1Hz-20Hz (default1hz)
voltage :
3.6v ~ 6.0V (typical value5v)
power dissipation :
80 mA @ 5V
size :
43.11mm * 30mm * 13mm
Description
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
ZED-F9P RTK GNSS GPS Module Development Board with Multi-GNSS Support
Module performance
Model
ZED-F9P-01B-00
Receiver type
GPS: L1C/A L2C
GLONASS: L1OF L2OF
Galileo: E1-B/C E5b
BeiDou: B1I B2I
QZSS: L1C/A L2C
SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
Algorithm
Integrated RTK algorithm
Agreement
NMEA-0183
Support:VTG,GLL,TXT ublox binary and NMEA Command
Available baud rate
4800bps~921600bps(default 38400bps)
Channel
184
Sensitivity
Tracking: -167dbm Capture: -160dbm Cold start -148dBm Hot start: -157dbm
Cold start
Average 24 seconds
Hot start
Average 2 seconds
Accuracy
0.01 m + 1 ppm CEP
Max Height
50000m
Max Speed
500 m/s
Max Acceleration
≦ 4G
Regeneration
1Hz -20 Hz(default 1Hz)
RAWX
support multi-GNSS raw measurenmet data output
Port
2 PCS 1.0mm spacing 4Pins connector,USB
Size
43.11mm * 30mm * 13mm (+/- 0.5mm)
Voltage
3.6V~6.0V(typical 5V)
Power Consume
80 mA @5V
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 105℃
