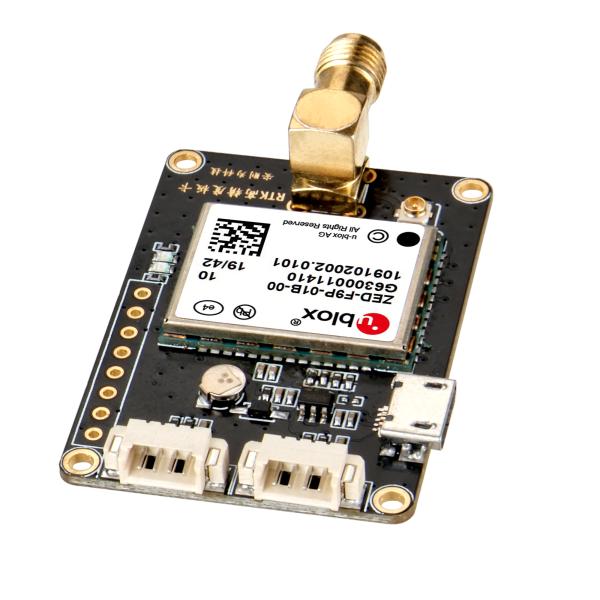

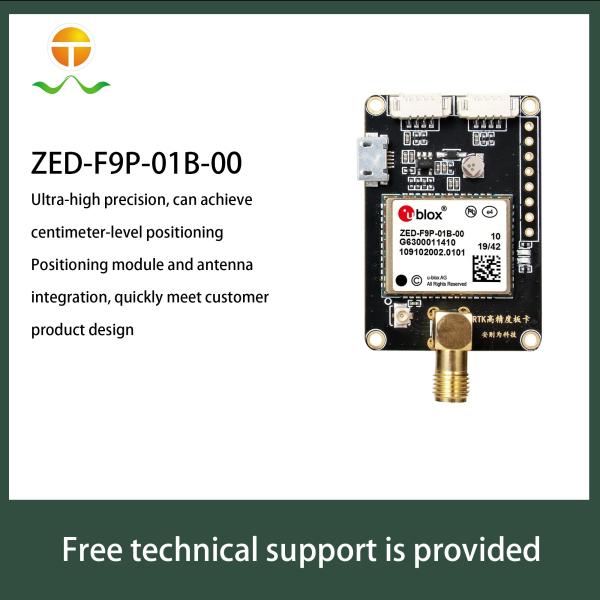

OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
Specifications
Place of Origin :
Guangdong, China
Model Number :
ZED-F9P/ZED-F9T
Type :
GPS Module Development board
Country of Origin :
CHINA
Brand :
OTW
Chipset :
UBLOX
Application :
Positioning, surveying and mapping, etc

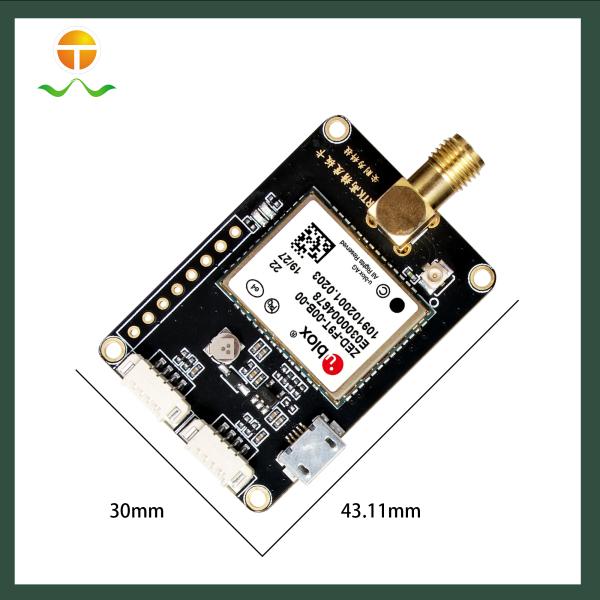

Dimensions :
43.11mm * 30mm * 13mm (+/- 0.5mm)
Sensitivity :
Tracking: -167dbm Capture: -160dbm Cold start -148
Positioning Accuracy :
0.01 m + 1 ppm CEP
Communication interface :
USB, uart
Operating mode :
GPS+GLONASS+GALILEO+ BDS+QZSS+SBAS
Baud rate :
4800bps-921600bps,Default38400bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-20Hz(default 1Hz)
Voltage :
3.6V~6.0V(typical 5V)
Power consumption :
80 mA @5V
Size :
43.11mm * 30mm * 13mm
Accuracy :
0.01 m + 1 ppm CEP
Regeneration :
1Hz -20 Hz(default 1Hz)
Port :
2 PCS 1.0mm spacing 4Pins connector,USB
MOQ :
1 piece
Price :
$79.20-94.50 / piece
Description
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver

Scope of application:

● Base station, power, positioning field ● Agriculture ● Synchronize UTC time and timing areas ● Positioning and measurement in complex environments and high-speed motion scenarios ● Intelligent driving, drones and other fields
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver

Scope of application:

Scope of application: ● Research and development, traffic GPS timing system ● Communication GPS timing system, financial synchronous clock system ● Power synchronous clock system, airport synchronous clock system ● Gymnasium GPS synchronous clock system ● Hospital GPS synchronous clock system, differential base station timing, etc
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
OTW UBLOX GPS Module Development Board for RTK GNSS Receiver
