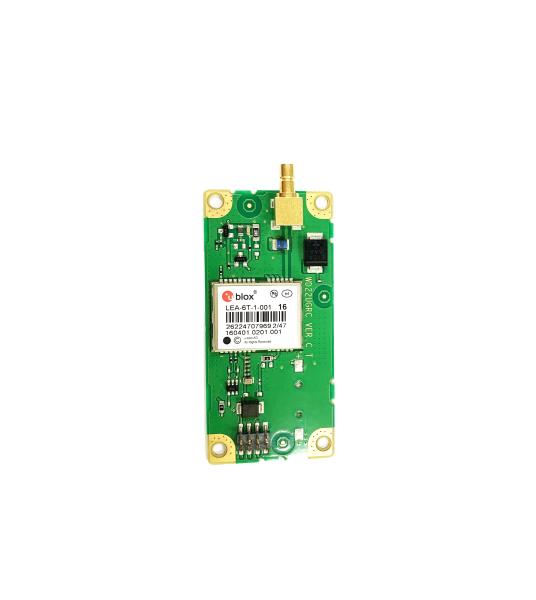

LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
Specifications
Place of Origin :
China
Model Number :
LEA-6T
Type :
GPS Module Development board
Country of Origin :
Shenzhen Guangdong, China
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS L1
Baud rate :
4800bps~921600bps (default 38400bps)
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Horizontal accuracy :
2.5m Timing accuracy: RMS 30 ns
Voltage :
2.7V~3.6V
Power consumption :
123 mW @ 3.0 V
Size :
31.7mm *67.1mm * 9.7mm
MOQ :
1 piece
Price :
$21.94-23.61 / piece
Description
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
Application：
● Research and development, traffic GPS timing system ● Communication GPS timing system, financial synchronous clock system ● Power synchronous clock system, airport synchronous clock system ● Gymnasium GPS synchronous clock system ● Hospital GPS synchronous clock system, differential base station timing, etc

LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
Features：
● Precise timing ● 1 or 2 time pulse outputs (up to 10 MHz) ● Single satellite operation ● Fixed (measurement) mode improves timing accuracy ● Time stamp for external event input ● Original pseudo-range data output ● UART, USB and DDC (I2C compatible) interfaces ● On-board RTC crystal for faster hot start and hot start
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC


Specification：
Module performance
Model
LEA-6T
Receiver type
GPS L1
Agreement
NMEA-0183 or Customized
Available baud rate
4800bps~921600bps (default 38400bps)
Channel
50
Sensitivity
Tracking:-162 dBm Cold Start:-148 dBm Hot Start:-157 dBm
Cold start
Average 26 seconds
Hot start
Average 1 seconds
Horizontal accuracy
2.5m
Timing accuracy: RMS 30 ns
Max Height
18000m
Max Speed
515 m/s
Max Acceleration
≦ 4G
time pulse
Configurable (0.25Hz-10MHz)
Positioning method
A-GNSS
connector
UART、USB、DDC
Module Type
28PIN LCC package
Size
31.7mm *67.1mm * 9.7mm (+/- 0.5mm)
Voltage
2.7V~3.6V
Power Consume
123 mW @ 3.0 V
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 105℃
LEA-6T GPS Timing Module 2.7V-3.6V High Precision UART USB DDC
