Specifications
Place of Origin :
China
Model Number :
WT-62-UNL
Type :
GNSS Module
Country of Origin :
Shenzhen Guangdong, China
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+GALILEO+ BDS
Output Mode :
UART+TTL
Baud rate :
4800bps-921600bps,Default9600bps
NMEA sentences :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-18Hz(default 1Hz)
Voltage :
1.65V to 3.6V
Power consumption :
21 mA , @3.0V
Size :
12.2mm*16mm*2.4mm
Price :
CN¥37.81/pieces 1-499 pieces
Description
OTW GNSS Module for Cars & Trucks - GPS+GLONASS+GALILEO+BDS, 1.65V-3.6V
OTW GNSS Module for Cars & Trucks - GPS+GLONASS+GALILEO+BDS, 1.65V-3.6V
OTW GNSS Module for Cars & Trucks - GPS+GLONASS+GALILEO+BDS, 1.65V-3.6V
Module performance
Model
WT-62-UNL
Receiver type
GPS/QZSS :L1C/A
Galileo:E1-B/C
GLONASS:L1OF
BeiDou:B1|
Agreement
NMEA-0183 compliant protocol or custom protocol
Channel
72
Available baud rate
4800bps~921600bps(default 9600bps)
Sensitivity
Tracking: -167dbm Capture: -158dbm Cold start -148dbm
Cold start
Average 26 seconds
Hot start
Average 1 seconds
Accuracy
Horizontal Position : average, SBAS < 2.0m
Max Height
18000 m
Max Speed
515 m/s
Max Acceleration
≦ 4G
Regeneration frequency
1Hz -18 Hz
Port
Port
2 URAT
1 I2C
2 SPI
Physical property

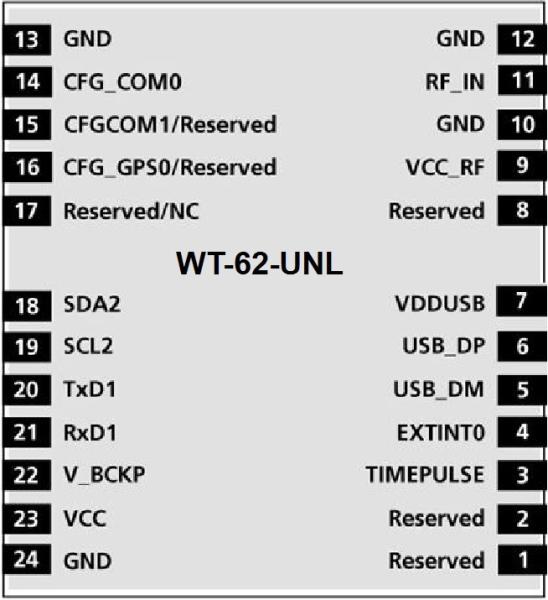

Type
24 pin stamp holes

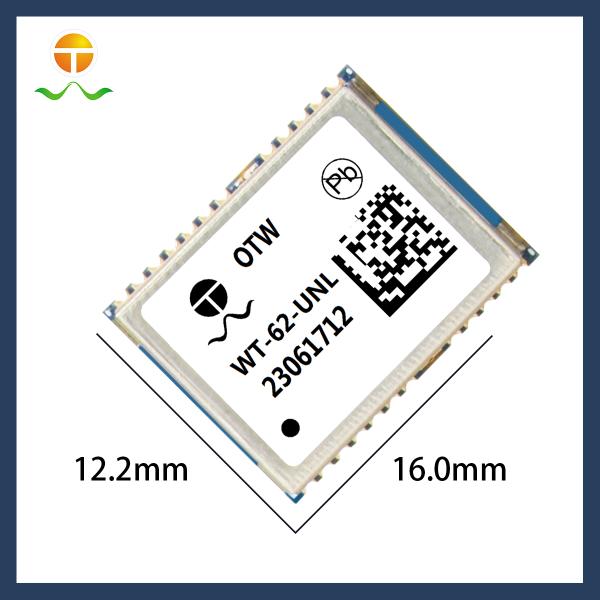

Size
16.0mm*12.2mm*2.4mm(+/- 0.5mm)
Power supply
Voltage
1.65V~3.6V
Power Consume
Operation mode: 21 mA@3.0V, power saving mode: 5.3 mA@3.0V (PSM, 1hz)
Oerating Environment
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
