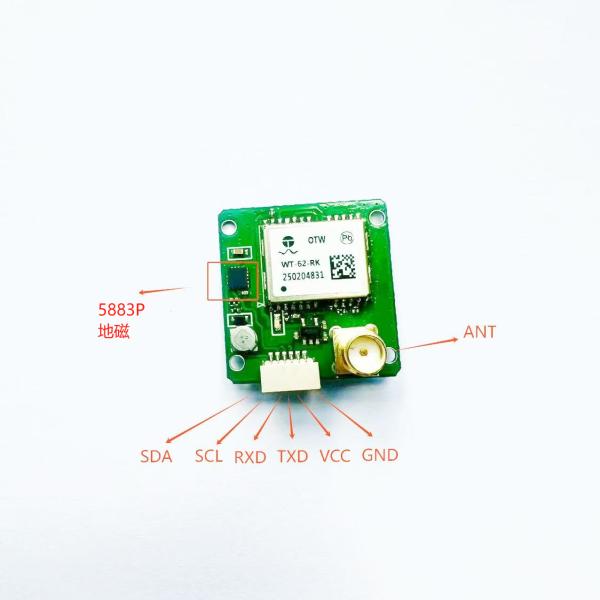

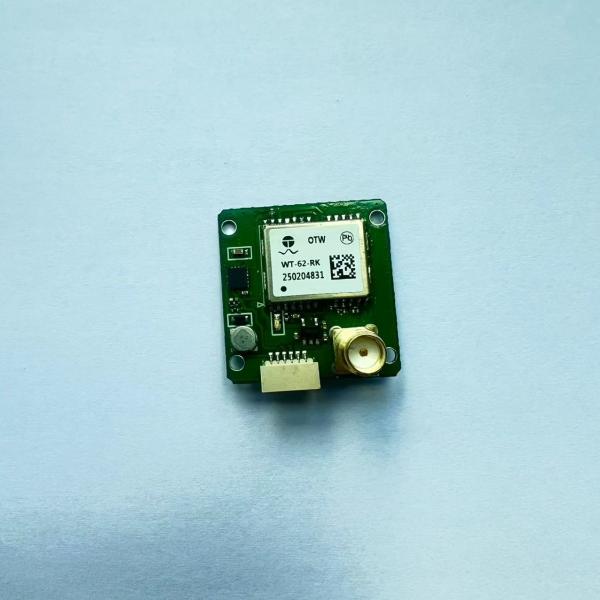

RTK module integrated with geomagnetic integrated board card
RTK module integrated with geomagnetic integrated board card
RTK module integrated with geomagnetic integrated board card
RTK module integrated with geomagnetic integrated board card
Specifications
Brand Name :
OTW
Model Number :
WT-62-RK (5883P)
Certification :
CE/ISO
Place of Origin :
China
MOQ :
xx
Price :
xx
Payment Terms :
D/P
Delivery Time :
2-3 days
Packaging Details :
LCC
Description
Affordable RTK High-Precision Module with Geomagnetic 5883P Development Board

This cost-effective RTK module combines high-precision positioning with advanced geomagnetic sensing capabilities, ideal for industrial and manufacturing applications requiring accurate location data.

Module Performance
  • Chip: BG11XX
  • Receiver Type: BDS:B1I/B1C & B2a GPS/QZSS:L1C/A & L5 GLONASS:L1 Galileo:E1 & E5a
  • Arithmetic: Integrated RTK algorithm
  • Protocol: NMEA-0183 or custom GALILEO L1 open service (with upgrade)
  • NMEA Messages: RMC, VTG, GGA, GSA, GSV, GLL
  • Baud Rate: 4800bps~921600bps (default 115200bps)
  • Channels: 128
  • Sensitivity: Tracking: -167dBm, Capture: -158dBm, Cold start: -148dBm
Performance Metric Specification
Cold Start Average 28 seconds
Hot Start Average 1 second
Accuracy Level: 1cm+1ppm CEP50; Elevation: 2cm+1ppm CEP50
Timepulse Signal RMS 30 ns
Max Height 18000m
Max Speed 515 m/s
Max Acceleration ≤ 4G
Regeneration 0.25-10 Hz
Positioning Mode A-GNSS, double frequency RTK
Compass 5883P
Physical Specifications
  • Connector: 6PIN 1.0mm JST
  • Type: 24PIN LCC package
Power Specifications
  • Voltage: 1.8V~3.3V
  • Power Consumption:
    • Operational mode: 103mW@1.8V
    • Standby mode: <20μW
    • Energy-saving mode: search: 38mA, trace: 29mA
    • Power saving mode: <10mA
Operating Environment
  • Humidity Range: 5% to 95% non-condensing
  • Working Temperature: -40℃ to 85℃
  • Storage Temperature: -40℃ to 85℃
