Specifications
Brand Name :
OTW
Model Number :
WT-508
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
59.9
Delivery Time :
5day
Description
ANTENNA CHARACTERISTICS
Model
 WT508

Receiver type
 Beidou: B1/B2/B3
GPS :L1/L2/L5
Galileo :El/E2/E5/E5a/E5b/E6
GLONASS :L1/L2/L3
Peak Gain
≥5 dBi
Polarization
RHCP
Axial Ratio@zenith
≤1.5dB
Azimuth Coverage
360 °
Impedance
50 ohm
LNA
Port
UART/TTL
Frequency Range
 1164MHz~1268MHz
1525MHz~1615MHz
LNA Gain
30±3.0dB (Typ. @25°C)
Noise Figure
≤2 dB@25°C , Typ.
Output VSWR
≤1.8:1 typ. 2.0:1max
Operating Voltage
3.0~ 5.0V DC
Operation Current
≤45mA
MECHANICALS & ENVIRONMENTAL

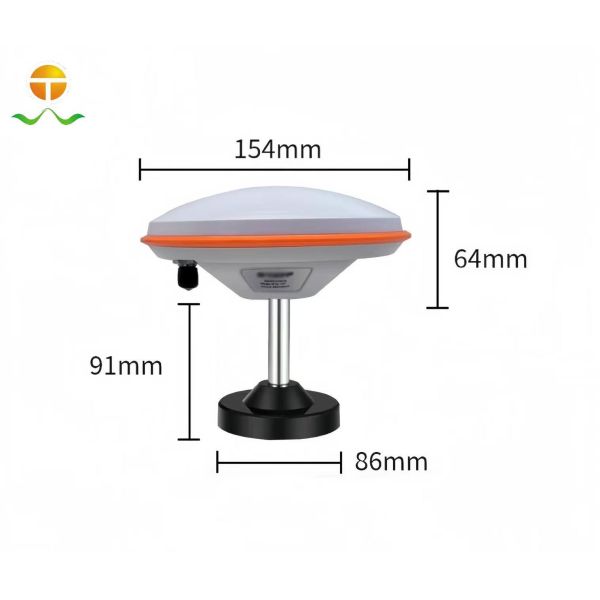

Dimension
See the figure
Connector
TNC
Radome
ABS+PC
Weight
≤16g
Attachment Method
Through the connector
Operating Temp
-40 ℃ ~+85 ℃
Storage Temp
-55 ℃ ~+ 85 ℃
Humidity
95% No-condensing
Waterproof
 IP67
