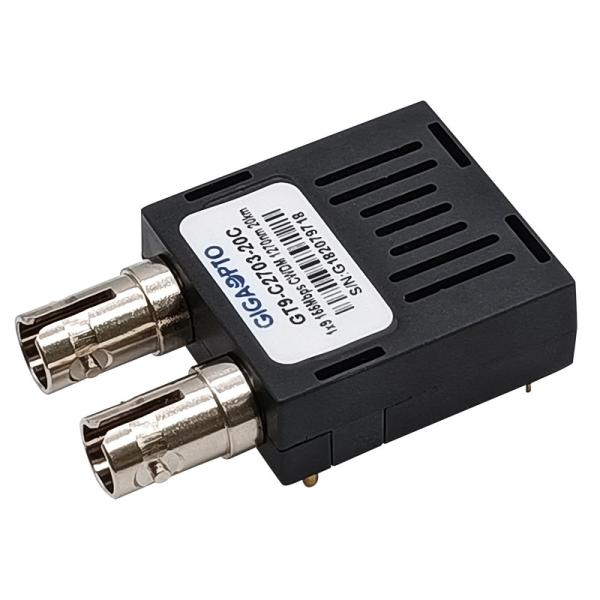

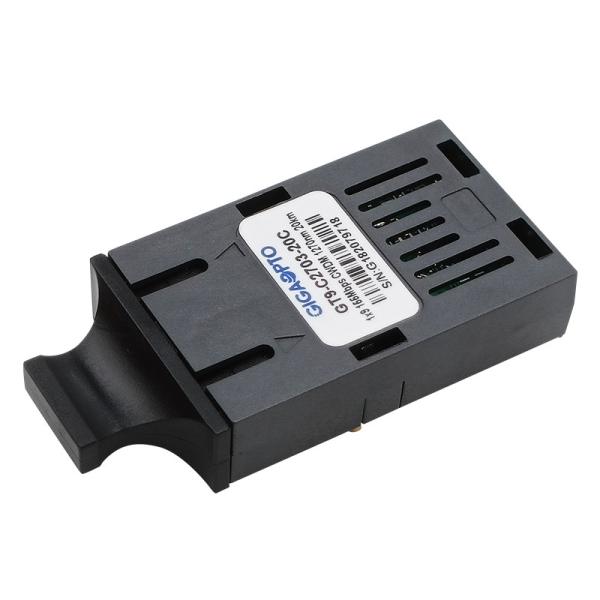

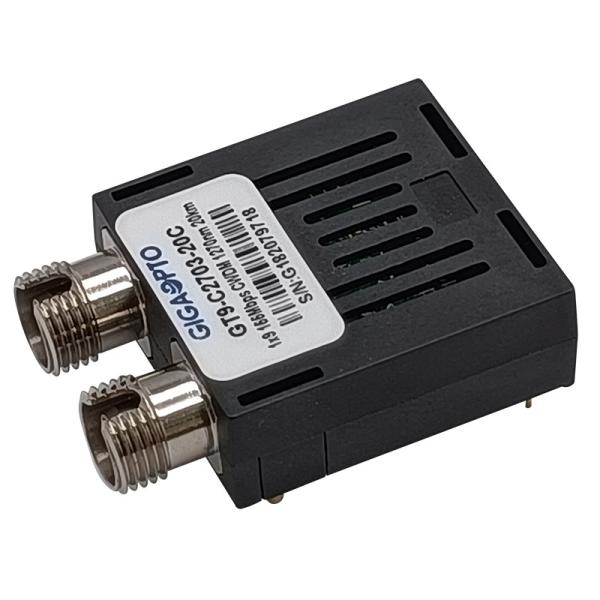

1x9 155Mbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Transceiver Module
1x9 155Mbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Transceiver Module
1x9 155Mbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Transceiver Module
1x9 155Mbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Transceiver Module
1x9 155Mbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Transceiver Module
1x9 155Mbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Transceiver Module
Specifications
Brand Name :
GIGAOPTO
Model Number :
GT9-C2703-20C
Certification :
CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Place of Origin :
Shenzhen, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100,000pcs /month
Delivery Time :
1-5 working days
Packaging Details :
ingle Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Form Type :
1x9 CWDM
Max Data Rate :
155Mb/s
Cable Length :
20km
Center Wavelength :
1270nm to 1610nm
LD Type :
DFB
Interface :
Duplex SC, ST, FC
Media :
Single Mode
Keywords :
1x9 155Mbps CWDM, 20km Optical Transceiver, 1270nm to 1610nm CWDM
Description

155Mbps 1x9 CWDM 1270nm to 1610nm SMF 20km Transceiver Module Duplex SC/ST/FC LVPECL PECL

Description

The GIGAOPTO's GT9-Cxx03-20x series single-mode transceivers are high performance, cost effective CWDM modules compliant with Gigabit Ethernet and Standard of IEEE-802.3. The transceiver series are designed for Fast Ethernet and SDH STM-1/SONET OC-3 application that requires data rate below 155Mb/s.

The 1x9 CWDM transceiver provides high-capacity, high-bis bandwidth communication solutions for multiplexed optical networks. There are eighteen center wavelengths available from 1270nm to 1610nm, each step 20nm. The transmitter uses a highly reliable CWDM DFB Laser and the receiver uses an efficient InGaAs PIN photodiode. The transceiver has excellent immunity and reliability.

Specification

Package 1x9 CWDM Data Link 155Mbps
Optical Connector Duplex SC,FC,ST Distance 20km
DDM No Cable Type Single Mode (SMF)
Warranty 3 years Commercial Temperature 0 to 70°C (32 to 158°F)
Centre Wavelength 1270nm to 1610nm Power Supply Voltage 3.3V or 5V
Soldering Temperature <260°C Storage Temperature -40 to 85°C(-40 to 185°F)
Optical Components DFB Receiver Type PIN
Average Output Power -5 to 0dBm Receiver Sens. <-34dBm
Extinction Ratio >9dB RX Overload >-3dBm
Protocols IEEE802.3z, RoHS

Features

  • Duplex SC/FC/ST Single-Mode Transceiver
  • Industry Standard 1x9 Footprint
  • 18-Wavelength CWDM DFB transmitter from 1270nm to 1610nm, with step 20nm
  • Up to 20km transmission distance
  • 3.3V or 5V single power supply
  • Differential PECL / LVPECL inputs and outputs
  • Compatible with solder and aqueous wash processes
  • Class 1 laser product complies with EN 60825-1
  • RoHS Compliant Products Available
  • Ambient operating temperature: Commercial: 0℃~+70℃, Industrial: -40℃~+85℃

Application

  • ATM 155Mbps Links
  • SONET / SDH Equipment Interconnect
  • Fast Ethernet
  • Switch to Switch Interface
  • Digital video transmission system

Ordering Information

Part Number TX(xx=) Conn. Voltage Temp. Description
GT9-Cxx03-20C

27=1270nm

29=1290nm

31=1310nm

33=1330nm

35=1350nm

37=1370nm

39=1390nm

41=1410nm

43=1430nm

45=1450nm

47=1470nm

49=1490nm

51=1510nm

53=1530nm

55=1550nm

57=1570nm

59=1590nm

61=1610nm

 SC 3.3V/5V 0 to 70°C 1x9 CWDM, 155Mbps, 20km, SMF, SC, 3.3V/5V Commercial Transceiver
GT9-Cxx03-20I SC 3.3V/5V -40 to 85°C 1x9 CWDM, 155Mbps, 20km, SMF, SC, 3.3V/5V Industrial Transceiver
GT9-Cxx03-20C3 SC 3.3V 0 to 70°C 1x9 CWDM, 155Mbps, 20km, SMF, SC, 3.3V Commercial Transceiver
GT9-Cxx03-20I3 SC 3.3V -40 to 85°C 1x9 CWDM, 155Mbps, 20km, SMF, SC, 3.3V Industrial Transceiver
GT9-Cxx03-20C5 SC 5V 0 to 70°C 1x9 CWDM, 155Mbps, 20km, SMF, SC, 5V Commercial Transceiver
GT9-Cxx03-20I5 SC 5V -40 to 85°C 1x9 CWDM, 155Mbps, 20km, SMF, SC, 5V Industrial Transceiver
GT9-Cxx03-20CF FC 3.3V/5V 0 to 70°C 1x9 CWDM, 155Mbps, 20km, SMF, FC, 3.3V/5V Commercial Transceiver
GT9-Cxx03-20IF FC 3.3V/5V -40 to 85°C 1x9 CWDM, 155Mbps, 20km, SMF, FC, 3.3V/5V Industrial Transceiver
GT9-Cxx03-20CF3 FC 3.3V 0 to 70°C 1x9 CWDM, 155Mbps, 20km, SMF, FC, 3.3V Commercial Transceiver
GT9-Cxx03-20IF3 FC 3.3V -40 to 85°C 1x9 CWDM, 155Mbps, 20km, SMF, FC, 3.3V Industrial Transceiver
GT9-Cxx03-20CF5 FC 5V 0 to 70°C 1x9 CWDM, 155Mbps, 20km, SMF, FC, 5V Commercial Transceiver
GT9-Cxx03-20IF5 FC 5V -40 to 85°C 1x9 CWDM, 155Mbps, 20km, SMF, FC, 5V Industrial Transceiver
GT9-Cxx03-20CT ST 3.3V/5V 0 to 70°C 1x9 CWDM, 155Mbps, 20km, SMF, ST, 3.3V/5V Commercial Transceiver
GT9-Cxx03-20IT ST 3.3V/5V -40 to 85°C 1x9 CWDM, 155Mbps, 20km, SMF, ST, 3.3V/5V Industrial Transceiver
GT9-Cxx03-20CT3 ST 3.3V 0 to 70°C 1x9 CWDM, 155Mbps, 20km, SMF, ST, 3.3V Commercial Transceiver
GT9-Cxx03-20IT3 ST 3.3V -40 to 85°C 1x9 CWDM, 155Mbps, 20km, SMF, ST, 3.3V Industrial Transceiver
GT9-Cxx03-20CT5 ST 5V 0 to 70°C 1x9 CWDM, 155Mbps, 20km, SMF, ST, 5V Commercial Transceiver
GT9-Cxx03-20IT5 ST 5V -40 to 85°C 1x9 CWDM, 155Mbps, 20km, SMF, ST, 5V Industrial Transceiver
