Product Name :
1.5G CATV BOSA
Wavelength :
1550nm_TX/1310nm_RX
Data Rate :
1.5Gbps
Operating Temp.(℃) :
0 -75℃ / -40- 85℃
Output Power :
1 mW
Responsivity :
0.8A/W
Description

1.5G CATV WDM BOSA LC receptacle SC ST FC APC Pigtail TX 1550nm RX 1310nm

Features:

  • Coaxial Package
  • InGaAsP/InP MQW-DFB Laser Diode
  • Low threshold, high slope efficiency and high output power
  • Operating Case Temperature: -40℃ to +85℃
  • Single-mode fiber pigtailed with SC FC ST or LC connector
  • High channel isolation
  • Low return loss
  • Optical with Isolator

Applications:

  • Long distance digital transmission system
  • Cable television system
  • WDM systems

Absolute Maximum Ratings

Parameter Symbol Ratings Unit
Storage Temperature Tstg -40~+85 ℃
Operating Case Temperature Top -40~+85 ℃
Operation Relative Humidity 85 %
Forward Current (LD) IFD 150 mA
Monitor PD Reverse Voltage (LD) VrL 2 V
Monitor PD Reverse Voltage (PD) VrP 20 V
Monitor PD Reverse Current (PD) IrP 2 mA
PD Forward Current IFD 10 mA
PD Reverse Voltage Vpd 50 V
Soldering Temperature (<10s) Stemp 260 ℃

Electrical and Optical Characteristics – Transmitter

(If=Ith+20mA, Pf=1mW, SMF (9.5/125µm), Tc=+25+/-2°C, unless otherwise noted.)

Parameter Symbol Condition Min. Typ. Max. Unit
Threshold Current Ith CW — 8 15 mA
Output Power (After coupled) Pf CW, If=Ith+20mA 0.5 1 2 mW
Operating Voltage Vf CW, Tc=-40~+85℃ — — 1.6 V
Slope Efficiency Se CW, Average 0.025 0.05 0.1 mW/mA
Peak Wavelength λp CW 1530 1550 1570 nm
Rise and Fall Time tr,tf

Ib=Ith, PL=1.5mW,

20～80%

 — — 0.15 ns
Monitor Current (PD) Im CW,PL=1.5mW,VRD=1V 100 200 — uA
Dark Current (PD) Id VRD=5V — — 10 nA
Capacitance (PD) Ct VRD=10V, f=1MHz — 10 20 pF
Connector Repeatability — — -1 — 1 dB
Wavelength Isolation — — 15 — — dB

Optical Isolation

 — Single Stage 30 — —

dB
— Dual Stage 40 — —

Electrical / Optical Specifications – Receiver

Parameter Symbol Test Condition Min. Typ. Max. Unit
Detection Wavelength Range λ - 1260 1575 nm
Active Diameter DA - — 75 — μm

Responsivity

R

 VR=-5V@1310nm — 0.80 — A/W
VR=-5V@1550nm — 0.85 — A/W
Return Loss RL — -50 — dB
Dark Current Id VR = 5V — 0.1 1 nA
Capacitance Cp VR = 5V — 0.6 0.7 pF
Bandwidth BW VR=5V 2 — — GHz

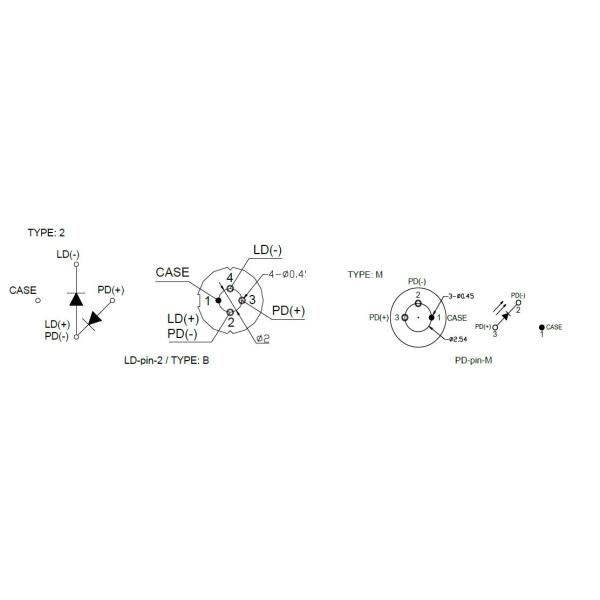

Pin Assignment

1.5G CATV WDM BOSA LC SC ST FC APC Pigtail TX 1550nm RX 1310nm

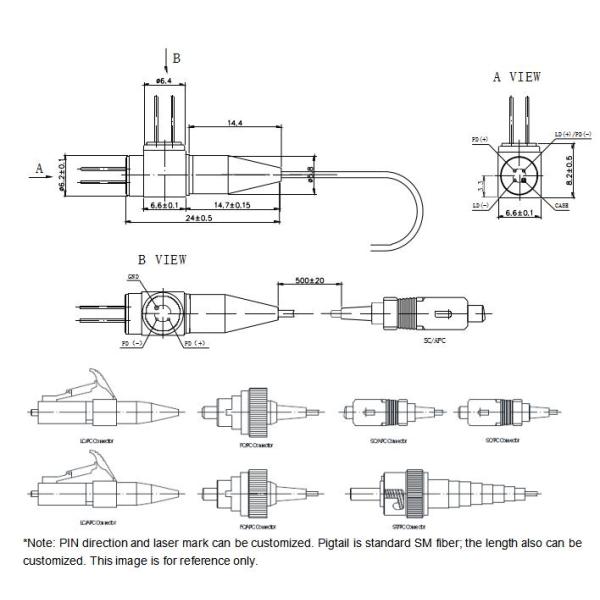

Package Dimension

1.5G CATV WDM BOSA LC SC ST FC APC Pigtail TX 1550nm RX 1310nm
