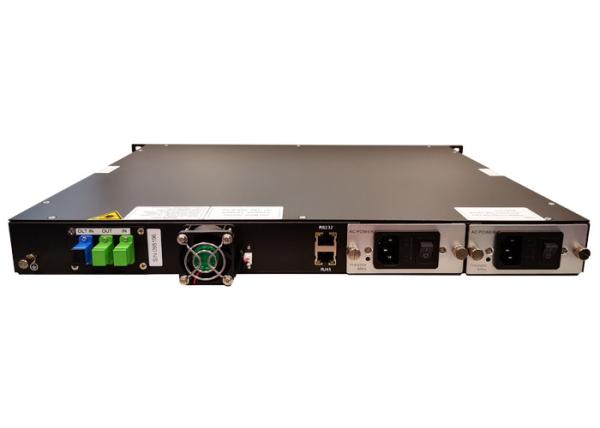

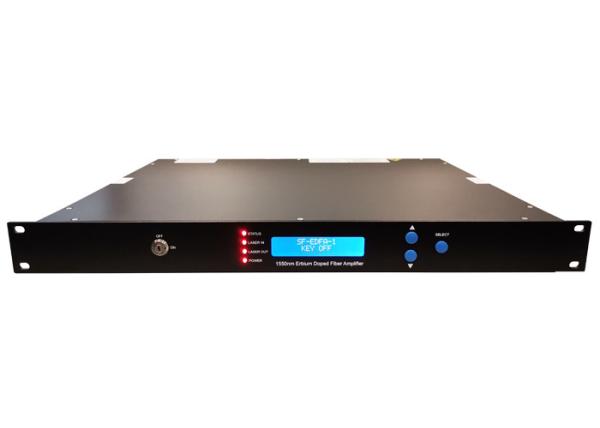

SC/1U EDFA Optical Amplifier GFD1550-EBM 1550nm Single Port Double cooling system
SC/1U EDFA Optical Amplifier GFD1550-EBM 1550nm Single Port Double cooling system
SC/1U EDFA Optical Amplifier GFD1550-EBM 1550nm Single Port Double cooling system
SC/1U EDFA Optical Amplifier GFD1550-EBM 1550nm Single Port Double cooling system
Specifications
Model Number :
GFD1550-EBM(SC/1U) Single Port with WDM
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
T/T, L/C
Delivery Time :
10-15 working days
Packaging Details :
Standard Carton
Height :
1U
Port No. :
1 Port
Optic Power :
Customized
Optic Connector :
CATV In: SC/APC, OLT In: SC/UPC, Mixed Out: SC/APC
Power Supply :
2
NMS :
Web NMS
Description

1550nm EDFA Optical Amplifier GFD1550-EBM(SC/1U) Single ports With WDM xPon OLT Input/ Erbium Doped Fiber Amplifier

● 1 Ports, optical output power customized
● Embedded WDM for xPon OLT application (Optional)
● Double cooling system to protect the pump laser.
● RJ45 Port for Plug-in SNMP system can realize remote management at any time.
● Standard RS232 Port.
● Adopting JDSU, Bookham or Fitel laser.
● LCD displays the parameters, functions and trouble alarm.
● 90-265VAC or -48VDC Switch Power Supply

Specifications:

Output

Power

(dBm)

 25 26 27 28 29 30 31 32 33 34 35 36

Output Power

(mW)

 320 400 500 640 800 1K 1.28K 1.6K 2K 2.56K 3.2K 4K

Input Power

(dBm)

 -3～10

Wavelength

(nm)

 1530～1565

Output Stability

(dB)

 <±0.2

Polarization Sensitivity

(dB)

 <0.2

Polarization

Model

Dispersion

(PS)

 <0.5

Optical

Return Loss

(dB)

 ≥45
Fiber Connector CATV In: SC/APC, OLT In: SC/UPC, Mixed Out: SC/APC
Noise Figure(dB) <5.0(0dBm Input)
Network Management Port RJ45(SNMP),RS232

Power Consumption

(W)

 50～100
Working Voltage (V) 220VAC(90～265),-48DCV
Working Temp(℃) -20～85
Size (mm) 19" , 1U
